Procedure for Altering the track width
The track width of the sprayer can be altered by sliding the axle according to the table above:
• Loosen bolts (1) and clamping screws (2)
• Measure the current track width (centre of right tyre to centre of left tyre). Each side must be extended or retracted half
the desired alteration.
• Extend or retract the wheel axle by acting on the adjustable rod (3)
• Adjust the steering rod. Replace it if necessary.
÷
NOTE! Check that the track adjustment is identical on both sides of the machine.
Tyres inflate pressure
• Check the tyres pressure. See section “Inflation Pressure” page 212
Tightening lug nuts
See section “Tightening lug nuts” page 158

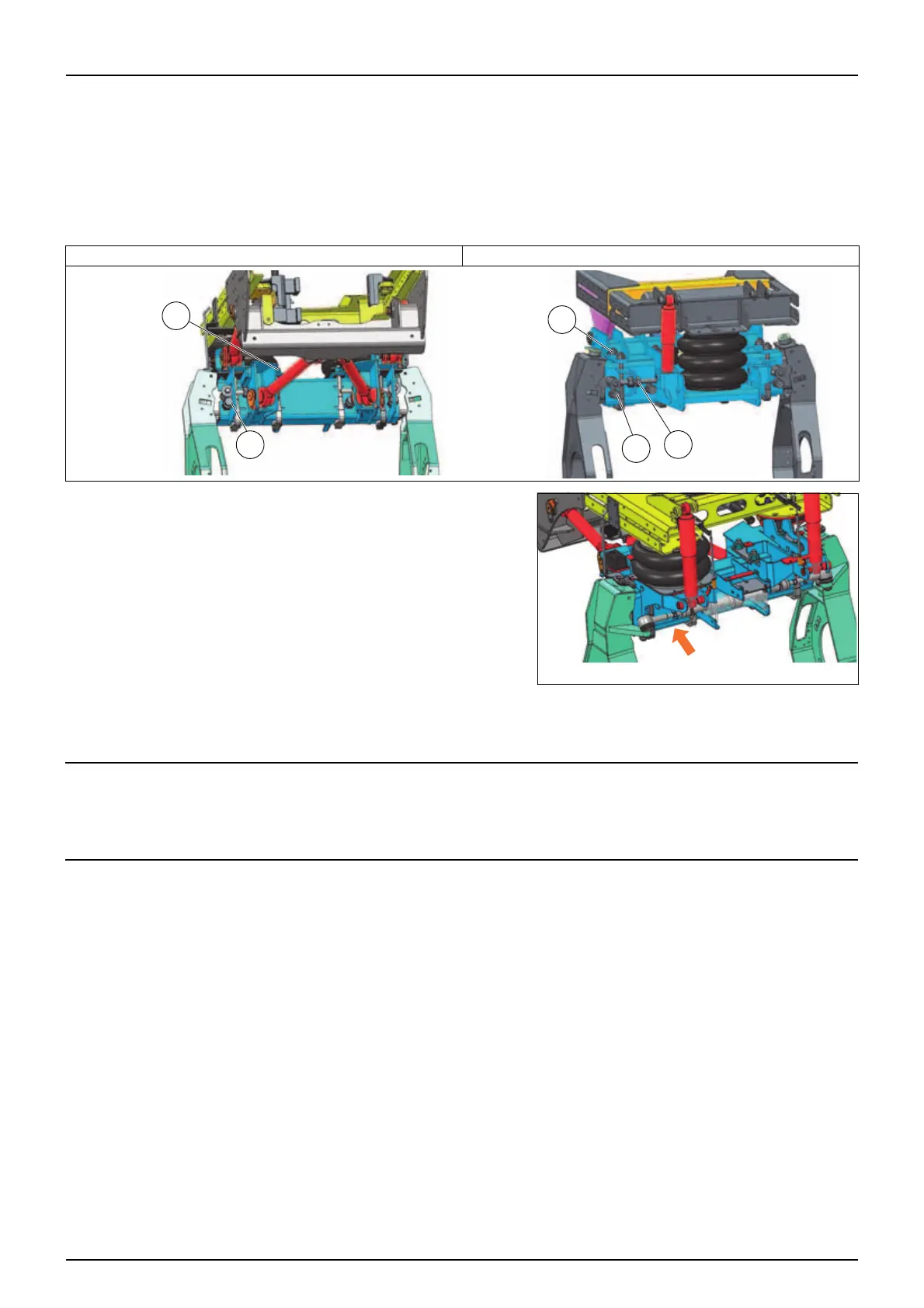

Front Axle Rear Axle
To Next Page
