Hardi ALPHA EVO II EcoDrive User Manual

7 - Repair
193
Errors Messages
Transmission errors

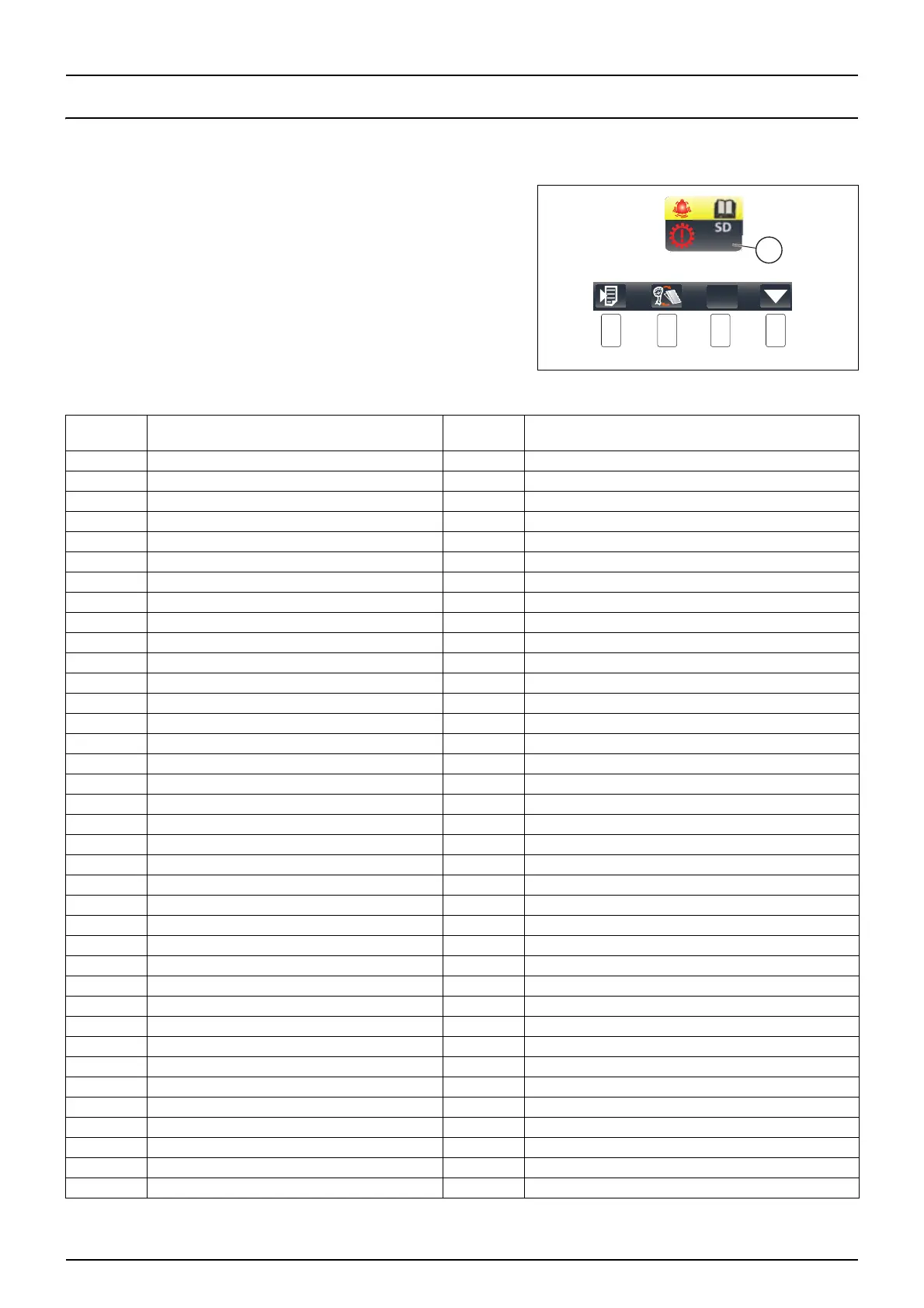

When an operating error appears in the hydraulic transmission the an icon is displayed on the screen
Table of SD error code
Error
Codes
Description Error
Codes
Description
001 Low battery voltage
002 Low battery voltage
003 12V sensor low supply voltage
004 12V sensor high supply voltage
005 5V sensor low supply voltage
006 5V sensor high supply voltage 200 SAPE SD: high battery voltage
007 Stack overflow 201 SAPE SD: low battery voltage
008 E2prom memory error 202 SAPE SD: 12V supply voltage sensor out of range
009 FLASH memory error 203 SAPE SD: 5V supply voltage sensor out of range
010 RS232 memory error 204 SD SAPE : E2prom
011 CAN bus connection error
012 Current return protection 200 SmartDrive Auto Slave error - Regulation PWM 1
020 to 045 Internal system error 201 SmartDrive Auto Slave error - Régulation PWM 2
051 MAF loading error 202 SmartDrive Auto Slave error - Régulation PWM 3
052 Inconsistent key 203 SmartDrive Auto Slave error - Régulation PWM 4
053 Inconsistent MAF 206 SmartDrive Auto Slave error - Voltage battery too low
054 Inconsistent input/output 207 Erreur sur le SmartDrive Auto Esclave - Voltage battery too high
055 Error in sensitive parameter 156 Selector mode error. 2 modes engaged simultaneously
056 SDPHASE code error 172 Transfer function error : non-increasing curve
057 Checksum error 184 Steering CAN bus error
058 Min/Max error in parameter 197 Configuration error of the system
59 Unit not compatible 204 SmartDrive Auto Slave error - Régulation PWM 5
61 Difference between entre RAM and EEPROM 205 SmartDrive Auto Slave error - Régulation PWM 6
070 Loop error 208 SmartDrive Auto Slave error - Voltage battery too low
071 PWM2 current loop error 209 SmartDrive Auto Slave error - Voltage battery too high
72 PWM3 current loop error 210 SmartDrive Auto Slave error - 5 VDC sensor too low
73 PWM4 current loop error
211 SmartDrive Auto Save error -T5 VDC sensor too high
080 Brake pressure sensor signal out of range 212 SmartDrive Auto Slave error- Current return protection
083 CAN bus communication error: signal not received 235 SD SAPE : communication CAN bus
084 High pressure sensor signal out of range 236 SD SAPE : battery voltage too high
85 SmarDrive Auto error ’’slave’’’’ : Configuration 237 SD SAPE : battery voltage too low
91 Pédal error signal - Translation 238 SD SAPE : 12 V supply voltage sensor out of range
92 Joystick sensor error 239 SD SAPE : 5 V supply voltage sensor out of range
97 Selector mode error 240 SD SAPE : memory error
102 Tranmission overheating error 241 SD SAPE : DAC valve error
115 Communication CAN bus with the engine error 242 SD SAPE : I2C bus error
124 CAN error from the display. Missing signal 243 SD SAPE : CAN bus communication error
