5 - Operation
118

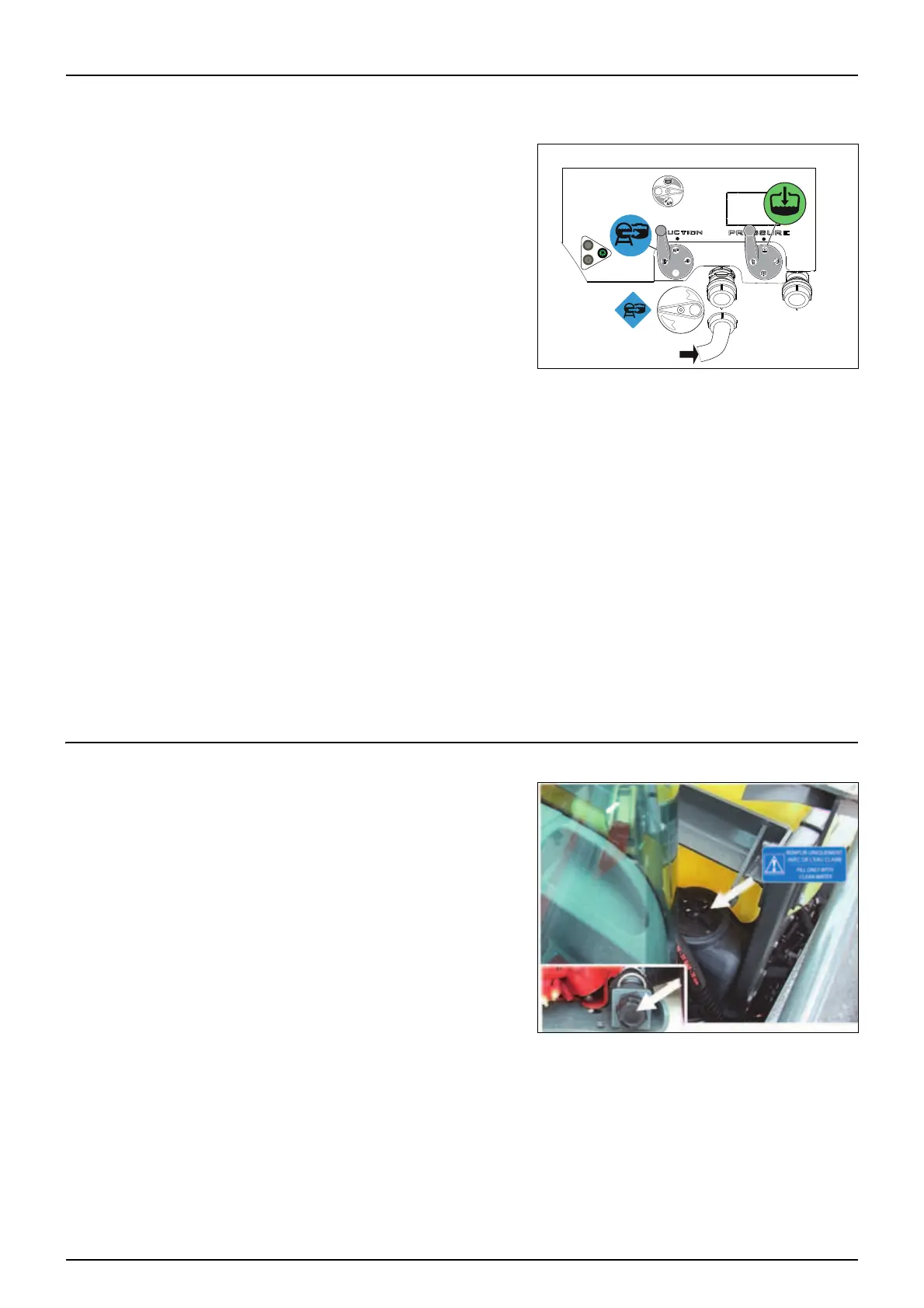

External Filling Device
The External Filling Device is operated as follows:
1. Remove cover and connect suction hose to the suction manifold.
2. Turn pressure Smartvalve to ’’Main tank’’’
3. Turn handle on External Filling Device valve towards Filling Device
4. Engage the pump and set PTO revolutions at max. 540 r.p.m.
5. The tank is now filled with water. keep an eye on the liquid level
indicator
6. Turn handle on suction manifold away from Filling Device to
discontinue filling process. Now disengage the pump.
7. Disconnect suction hose and replace cover
€
DANGER! Prevent contamination or injury. Do not open suction valve towards Filling Device, unless the pump is
running and the filling hose is connected. If this valve is opened without the pump running, liquid will stream out of
the coupler.
±
WARNING! Do not leave the sprayer while filling the tank, and keep an eye on the level indicator in order NOT to
overfill the tank.
±
WARNING! If suction hose/filter is carried on the sprayer during spraying, it can be contaminated by spray drift which
will be transferred to lake/river when filling!
μ
ATTENTION! Observe local legislation regarding use of filling device. In some areas, it is prohibited to fill from open
water reservoirs (lakes, rivers etc.). It is strongly recommended only to fill from closed reservoirs (mobile water tanks
etc.) to prevent contamination.
Filling of Rinsing Tank
The rinsing tank is filled via the 1’’ threaded connection piece (1)
1. Remove the filler cap, then fit the external water hose to the
threaded connection piece
2. Engage external water, if any
3. keep an eye on the level in order not to overfill the tank
4. Stop filling and refit the cap
Volume approximate 600 litres
μ
ATTENTION! Only fill rinsing tank with clean water! To avoid algae developing in the rinsing tank, always drain this
tank, if the sprayer is not in use for a longer period of time.
μ
For cleaning and inspection purposes, the rinsing tank is accessible via the tank on top of the tank
