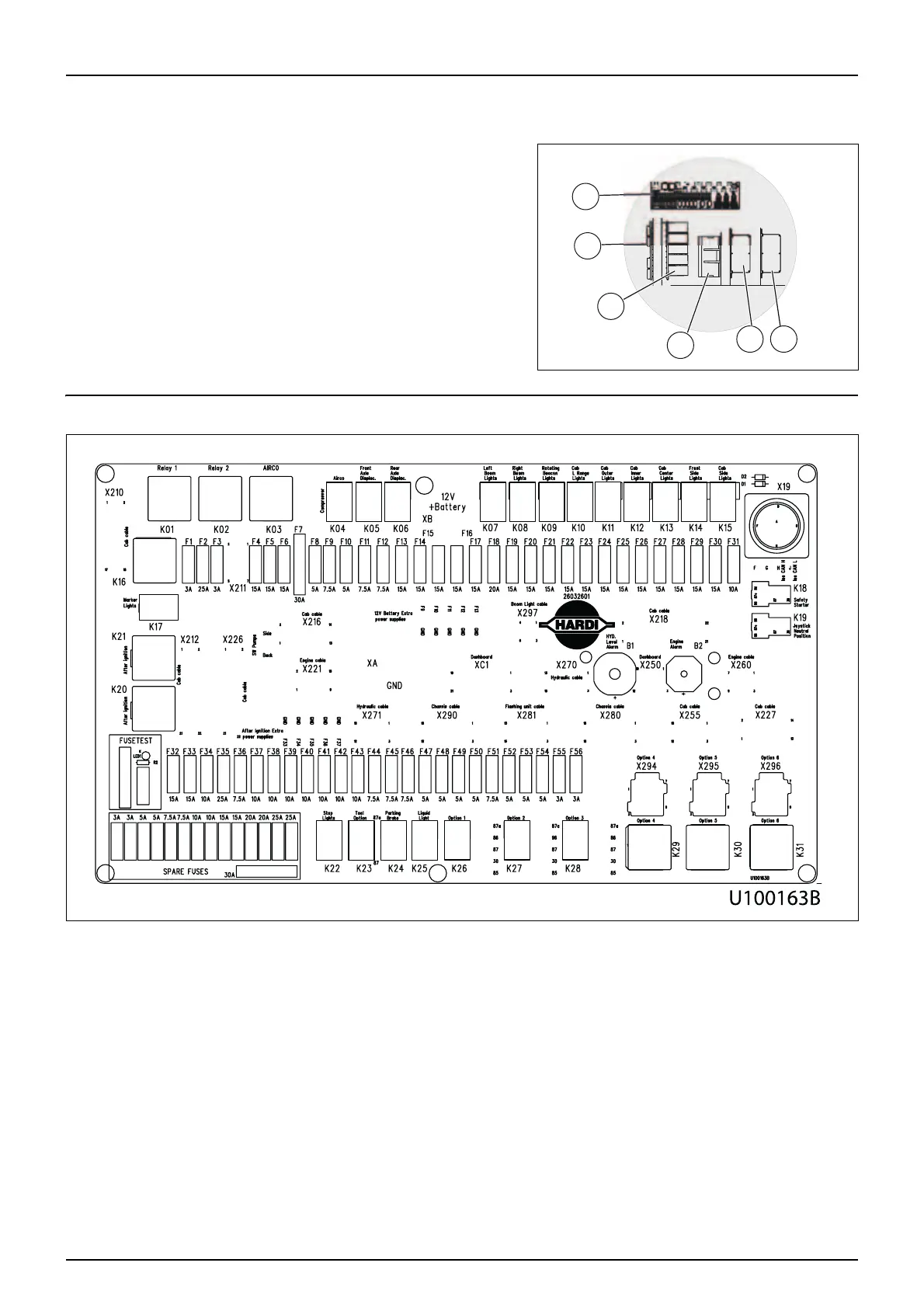

7 - Repair
200
Location of main components
The main control unit are located in the cab under the driver’seat.
Main circuit fuses and relays.
1. Main circuit fuses and relays.
2. Retractable gangway control system.
3. 4-wheel drive control system (4RD version).
4. Flashing indicator unit.
5. Hydraulic controller (master).
6. Hydraulic controller (extended).
65
3
4
2
1
