Hardi ALPHA EVO II EcoDrive User Manual

5 - Operation
112

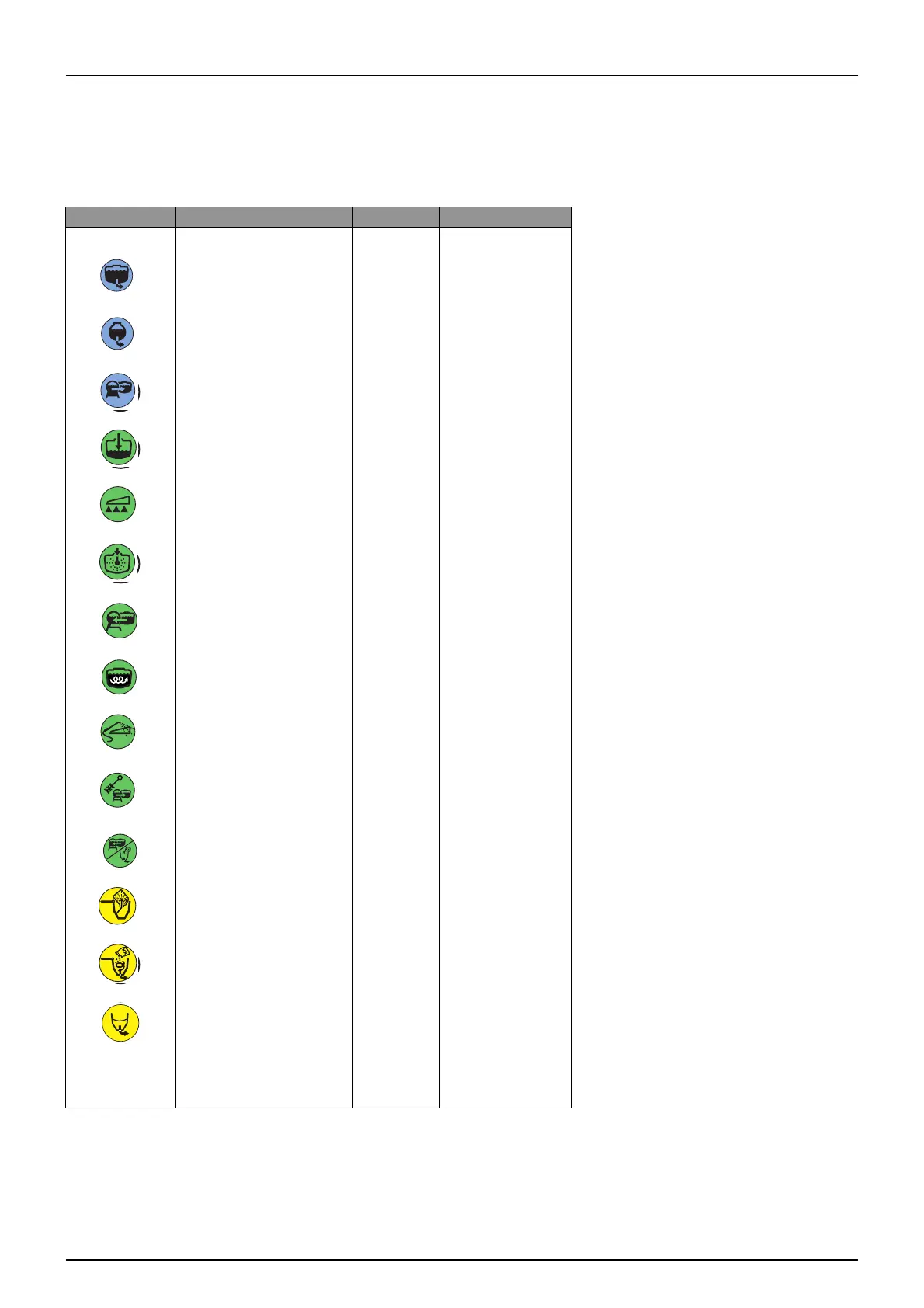

Symbols for Valves
The following symbols are shown on labels on the sprayer, where the operator can set a valve to stop or start a function.
The labels must be readable when operating the sprayer. Damaged or unreadable labels must be replaced.
The symbols are explained here.
Symbol on label Symbol description Label color HARDI item number
Suction from main tank Black / Blue 97809900
Suction from Rinse Tank Black / Blue 97810000
Filling of main tank from external
tank
Black / Blue 97810100
Filling of main tank Black / Green 97810300
Spraying / Pressurized nozzles Black / Green 97810400
Cleaning of main tank inside Black / Green 97810500
Pressure emptying of main tank
to external tank
Black / Green 97810600
Agitation in main tank Black / Green 97810900
External cleaning Black / Green 97811000
Flushing of external filling Black / Green 97826900
Pressure emptying of main tank
and TurboFiller to external tank
Black / Green 97825500
Cleaning of empty chemical
containers
Black / Yellow 97821600
Agitation in TurboFiller Black / Yellow 97821500
Filling of main tank from
TurboFiller
Black / Yellow 97821400
