ContentServer 3000
10-Gigabit Ethernet Add-in Card LED
The two LEDs on the 10 Gigabit Ethernet add-in card indicate connection and network activity for
the right and left connector respectively. See Figure 8–27 and Table 8–26 for details.
NOTE: The left LED is not readily visible when viewing the rear panel.

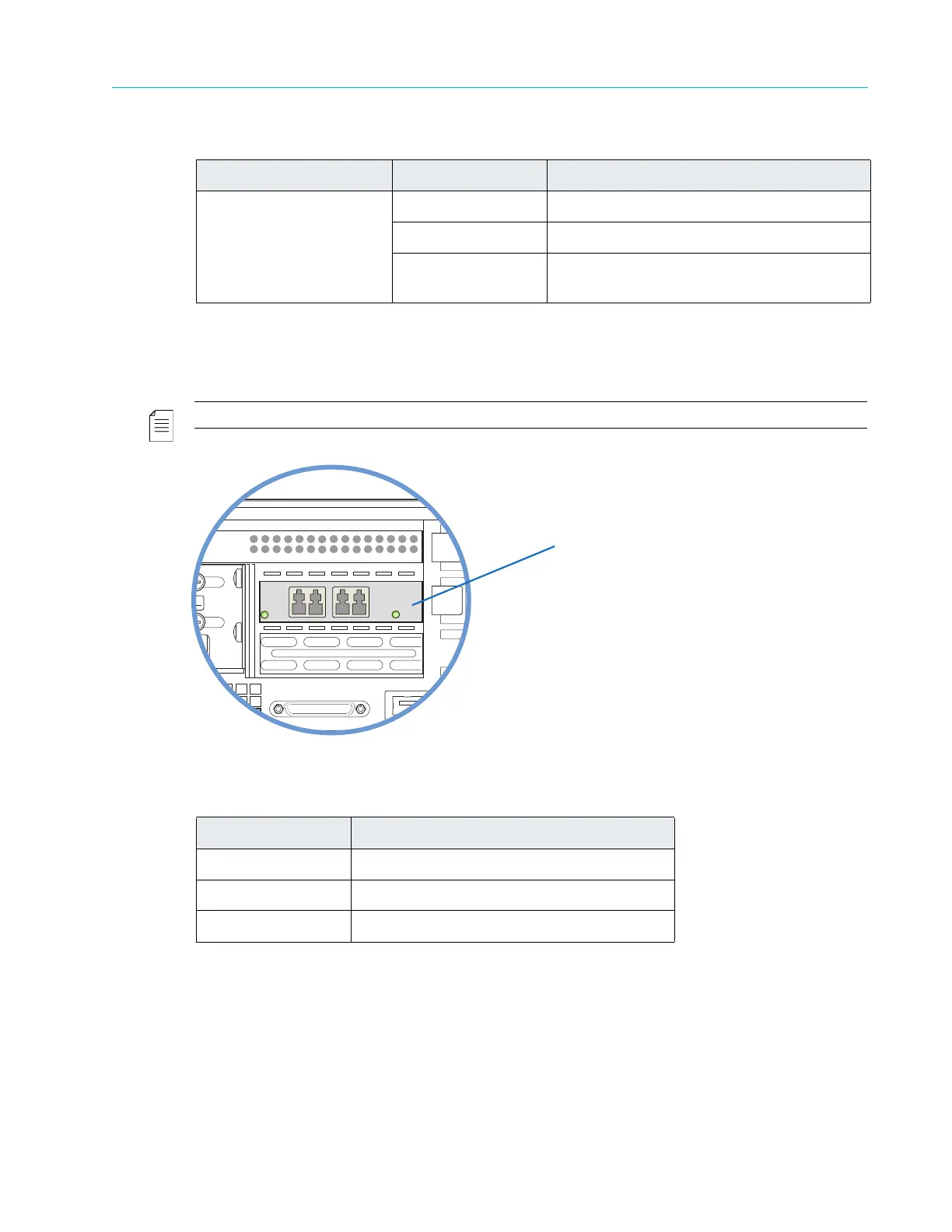

Figure 8–27: 10 Gigabit Ethernet Add-in Card LEDs
Activity (left) Off Power off, network cables unplugged
Green (solid) Power on, active connection
Green (blink) Power on, network data being sent or
rec
eived
Table 8–26: 10 Gigabit Ethernet Add-in Card status LED
LED State NIC State
Off Power off, network cable unplugged
Green (solid) Active connection at 10 Gb/s.
Green (blink) Network data being sent or received.
Table 8–25: Gigabit Ethernet Add-in Card status LEDs
LED LED State NIC State
2 x 10 GbE
Add-in Card LEDs
