Appendix A Legacy Hardware Platforms
© 2017 Harmonic Inc. All rights reserved. 326 Harmonic MediaGrid Release 4.1
ContentBridge 2010E

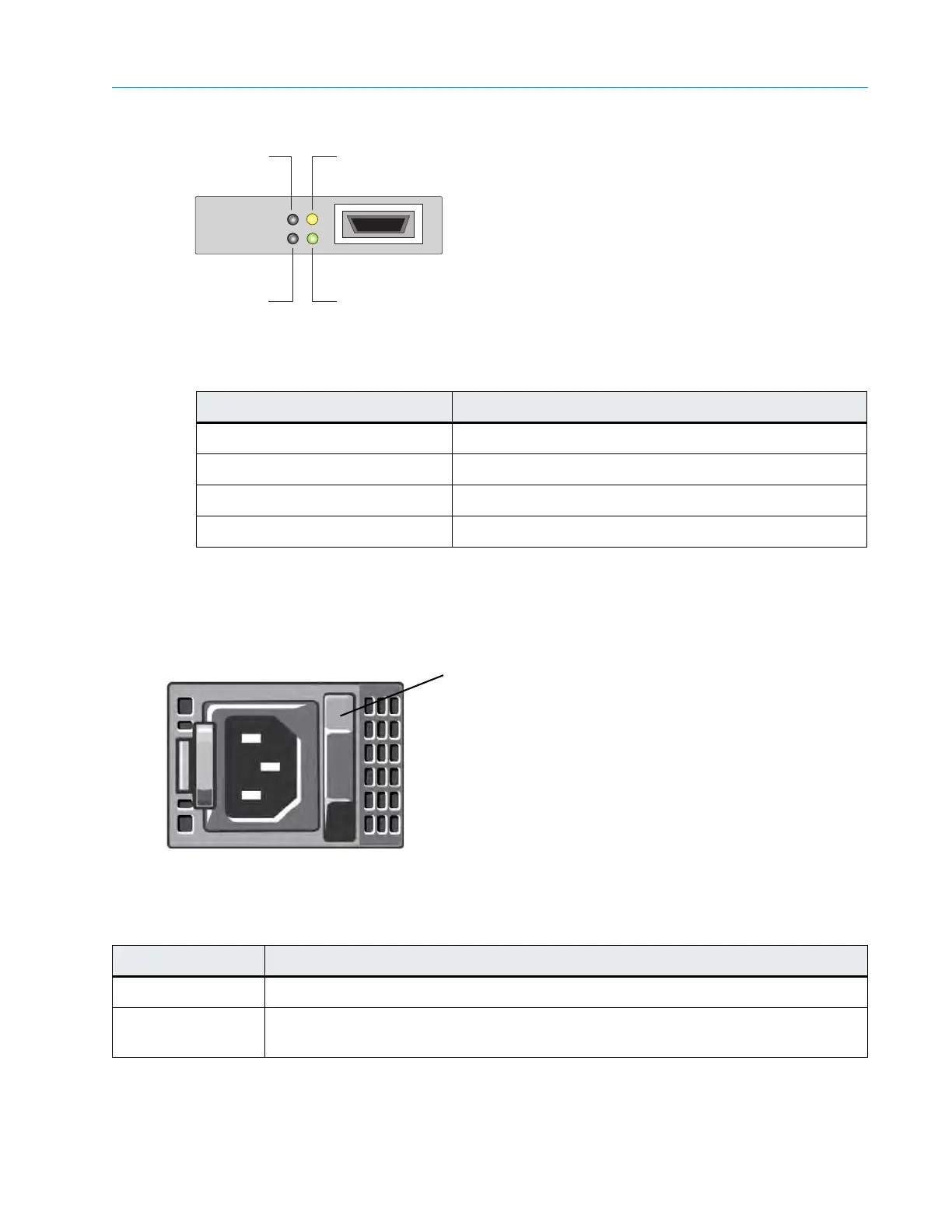

Figure 9–14: 10 Gigabit Ethernet LEDs
Table 9–15: 10 Gigabit Ethernet LED Pattern
Power Supply LEDs
Figure 9–15 and Table 9–16describe the Power Supply Indicator/Handle and its functions.
.
Figure 9–15: ContentBridge 2010E Power Supply Indicator/Handle
Table 9–16: Power Supply Indicator Pattern
Indicator Pattern Condition
Off Power off or network cables unplugged
Green Port enabled and receiving link indication
Yellow (two short blinks) Network activity occurring
Yellow (solid, continuous blinking) Some abnormal condition
Indicator Pattern Condition
Not lit AC power is not connected.
Green The handle indicator lights green indicating that
a valid power source is connected to
the power supply and that the power supply is operational.
Receive
Activity
Transmit
Link
Power supply status indicator/handle
