GigE Area Scan Camera User Manual
5

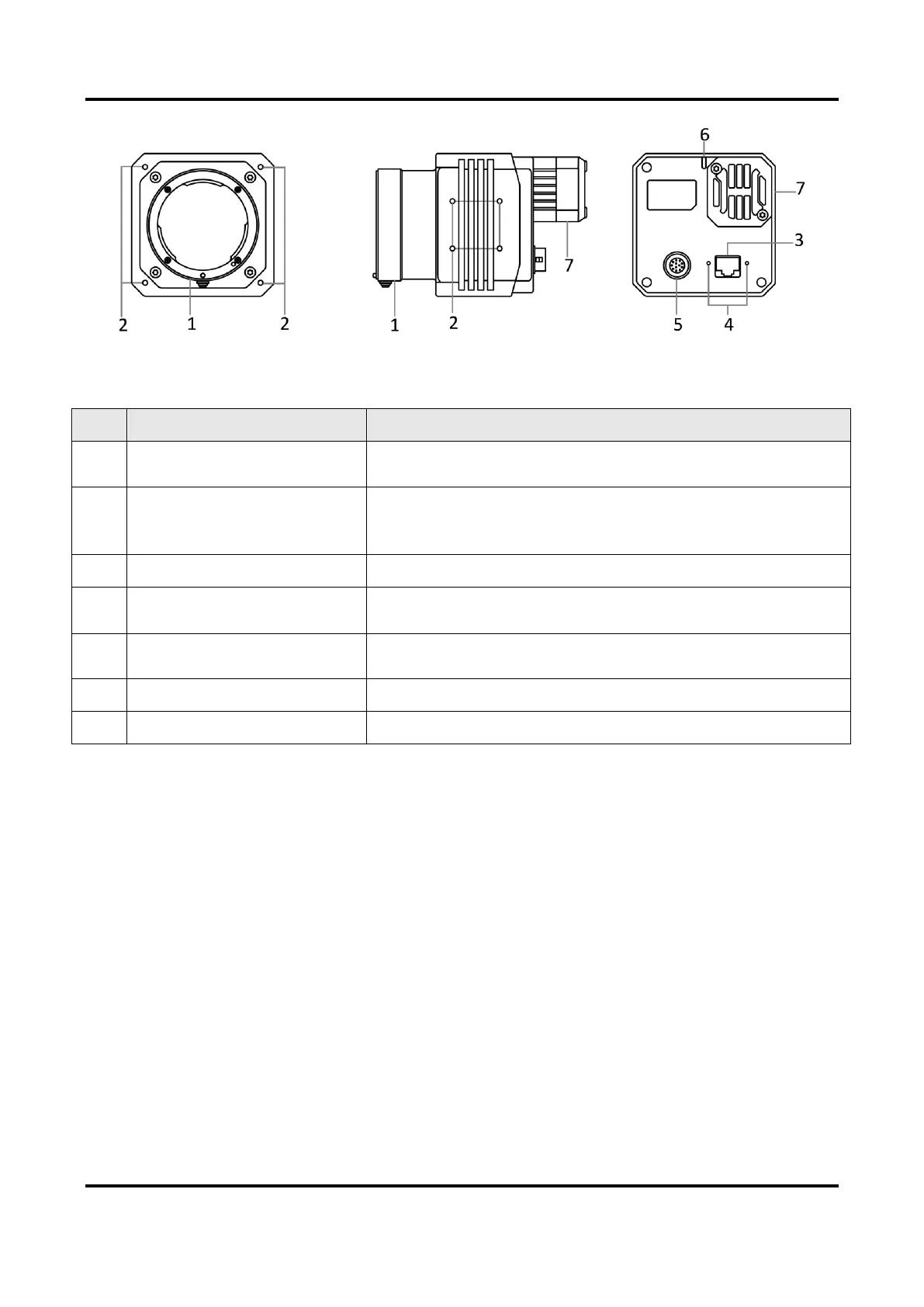

Figure 2-7 Appearance (Type VIII)
Table 2-1 Component Description
No.
Component
Description
1
Lens Mount
It is used to install the lens. Refer to the device’s
specification for specific lens mount information.
2
Screw Hole
It is used to fix the device to the installation position.
Refer to the device’s specification for specific screw
information.
3
GigE Interface
It refers to the GigE interface for transmitting data.
4
Screw Hole of GigE
Interface
It refers to the M2 screw hole for fixing the network
cable.
5
Power and I/O Connector
It provides power supply, input/output signal and serial
port function.
6
LED Indicator
It indicates the device’s status.
7
Cooling Fan
It is used to cool the device.
