8.4.2 Enable External Trigger Mode
Go to Acquisition Control → Trigger Mode, and select On as Trigger Mode.
Note
On refers to the external trigger mode.

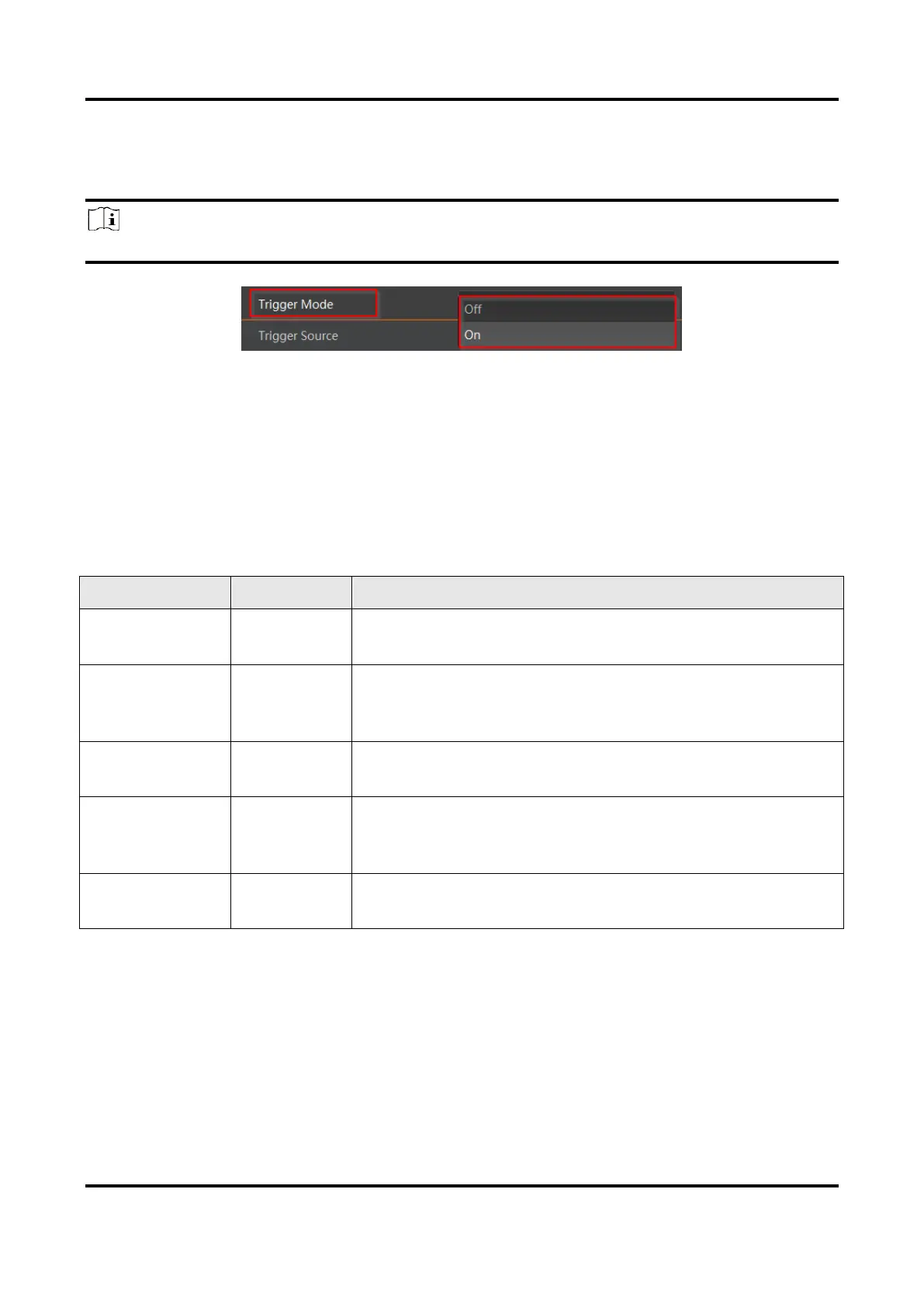

Figure 8-6 Enable External Trigger Mode
8.5 Set Trigger Source
The device’s trigger source includes software trigger, hardware trigger, counter trigger,
action command trigger, and free trigger. Go to Acquisition Control → Trigger Source,
and select Trigger Source according to actual demands.
Table 8-1 Trigger Source Description
Trigger Source
Parameter
Description
Software
Trigger
Software
The software sends trigger signal to the device via GigE
interface to acquire images.
Hardware
Trigger
Line 0, Line
2
External device connects device via device I/O interface.
External device sends trigger signal to device to acquire
images.
Counter Trigger
Counter 0
The counter sends trigger signal to the device to acquire
images.
Action
Command
Trigger
Action 1
The action command sends trigger signal to the device
to acquire images.
Free Trigger
Anyway
The device can receive software trigger and hardware
trigger to acquire images.
