GigE Area Scan Camera User Manual
29

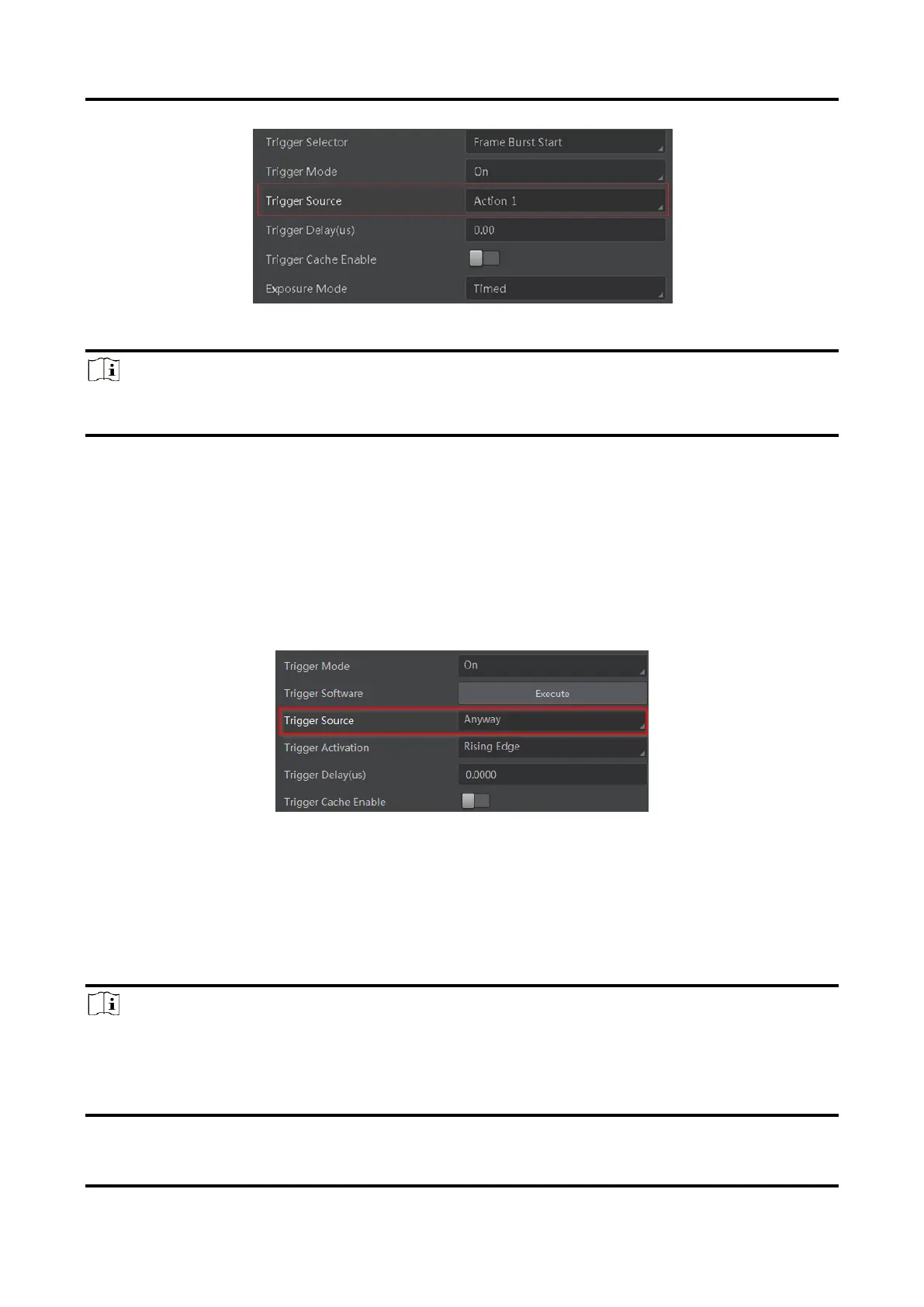

Figure 8-13 Set and Execute Action Command Trigger
Note
For specific function of action commands, please refer to the section Set Action
Command for details.
Set and Execute Free Trigger
In free trigger, the device can receive software trigger and hardware trigger to acquire
images.
Steps
1. Go to Acquisition Control → Trigger Mode, and select On as Trigger Mode.
2. Select Anyway as Trigger Source.
Figure 8-14 Set and Execute Free Trigger
8.6 Set Trigger Related Parameters
In external trigger mode, you can set five related parameters, including acquisition burst
frame count, trigger activation, trigger delay, trigger cache, and trigger debouncer.
Note
●
Different trigger sources can set various parameters in external trigger mode.
●
In hardware, counter or free trigger, you can set all five parameters mentioned above.
●
In software or action command trigger, you can set acquisition burst frame count,
trigger delay, and trigger cache only.
