GigE Area Scan Camera User Manual

7.4.2 Overlap Exposure

Overlap exposure refers to the overlap between the current frame exposure and the

previous frame readout. In other words, when the previous frame starts to read out, the

current frame starts to expose simultaneously, as shown below.

Sensor

Exposure

Exposure 1 Exposure 2 Exposure 3

Frame 1

Readout

Frame 2

Readout

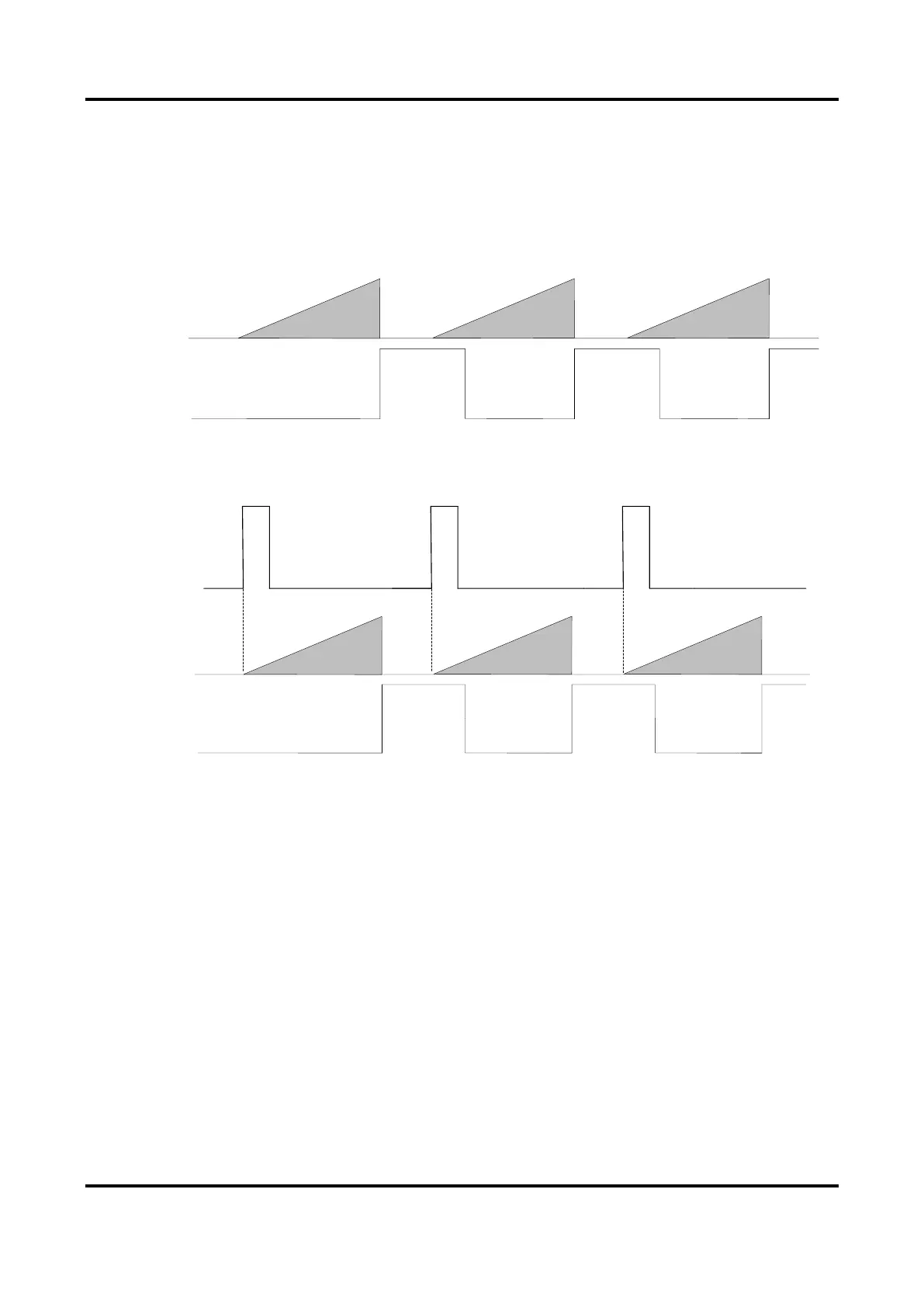

Figure 7-7 Internal Trigger Overlap Exposure

Sensor

Exposure

Exposure 1 Exposure 2 Exposure 3

Trigger_in 1 Trigger_in 2 Trigger_in 3

Frame 1

Readout

Frame 2

Readout

Figure 7-8 External Trigger Overlap Exposure
