Chapter 9 Trigger Output
9.1 Select Output Signal
The device has one opto-isolated output (Line 1), and one bi-directional I/O (Line 2) that
can be configured as output signal. The steps for configuring Line 2 as output signal as
follows.
Steps
1. Go to Digital IO Control and select Line 2 as Line Selector.
2. Select Strobe as Line Mode.

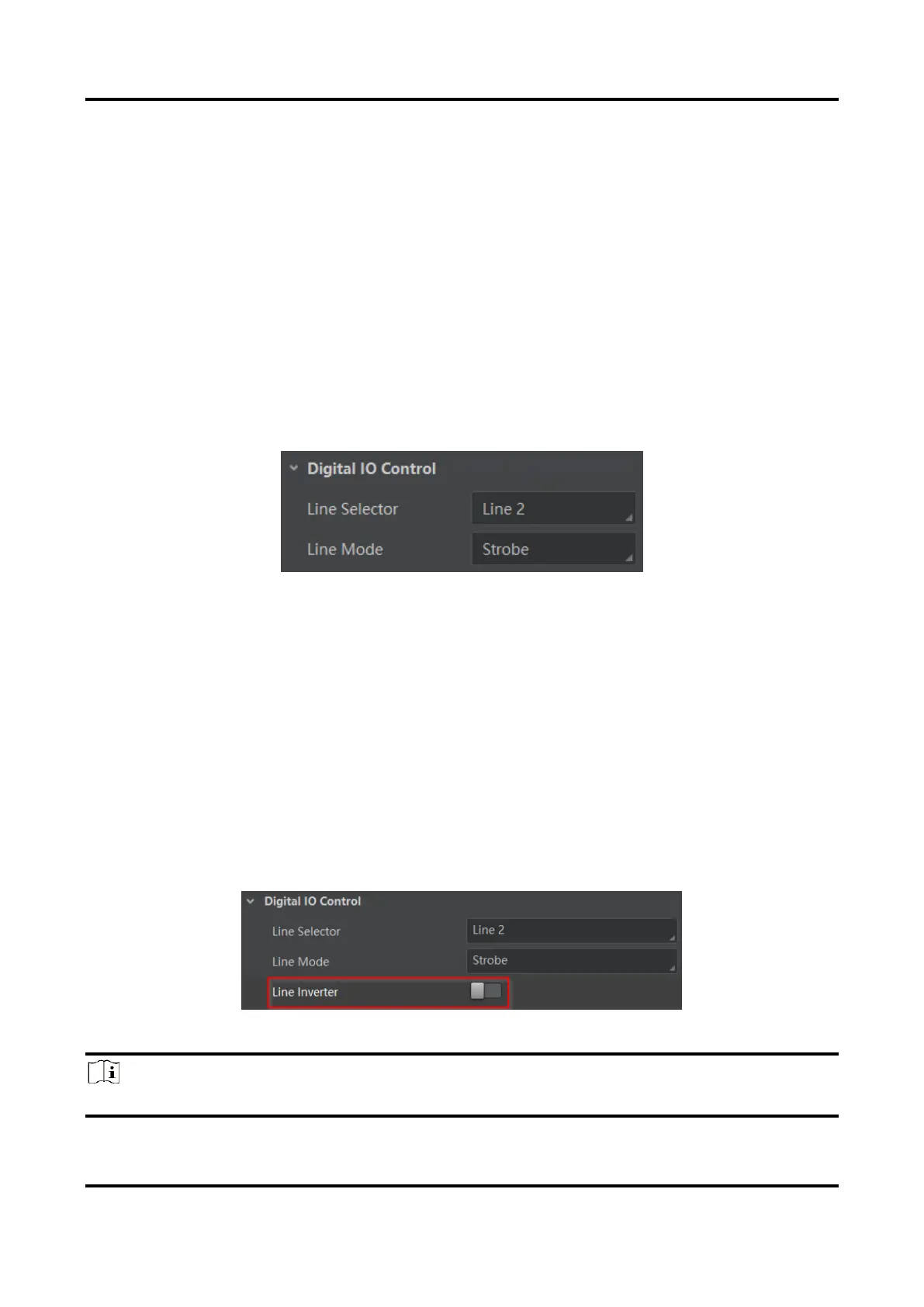

Figure 9-1 Set Line 2 as Output Signal
9.2 Set Output Signal
The output signal of the device is switch signal that can be used to control external
devices such as light source, PLC, etc. There are two ways to set output signal, including
line inverter and strobe signal.
9.2.1 Enable Line Inverter
The line inverter function allows the device to invert the electrical signal level of an I/O line.
Go to Digital IO Control → Line Inverter, and enable it.
Figure 9-2 Enable Line Inverter
Note
The line inverter function is disabled by default.
