GigE Area Scan Camera User Manual

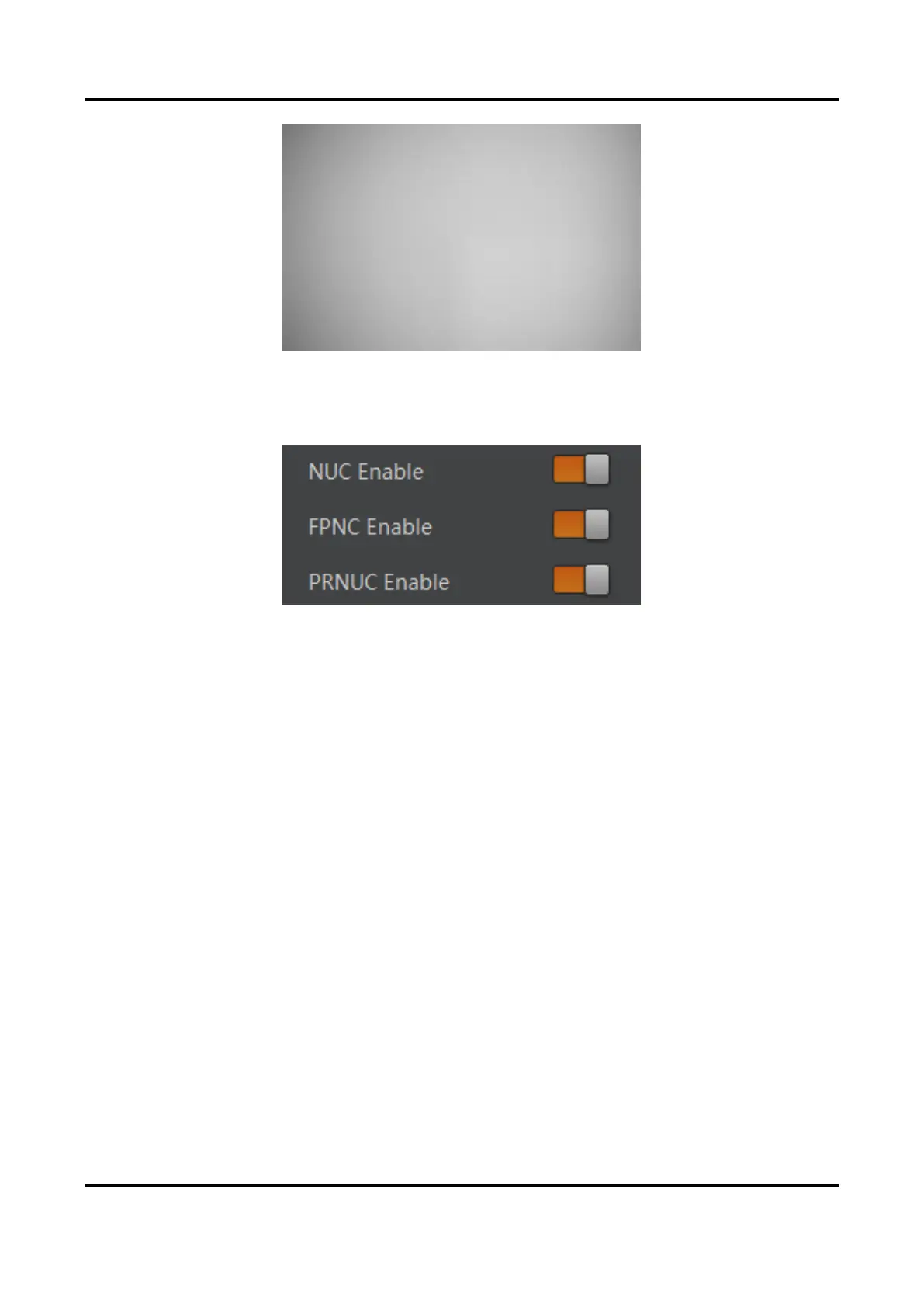

Figure 11-57 After Correction

Go to Shading Correction, and enable NUC Enable. The FPNC Enable and PRNUC Enable

will be automatically enabled or disabled according to the device’s condition.

Figure 11-58 Other Corrections
