B 5231 / H51q-MS (0605)
All rights reserved. Equipment subject to change without notice: 97
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
B 5231 / H51q-MS
B 5231: Assembly Kit / H51q-MS: System
System H51q-M in K 1412B system subrack, 5 HU, 19 inches with single channel central mod-
ule, power supply 24/5 V, power supply monitoring module, I/O bus connection, communica-
tion modules (optional), coprocessor modules (optional) and three fans
TÃœV certified, applicable up to SIL 3 according to IEC 61508

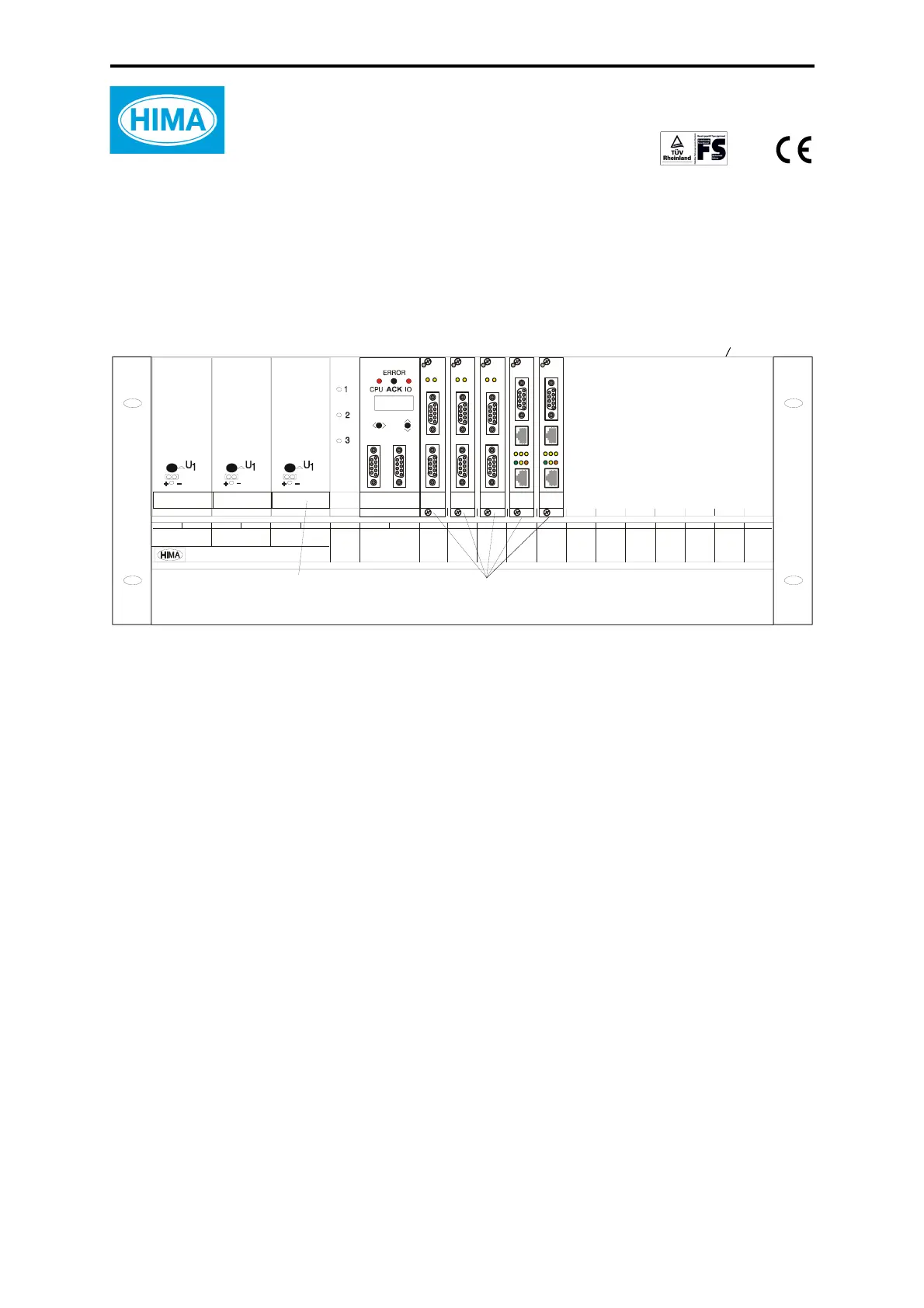

Figure 1: Front view
1 Parts of the B 5231 assembly kit /
H51q-MS system
• 1 x K 1412B central rack, 5 units high, 19 inches, with cable tray with three fan modules
K 9212, hinged receptacle for the label and backplane Z 1001.
• additional modules on the rear
• 3 x Z 6011 decoupling and fusing to feed the power supply modules
• 1 x Z 6018 an run monitoring and fuse monitoring
• 2 x Z 6013 decoupling and fusing of the supply voltage for the WD signal
• 2 x F 7546 bus termination module
includes the modules:
• 2 x F 7126 power supply modules 24 V / 5 V, 10 A (PS1, PS2)
• 1 x F 7131 power supply monitoring module
• 1 x F 8650X central module (CU1)
modules for option (separate order)
• 3 x F 8621A coprocessor modules (CM11 - CM13)
• 5 x communication modules (CM11 - CM15)
• 1 x F 7126 power supply module 24 V / 5 V, 10 A (PS3)
Assembly kits to be used for the I/O level:
• B 9302 I/O subrack 4 units high, 19 inches
• B 9361 additional power supply, 5 VDC, 5 units high, 19 inches
CU1 CB11 CM12 CM13 CM14 CM15
PS1
PS2 PS3
K 1412B
F7126 F7126 F7126
F7131 F8650X F8621A F8621A F8621A
H51q-MS B5231
NG1/PS1 NG2/PS2 NG3/PS3
ZB1/CU1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
OptionOption
HIMA
F8627X
1 2
1
2
1 2
1
2
1 2
1
2
1 2
HIMA
F8621A
HIMA
F8621A
HIMA
F8621A
HIMA
F8627X
HIMA
F8650X
HIMA
F7126
HIMA
F7131
HIMA
F7126
HIMA
F7126
H
S
R
1
0
B
a
s
e
T
H
S
R
TX COL
ERR
FB
RUN
RED
F
B
1
0
B
a
s
e
T
H
S
R
TX COL
ERR
FB
RUN
RED
F
B
