BV 7055 (0509)
All rights reserved. Equipment subje
ct to change without notice:
175
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
BV 7055
BV 7055: Dat
a

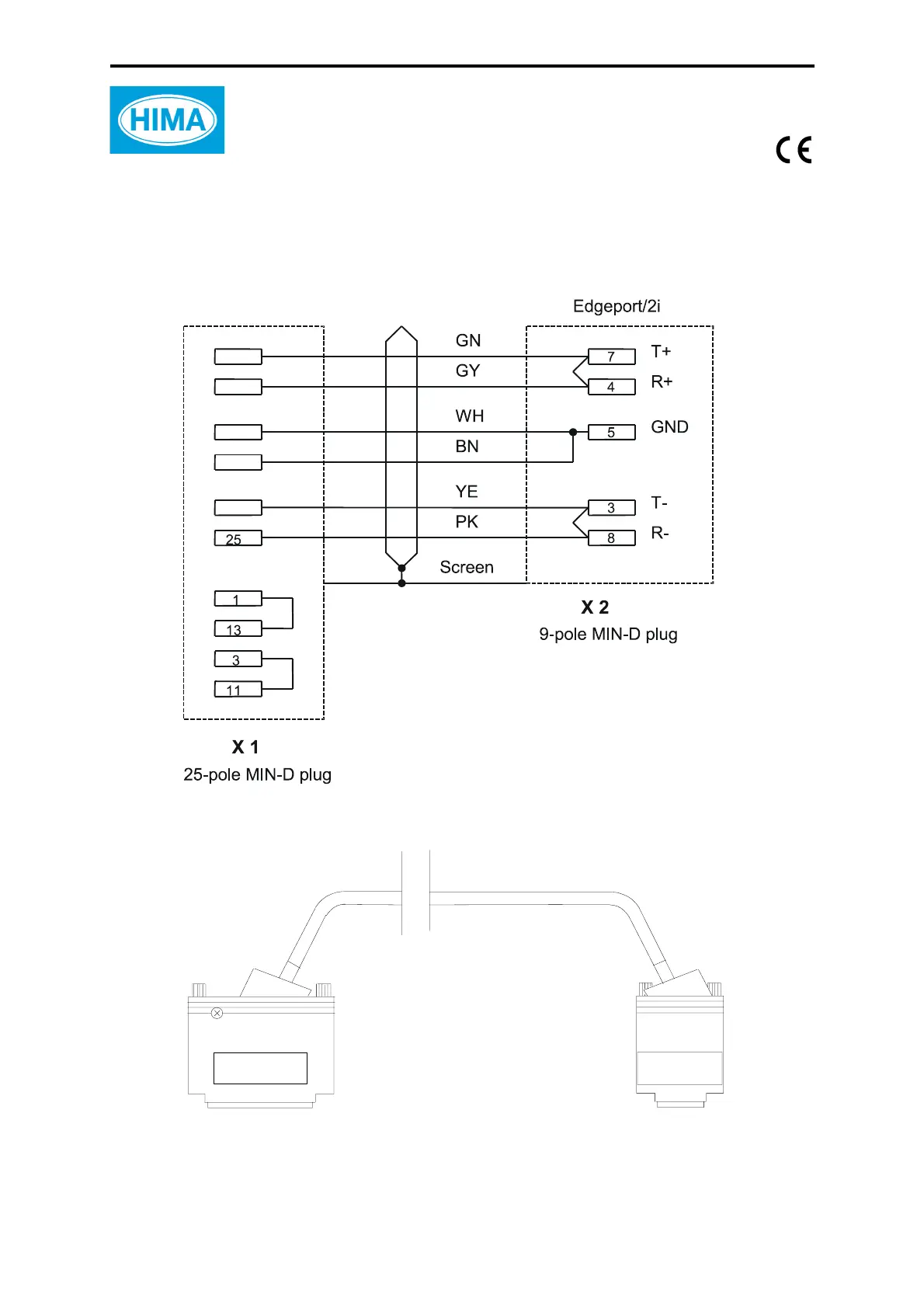

connecting cable
Connection of bus te
rminal H 7506 to converter Edgepor
t/2i (USB / RS 485)
in systems H41q/H51q
Standard lengths: 2 m, 4 m
Figure 1:
W
ir
ing
Type of used cable: LiYCY 3 x 2 x 0.25 mm
2
15
H
7506
23
14
16
24
Edgeport/2i
HIMA
BV7055-X
X
00.wwwwww.xx
x
gepr.
180
182
