HIMA H41q User Manual

F3325 (0622)
All rights reserved. Equipment subject to change without notice: 217
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 3325
F 3325: 6-channel supply unit (Ex)i
• Supply unit, preferably used for the F 6221 module
• Supply of transmitters 0/4...20 mA
EC Type Examination Certificate (ATEX): EX5 02 04 19183 035

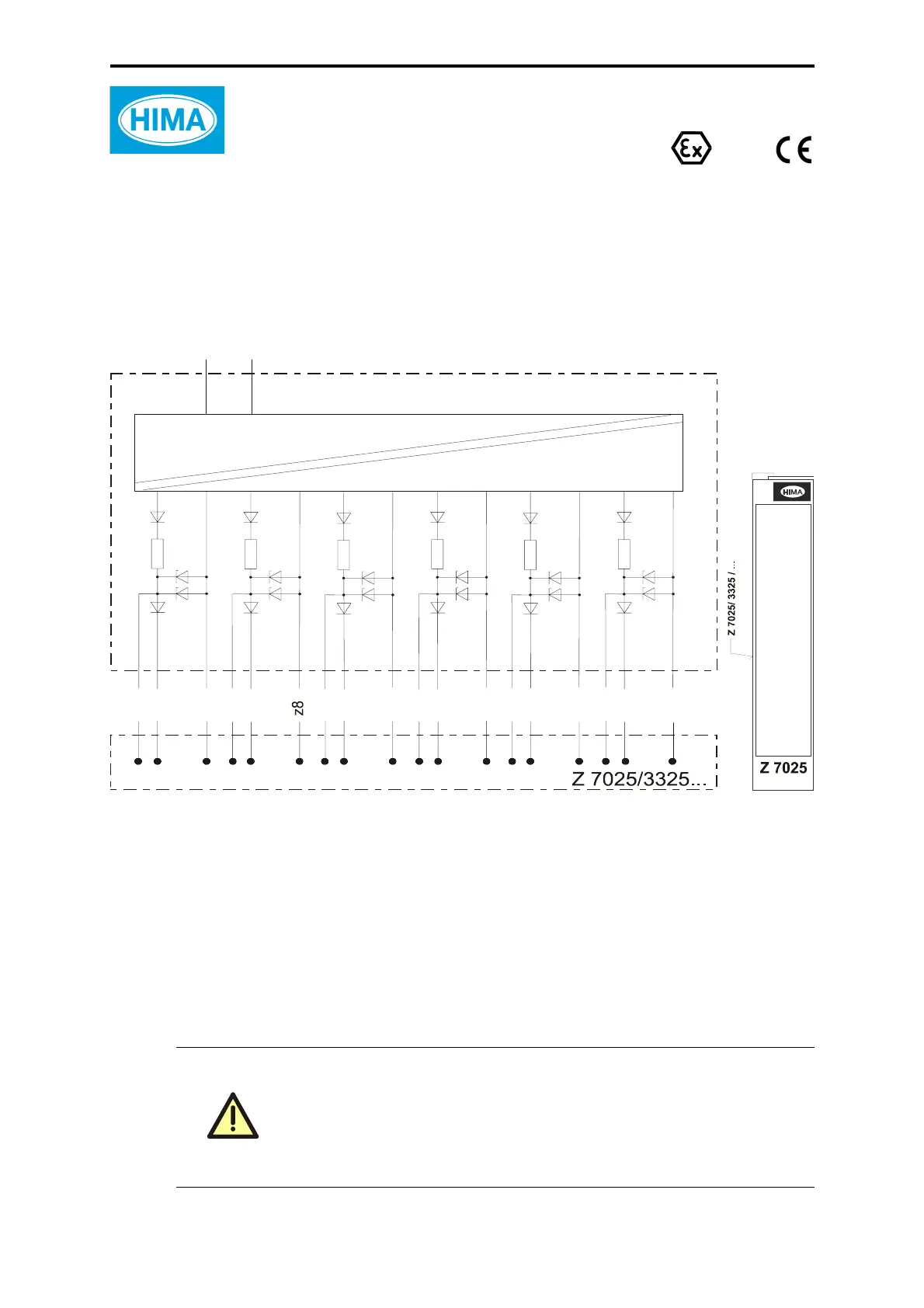

Figure 1: Block diagram and front cable plug
Nominal voltage 19 V at 20 mA load current
No-load voltage 22 V
Short-circuit current 60 mA
Maximum burden 250
Ω
Ex category II (2) GD [EEx ib] IIC
Space requirements 4 SU
Operating data 24 V / 300 mA
The module must only be operated with forced ventilation (fan). The
fan (K 9203) must be installed above the subrack where the F 3325
module is plugged in. If the F 3325 module is operated in an H 41q,
the fan (K 9212) must be installed directly under the F 3325 module.
The pins d6, d26, b6, b26 on the front plug of the F 3325 are omitted
(coding pins on d6, d26, b6, b26).
OR5+ OR4+ OR3+ OR2+ OR1+ O6+ O5+ O4+ O3+ O2+ O1+ O6-/OR6- O5-/OR5- O1-/OR1- O2-/OR2- O3-/OR3- O4-/OR4-
b4 b2 z2 b10 b8 b16 b14 z14 b20 b18 z18 b24 b22 z22 b30 b28 z28
z2
d2
L+
L
-
F3325
OR6+
Front
cable plug
