F 7126 (0507)
All rights reserved. Equipment subject to change without notice: 341
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 7126
F 7126: Power supply module
Input voltage 24 VDC, output voltage 5 VDC
for PES H51q

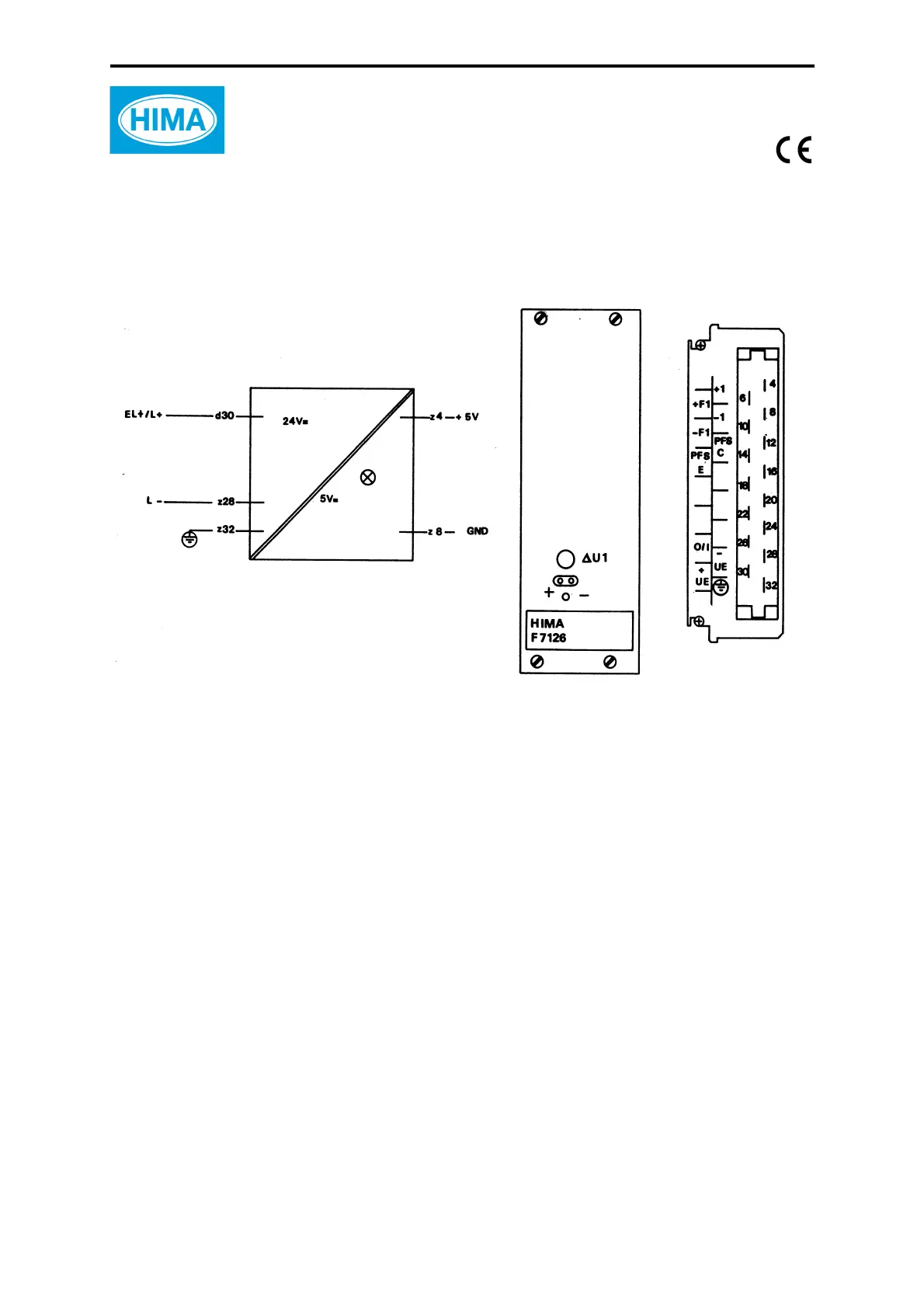

Figure 1: F 7126 power supply module
The module supplies automation systems with 5 VDC from a main supply of 24 VDC. It is a
DC/DC converter with safe isolation between input and output voltage. The module is equipped
with overvoltage protection and current limitation. The output is short-circuit-proof.
To avoid unbalanced load with redundant use of the power supply F 7126 the difference be-
tween their output voltages may not be more than 0.025 V.
On the front plate there are a test socket and a potentiometer for adjusting the output voltage.
The adjustment is only admissible with a suitable measuring instrument of high accuracy.
Operating data 24 VDC, -15...+20 %, r
pp
< 15 %
Primary fuse 6.3 A slow blow
Output voltage 5 VDC
± 0.5 V steplessly adjustable
factory adjustment: 5.4 VDC
± 0.025 V
Output current 10 A
Current limitation approx. 13 A
Overvoltage protection set to 6.5 V /
± 0.5 V
Efficiency rate
≥ 77 %
Interference according to EN 55011 / EN 55022
Space requirement 8 SU
