F 8628X: PROFIBUS-DP slave module
Communication Module for PROFIBUS-DP Communication
Application in H41q/H51q PES (beginning with OS41q/51q V7.0-7 (9906)).
Appertaining Function block: HK-COM-3

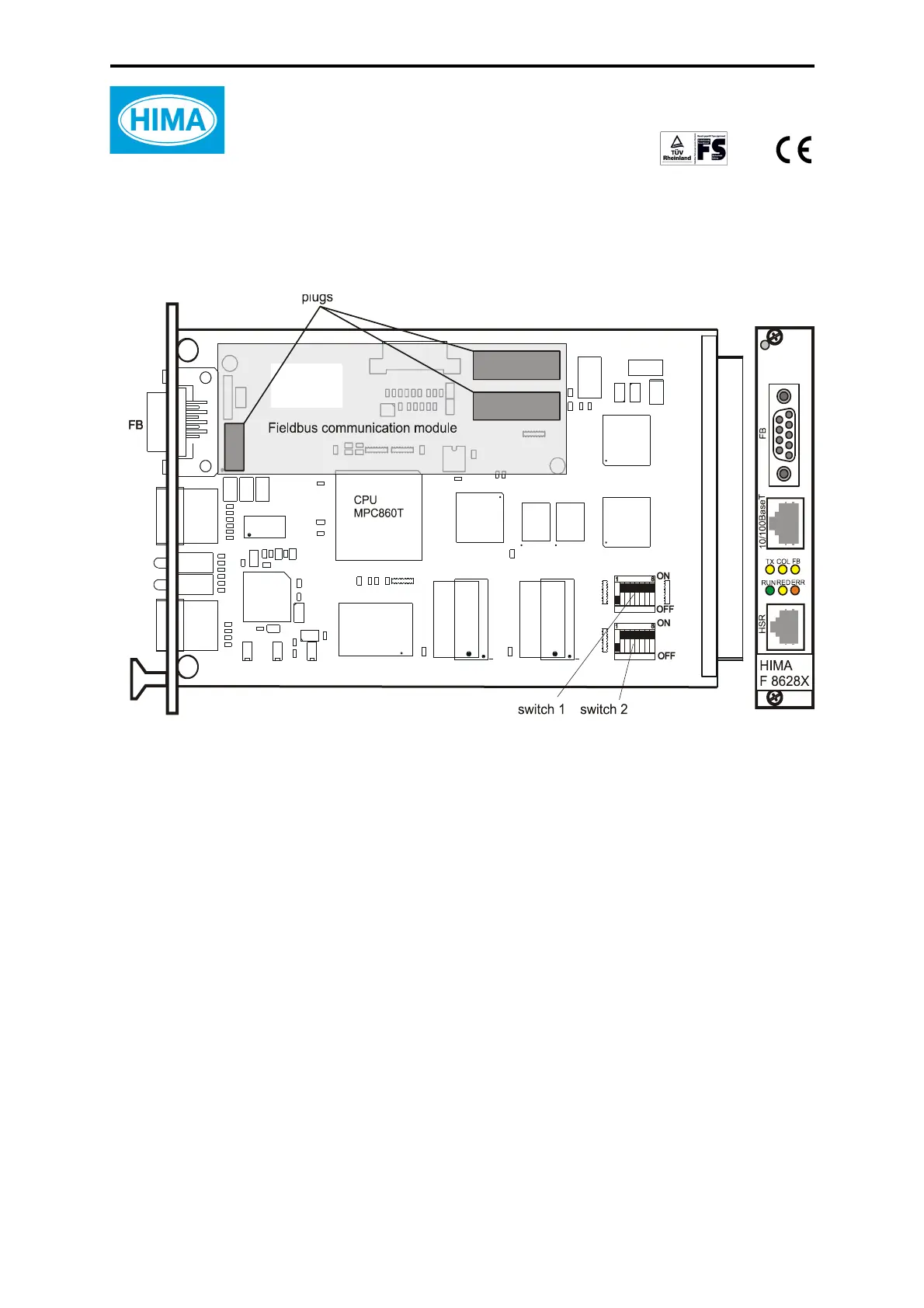

Figure 1: Communication module F 8628X
1 Technical data
Processor 32 Bit Motorola CPU MPC860T with integrated RISC communi-
cation controller
Operating voltage 5 VDC / 1 A
Space required 3 HU (units high), 4 SU (units width)
Serial interface FB With PROFIBUS-DP slave module
Connection via a 9-pole SUB-D plug
Ethernet interface 10Base-T or 100Base-TX according to the IEEE 802.3 stan-
dard, connection via an RJ-45 plug.
HSR interface High-speed serial communication interface to the redundant
HSR (High Speed Redundancy) communication module.
Connection via an RJ-12 plug with BV 7053.
Diagnostic Display 6 LEDs for display diagnostic during operation
DIP switches 2 DIP switches for setting the module functions
