F 3422 (0524)
All rights reserved. Equipment subject to change without notice: 259
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 3422
F 3422: 8-channel relay module
• Switching voltage 60 VDC/AC
• with safety isolation
• solid state output (open collector) for LED display in the cable plug

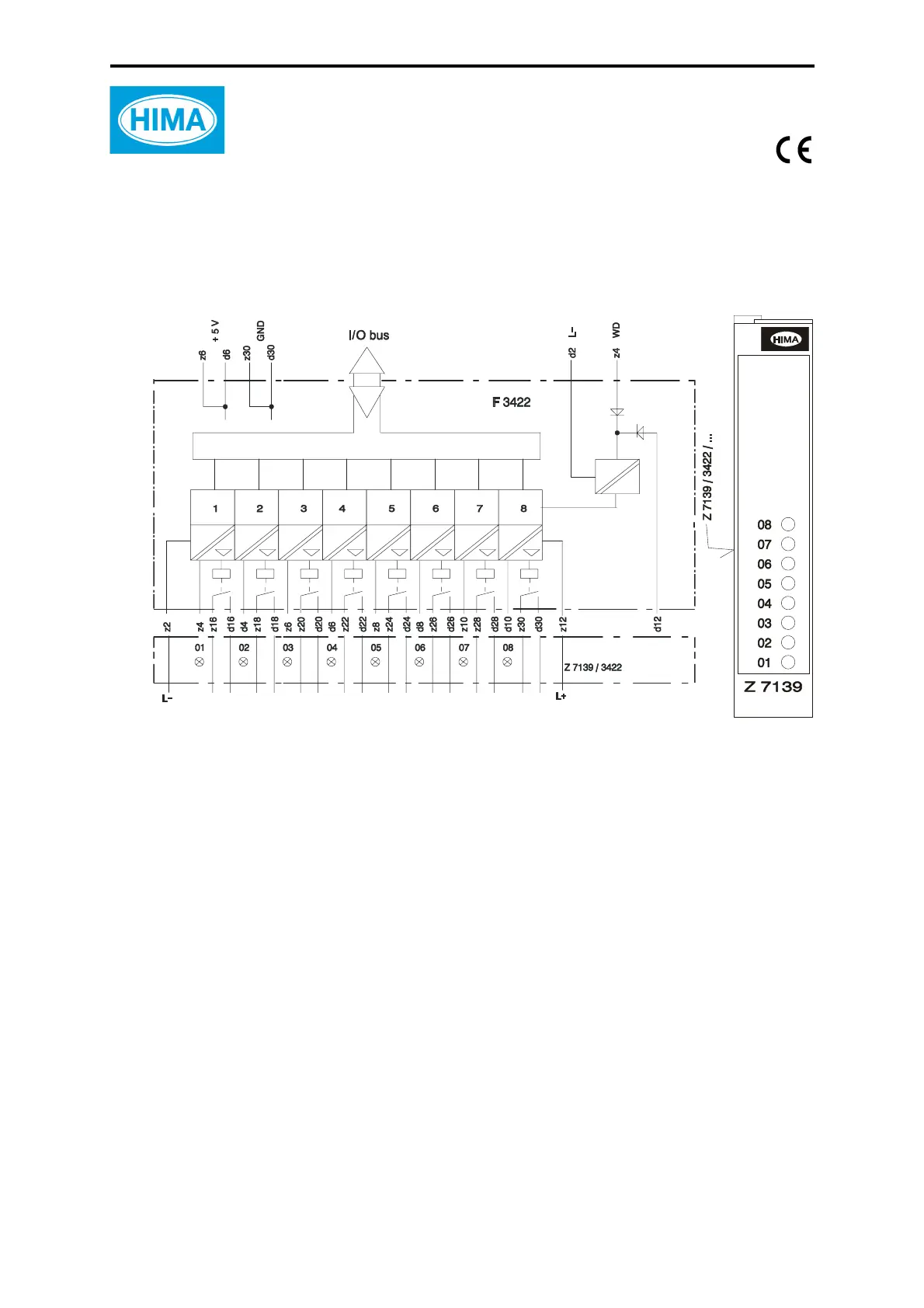

Figure 1: Block diagram and front cable plug
Relay outputs NO contact, dust-tight
Contact material AgNi 0.15, hard gold-plated
Switching time approx. 10 ms
Bounce time approx. 1.5 ms
Switching current 1 mA
≤ I ≤ 4 A
Inrush peak
≤ 12 A for 4 s (relative ON period ≤ 10 %)
Life, mechanical 2 x 10
7
cycles
Life, electrical > 10
5
cycles with full resistive load
and
≤ 0.1 cycles per second
Switching capacity up to 60 VAC: max. 240 VA, cos
ϕ ≤ 0.5
Switching capacity up to 30 VDC: max. 120 W
(non inductive) up to 60 VDC: max. 40 W
Switching frequency max. 18 Hz
Space requirement 4 SU
Operating data 5 VDC / 60 mA
24 VDC / 150 mA
Isolation between contact circuits up to 300 V to EN 50178 (VDE 0160),
overvoltage class II
Block diagram Front cable plug
