F 8627X (0650)
All rights reserved. The technology is subject to changes without notice: 355
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 8627/F 8627X
F 8627X:Ethernet module
F 8627X Communication Module for Ethernet-Communication
Application in H41q/H51q PES (beginning with OS 41q/51q V7.0-7 (9906)).
Appertaining ELOP II Function block: HK-COM-3

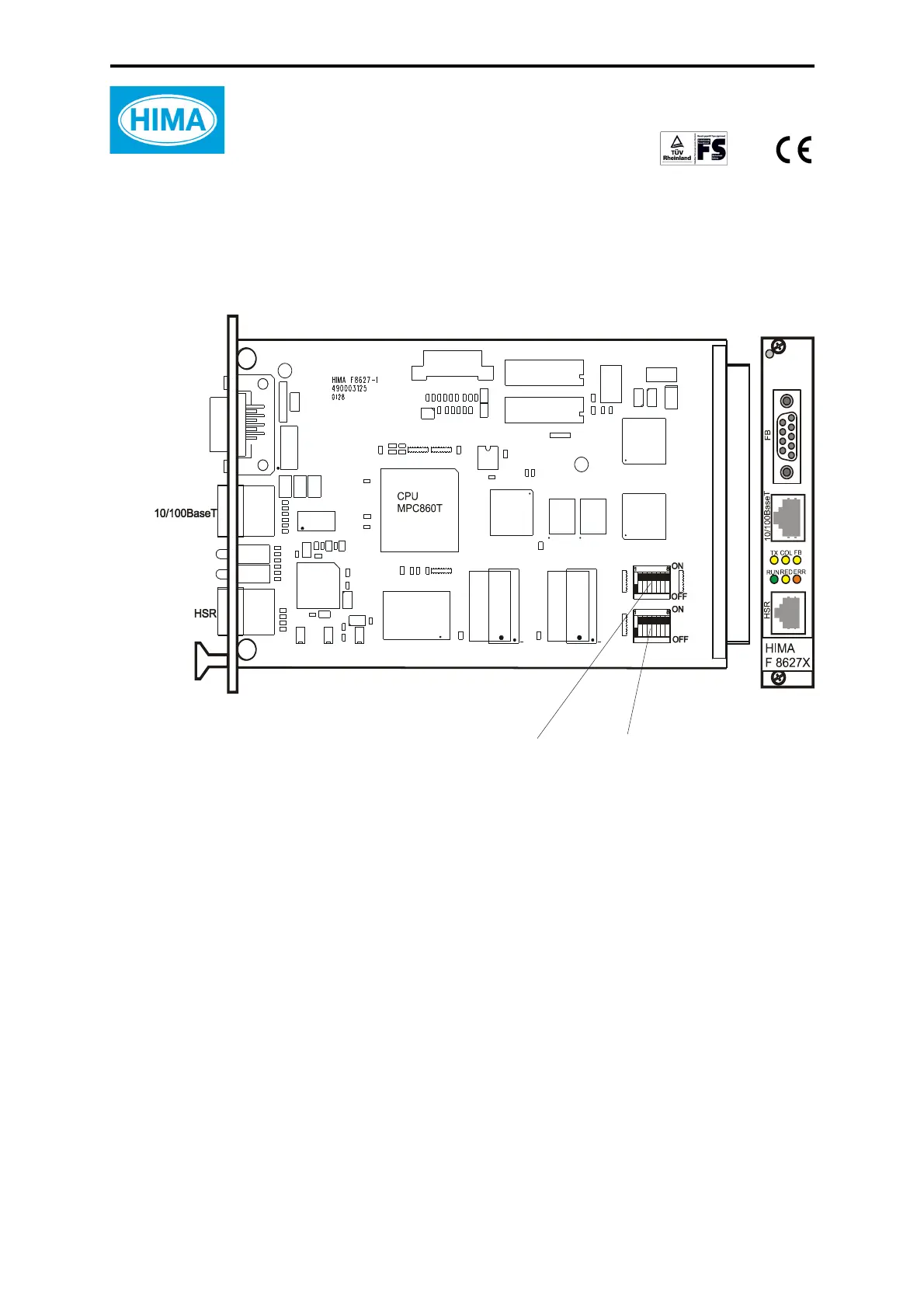

Figure 1: Communication module F 8627X
1 Technical data
Processor 32 bit Motorola CPU MPC860T with integrated
RISC communication controller
Operating voltage 5 V
Current consumption 1 A
Space required 3 HU (units high), 4 SU (units wide)
Ethernet Interface 10BaseT or 100Base TX according to the IEEE 802.3 standard,
connection via an RJ-45 plug.
HSR Interface High-speed serial communication interface to the redundant
HSR (High Speed Redundancy) communication module.
Connection via an RJ-12 plug with BV 7053.
Serial Interface The serial interface FB is not used.
Diagnostic Display 6 LEDs for display diagnostic during operation.
DIP switches 2 DIP switches for setting the module functions.
switch 1 switch 2
