F 7133 (0507)
All rights reserved. Equipment subject to change without notice: 349
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 7133
F 7133: 4-channel power distribution
with fuse monitoring and L- distribution
Figure 1: F 7133 4-channel power distribution
The module has four miniature fuses with assigned LEDs. The fuses are monitored via an eval-
uation logic, and the state of each circuit is signalized to the related LED.
The contact pins 1, 2, 3, 4 and L- on the front side serve to connect L+ or EL+ and L- to supply
the I/O modules and the sensors.
The contacts d6, d10, d14, d18 serve as rear terminals for 24 V supply of one I/O slot each.
Fuses max. 4 A slow blow
Switching time approx. 100 ms (relay)
Loadability of the relay contacts 30 V / 4 A (continuous load)
Residual voltage in case of fuse tripped 0 V
Residual current in case of fuse tripped 0 mA
Residual voltage in case of missing supply max. 3 V
Residual current in case of missing supply < 1 mA
Space requirement 4 SU
Operating data 24 VDC / 60 mA

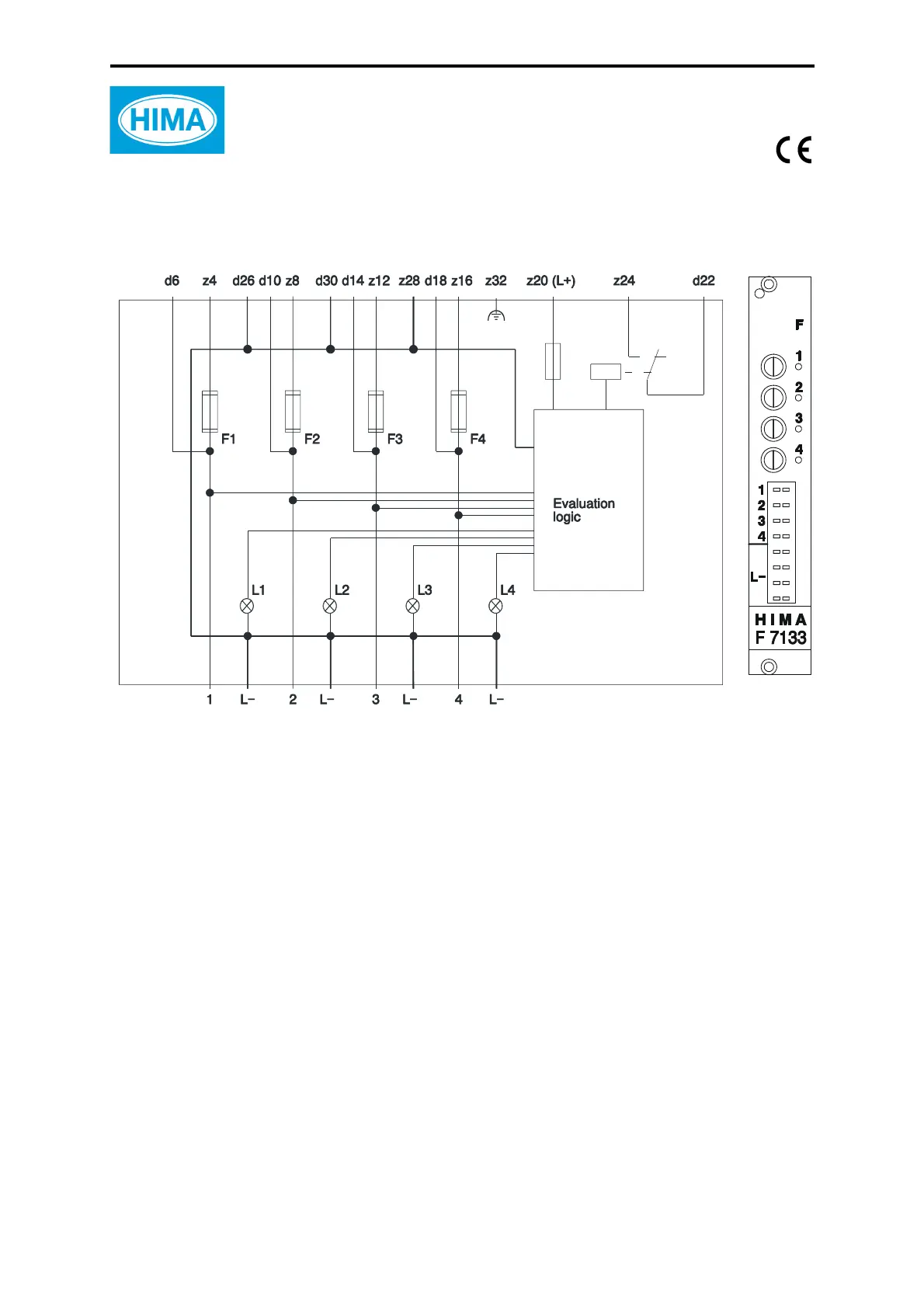

Block diagram
Front view
