HIMA H41q - F 3332: 4-Channel Output Module

F 3332 (0524)
All rights reserved. Equipment subject to change without notice: 233
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 3332
F 3332: 4-channel output module
• resistive or inductive load up to 2 A (48 W)
• lamp connection up to 48 W
• with safe isolation
• no output signal at break of the L- supply

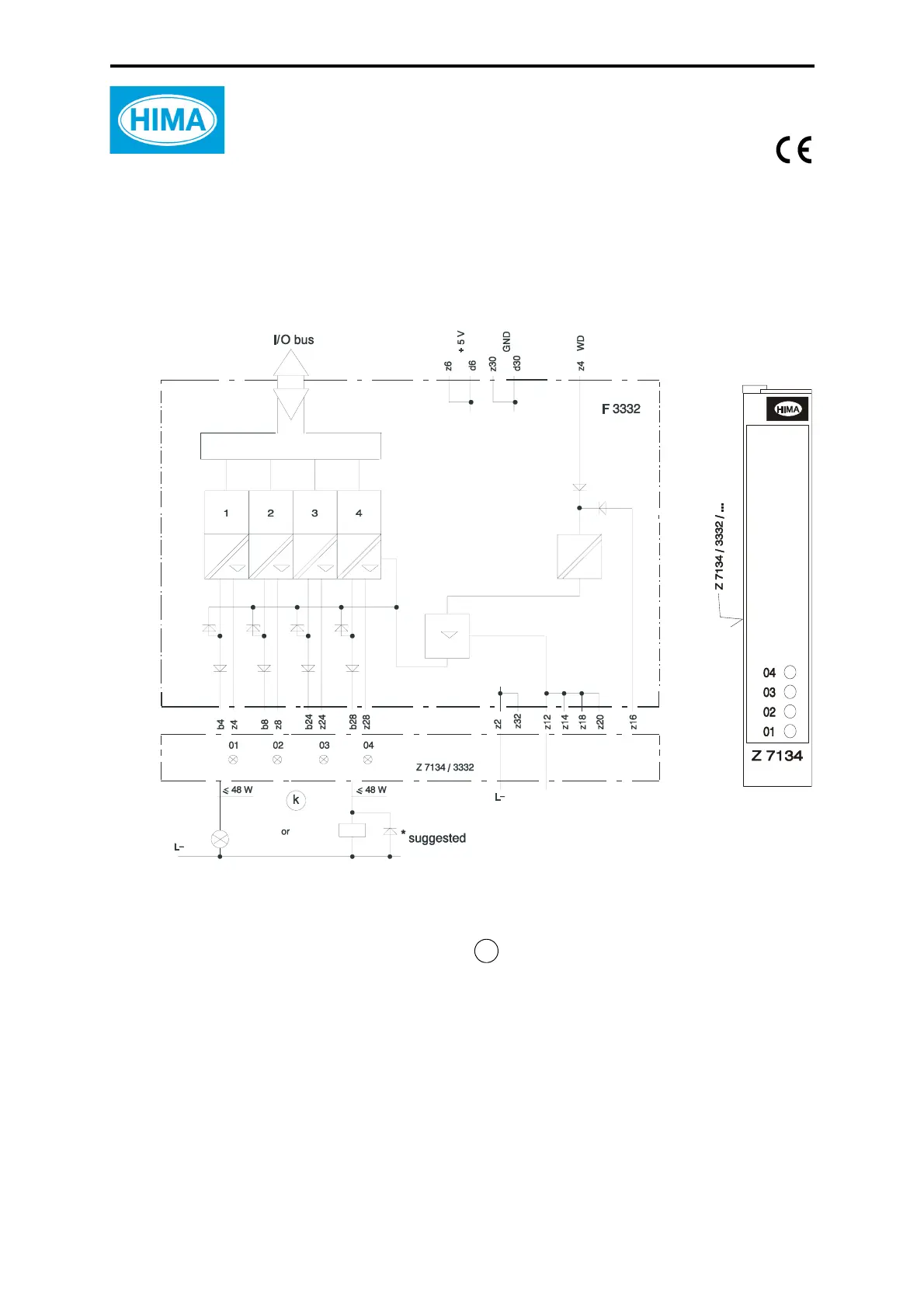

Figure 1: Block diagram and front cable plug
Outputs 2 A, short-circuit proof
Internal voltage drop max. 2 V at 2 A load
Admissible line resistance (in + out) max. 3.6
Ω
Undervoltagetripping at
≤ 16 V
Operating point
for short-circuit current 2.6...5 A
Output leakage current max. 550
μA
Output voltage if output is reset max. 1.5 V
Space requirement 4 SU
Operating data 5 VDC / 70 mA
24 VDC / 70 mA plus load
L+
Front
cable plug
k
