F 3335: 4-channel output module (Ex)i
safety-related, usable up to SIL 3 according to IEC 61508
• for the control of intrinsically safe valves and for the supply of intrinsically safe
transmitters
• Four voltage outputs 24 V with current limiting
EC Type Examination certificate (ATEX): EX5 02 05 19183 037

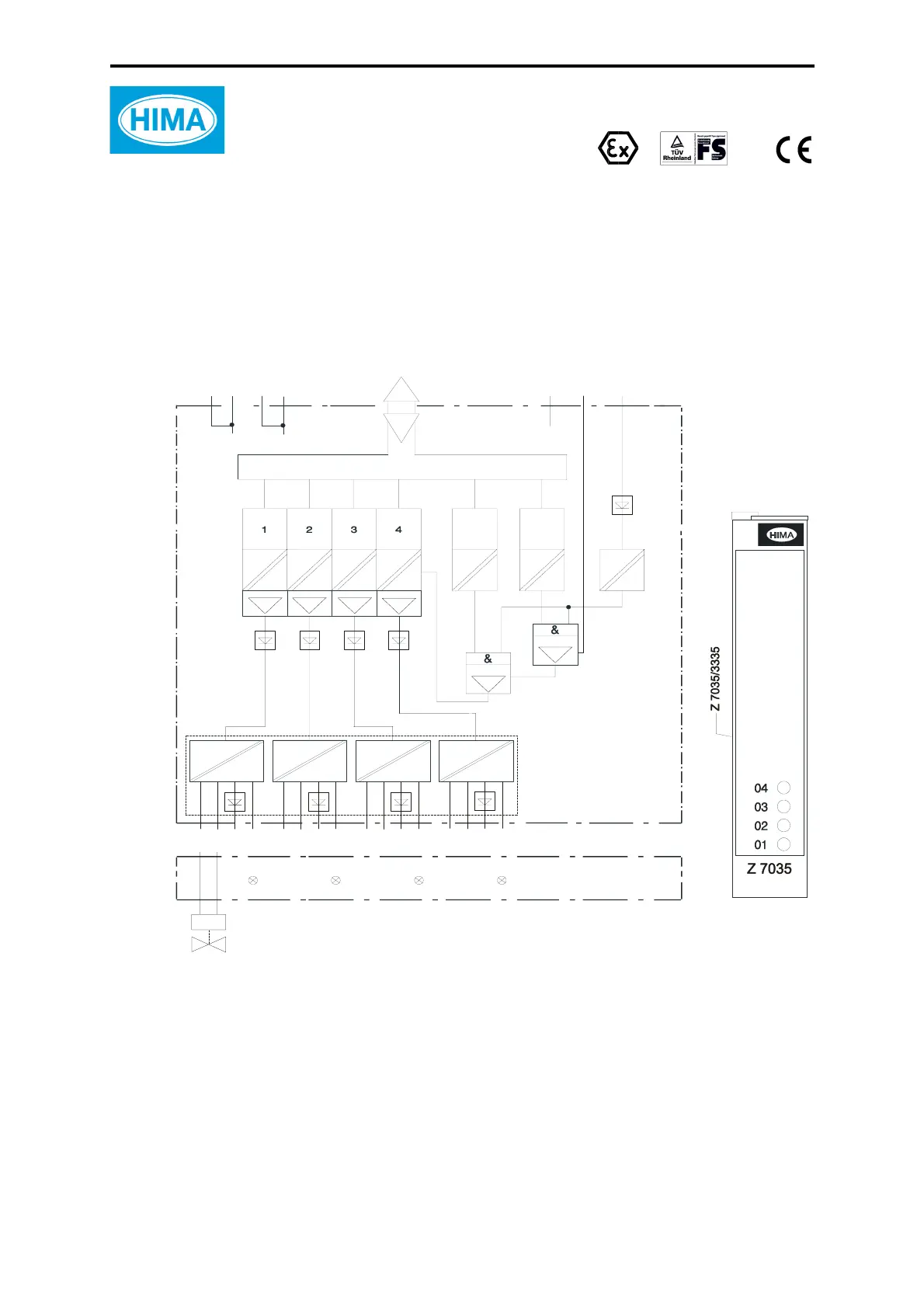

Figure 1: Block diagram and front cable plug
Nominal output voltage 19 V at 20 mA load current
No-load voltage 24 V
Short-circuit current 52 mA (short-circuit proof)
Vertex 24 V / 12 mA
Switching time approx. 15 ms
Reset time 35 to 270 ms (depending on load)
Ex category II (2) GD [EEx ib] IIC
Space requirements 4 SU
Operating data 24 V / 270 to 500 mA (depending on load)
5 V / 60 mA
