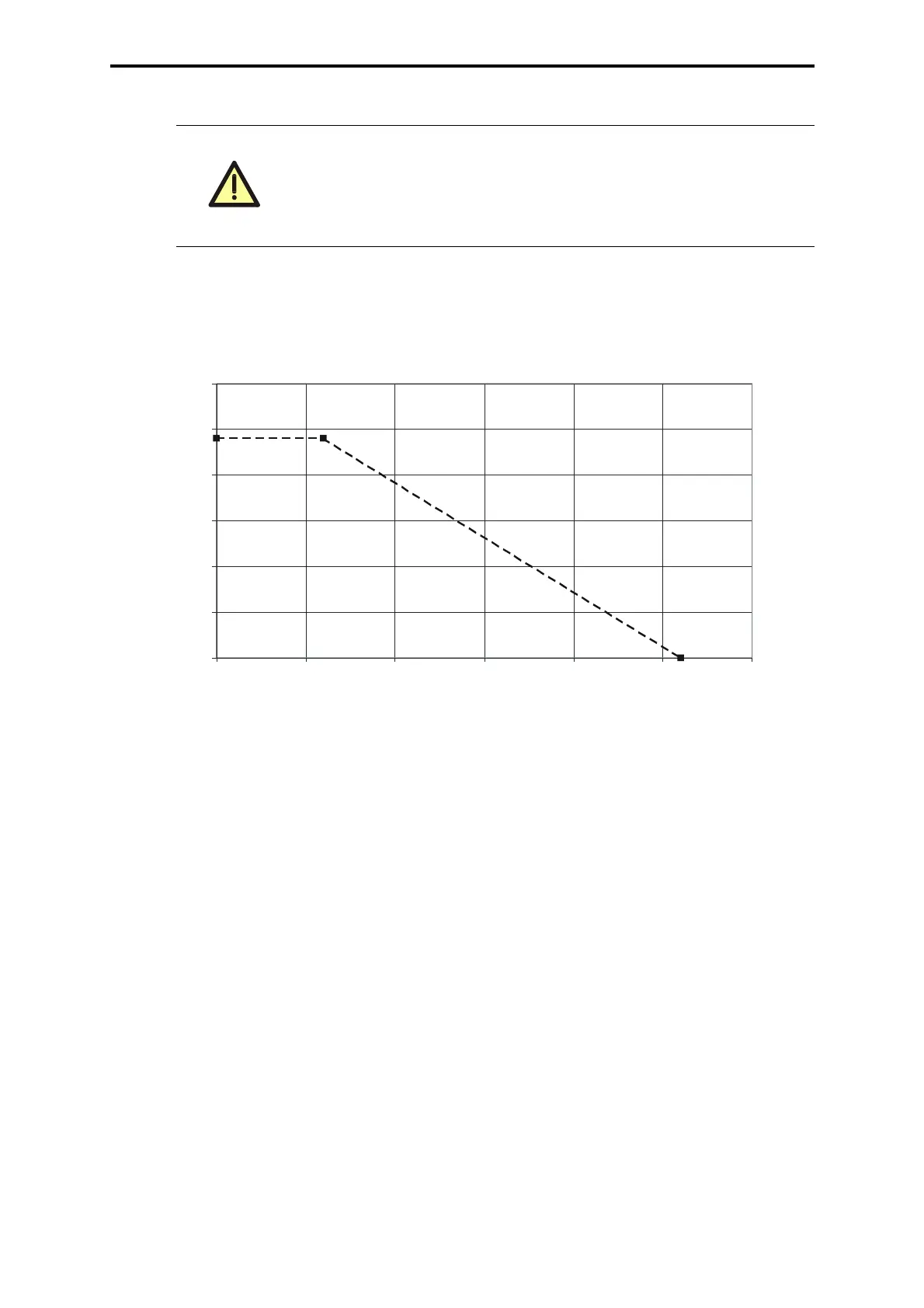

Output characteristic of the F 3335 module
Figure 2: Output characteristic of the F 3335 module
The electrical characteristics of the solenoid valves must be always below the output charac-
teristic of the F 3335 module.
The module must only be operated with forced ventilation (fan).
The fan (K 9203) must be installed above the subrack where the
F 3335 module is plugged in.
If the F 3335 module is operated in an H 41q, the fan (K 9212) must be
installed directly under the F 3335 module.
