F 3322 (0508)
All rights reserved. Equipment subject to change without notice: 213
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 3322
F 3322: 16-channel output module
• resistive or inductive load up to 500 mA (12 W), lamp connection up to 12 W
• with safe isolation
• no output signal at break of the L- supply

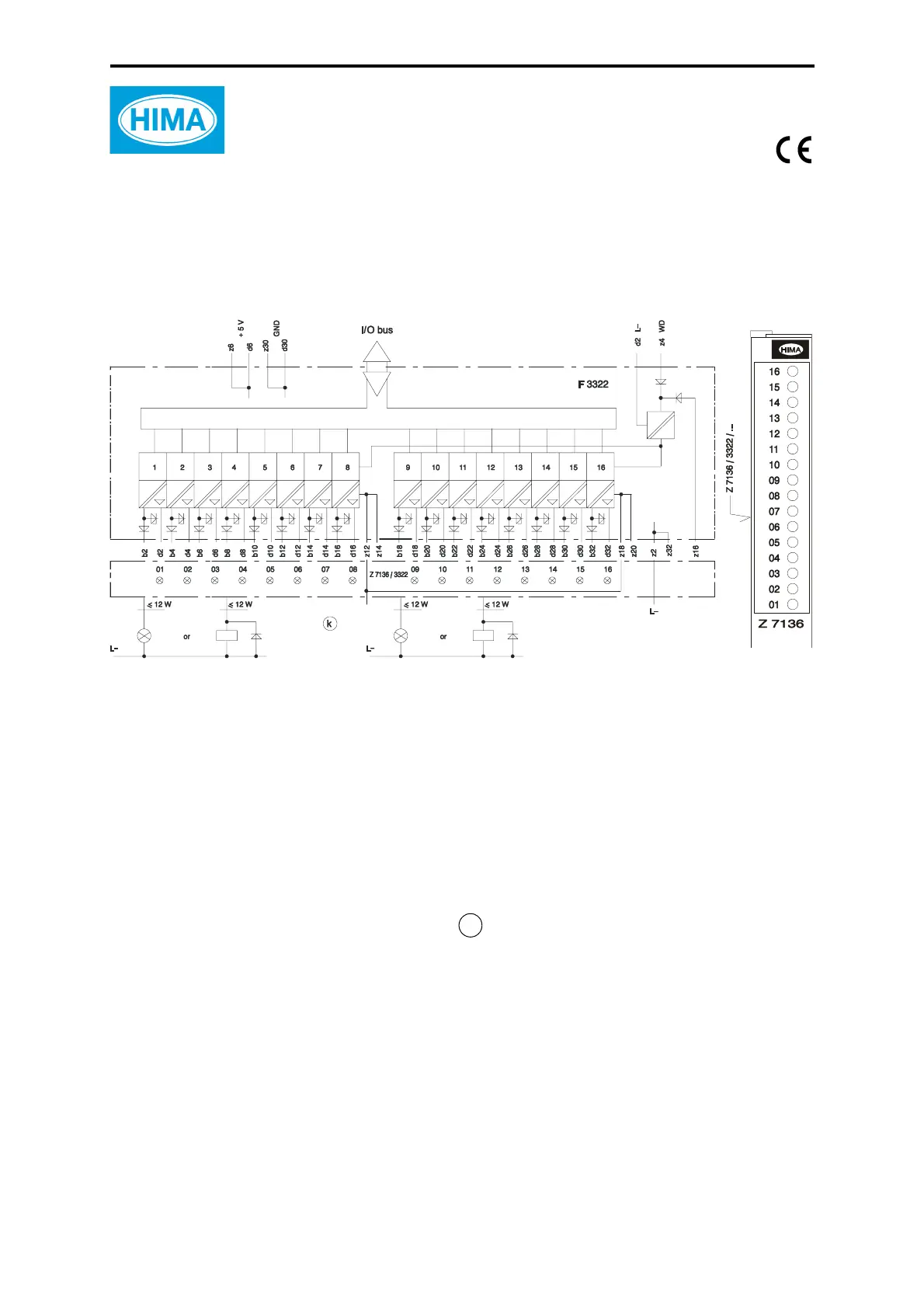

Figure 1: Block diagram and front cable plug
Planning note
Only max. 10 output modules with nominal load may be used in one I/O subrack, and not more
than half of the possible output loads of 16 x 0.5 A (= 8 A) may be switched on at the same time.
The standard fusing of the modules in the I/O subrack is 4 A slow blow.
Outputs 500 mA, k short-circuit proof
Response value for
current limiter > 550 mA
Space requirements 4 SU
Operating data 5 VDC / 110 mA
24 VDC / 150 mA plus load
L+
Front
cable plug
