HIMA H41q User Manual

F 5203 (0507)
All rights reserved. Equipment subject to change without notice: 263
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 5203
F 5203: 14 bit ring counter

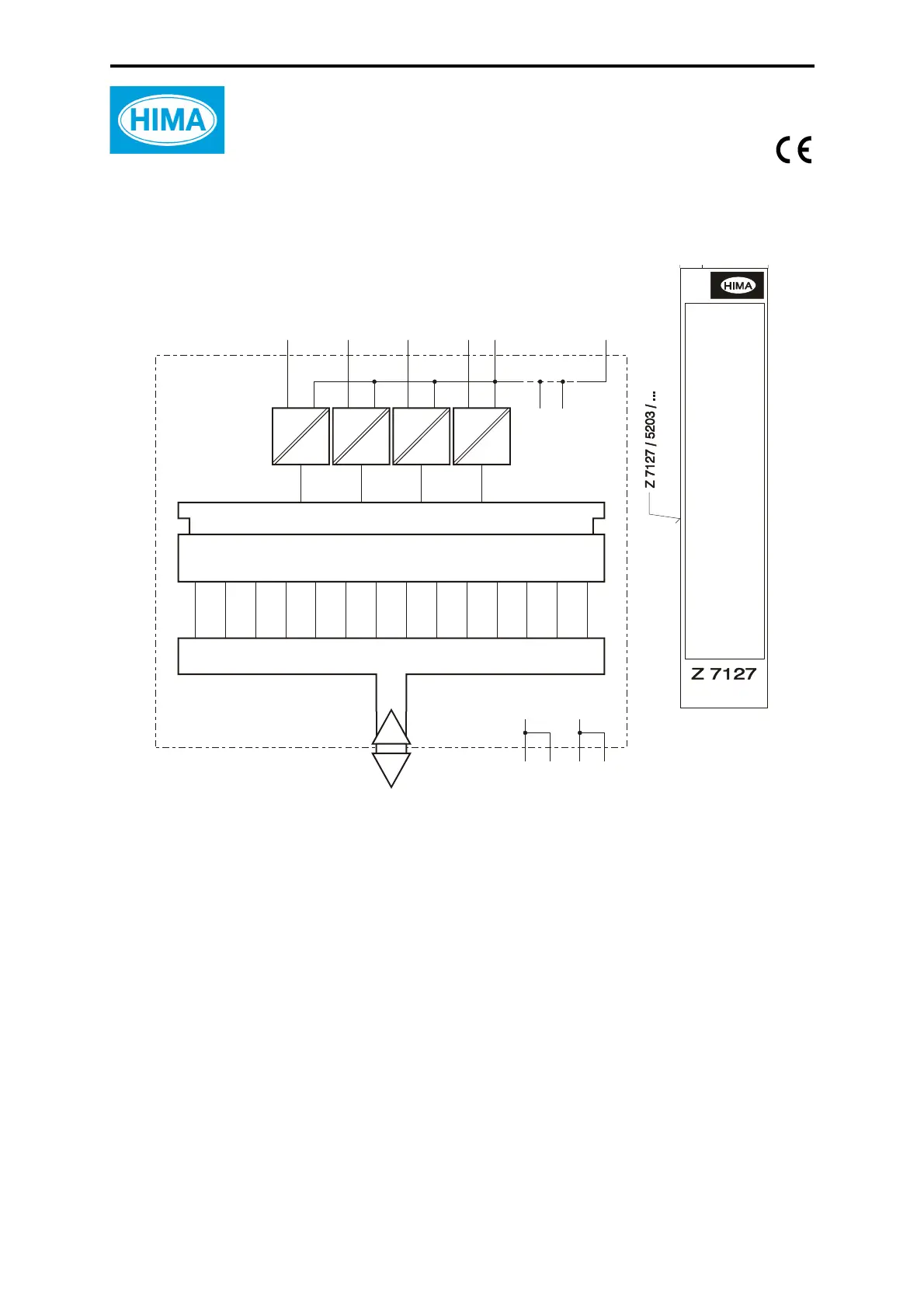

Figure 1: 14 bit ring counter
The module records fast counting pulses. It can be used as a counter or discriminator.
Inputs 1-signal, 4 mA, 24 VDC
Counting frequency max. 5 kHz
Counting range 0...16383
Space requirement 4 SU
Operating data 5 VDC / 300 mA
The ring counter is controlled via the inputs ZE, RE, UM, NS. The value of the ring counter can
be read over the defined digital input.
bit 14
I
/O
bus
RE
bit 1
UM
z32
ZE
14 bit ring counter
NS
z2
d6
d10
z6
+5 V
d14
L-
d6
d2
L-
d30
z30
GND
Block diagram
Front
cable plug
ZE counting input
RE counting direction input
UM change-over
discriminator / counter
NS zero setting input
