H 7013 (0548)
All rights reserved. Equipment subject to change without notice: 469
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
H 7013
H 7013: Power supply filter
• for power supply systems 24 VDC

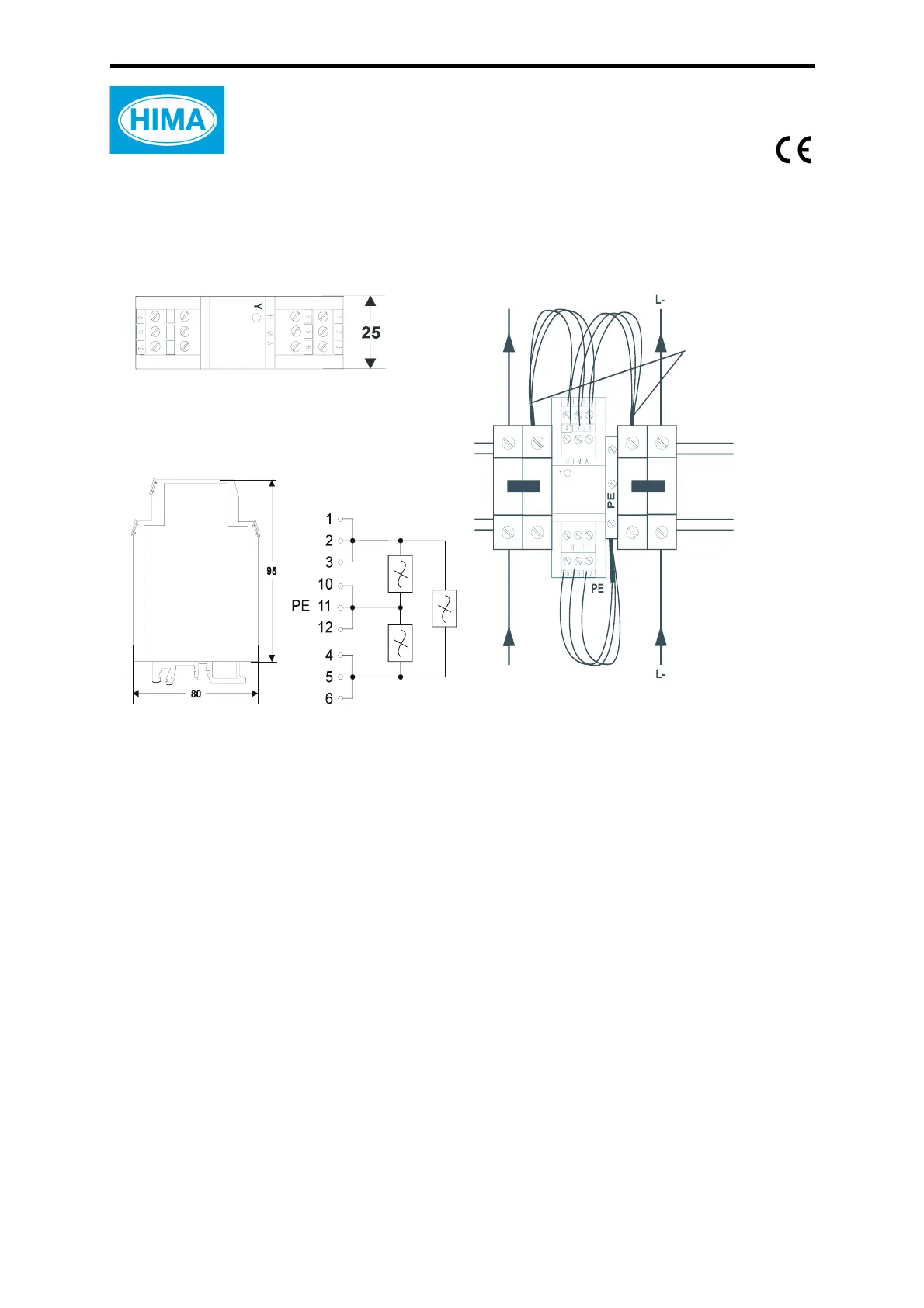

Figure 1: H 7013 power supply filter
The power supply filter H 7013 dampens wide-banded, low energy switching interferences
(Burst) according to IEC EN 61000-4-4 up to 2 kV, and wide-banded, high energy overvoltages
(Surge) according to IEC EN 61000-4-5 up to 1 kV on a 24 VDC power supply circuit. The in-
terferences are discharged to earth.
Highest effectiveness can be achieved if the filter is installed directly at the 24 V power supply.
Connection 2.5 mm
2
directly on the device terminals,
combined wires on terminals of min. 10 mm
2
Height over mounting rail approx. 100 mm
Electric strength against earth 250 V
Max. permissible operation voltage 30 VAC / 42 VDC
Power consumption 5.5 mA at 24 VDC
Ambient conditions -25...+70 °C
Circuit diagram
Connecting example
with terminals on mounting rail
H 7013
Side view
Top view
Wires combined at the en
in wire end ferrules.
Connection lines
are part of delivery.
L +
L +
Feedin
24 VDC
H 7013
