HIMA H41q User Manual

F 7131 (0507)
All rights reserved. Equipment subject to change without notice: 345
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 7131
F 7131: Power supply monitoring with
buffer batteries
for PES H51q

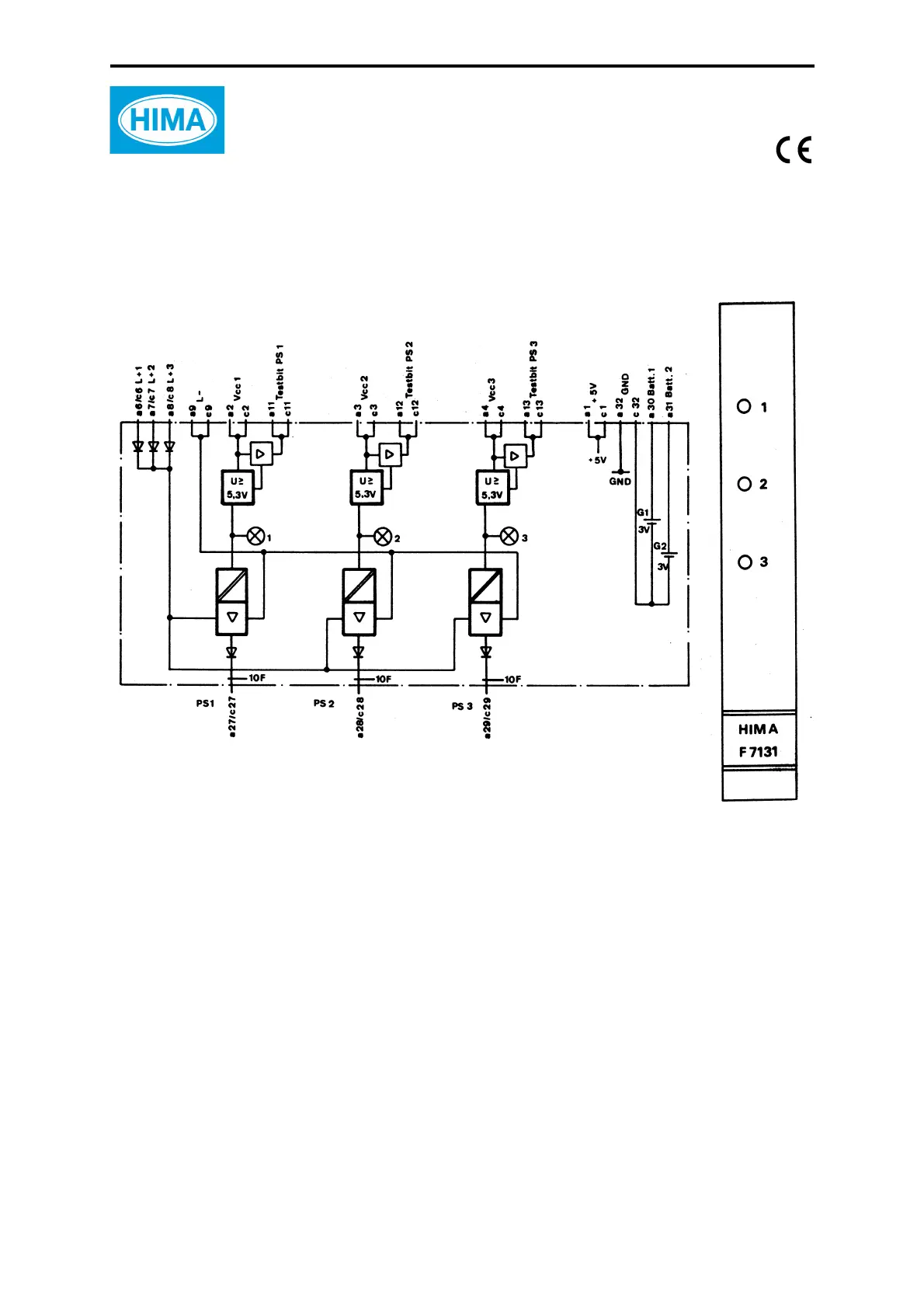

Figure 1: F 7131 Power supply monitoring with buffer batteries
The module F 7131 monitors the system voltage 5 V generated by the three power supplies
(max.) as follows:
– 3 LED displays at the front of the module,
– 3 test bits for the central modules for the diagnostic display and for the operation within the
user program,
– for the use within the additional power supply (assembly kit B 9361) the function of the
power supply modules in it could be monitored via three outputs of 24 V (PS1 to PS 3).
Operating data 5 VDC / 25 mA
24 VDC / 20 mA
Space requirement 4 SU
