HIMA H41q User Manual

F 6220 (0625)
All rights reserved. Equipment subject to change without notice: 297
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 6220
F 6220: 8-channel thermocouple input module
(Ex)i, safety-related
• with Pt 100 input for comparison measurement
• with safe isolation, applicable up to SIL 3 according to IEC 61508
• EC type examination certificate: ATEX EX5 00 02 19183 031
1Overview

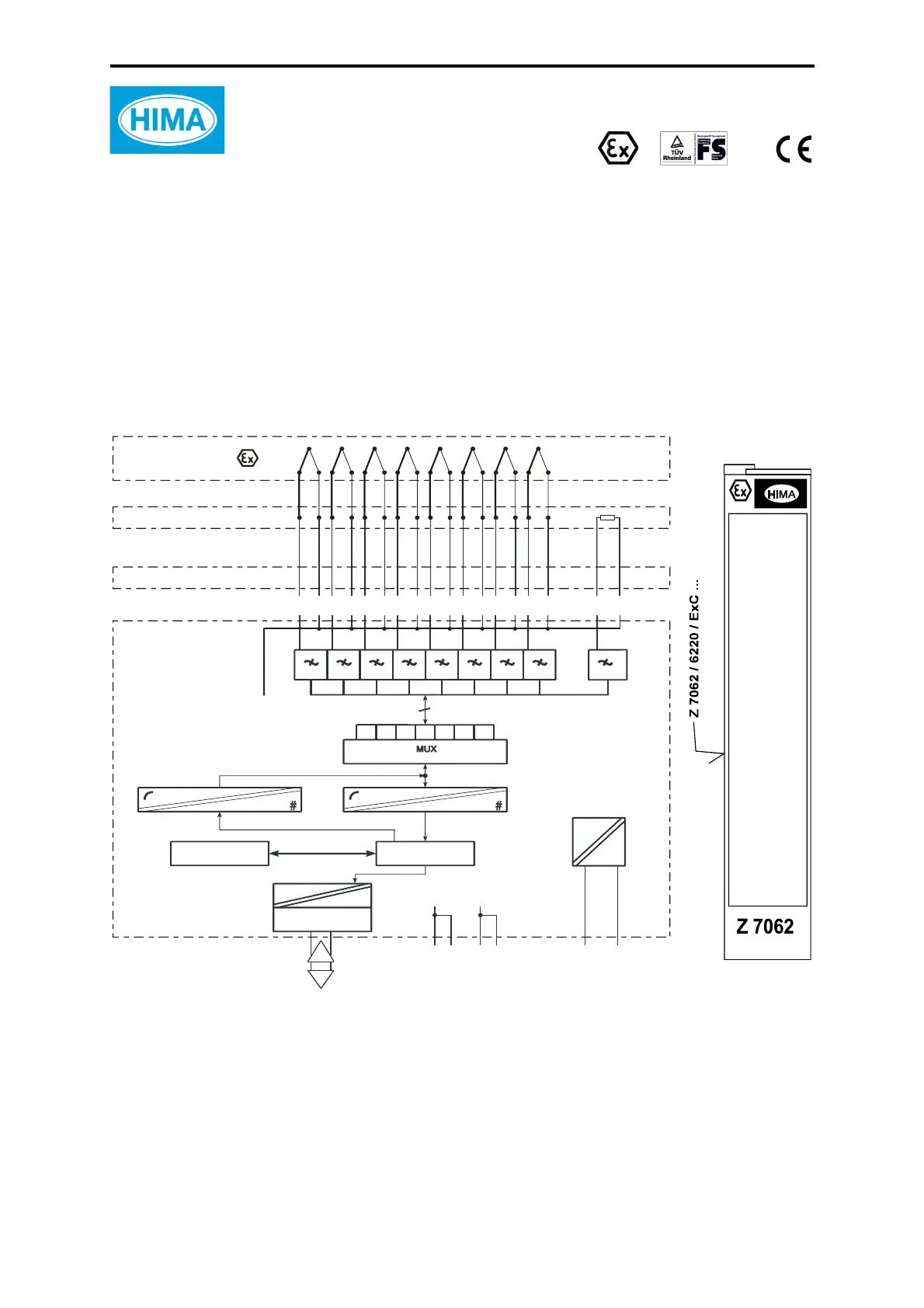

Figure 1: Block diagram and front cable plug
Software function block in user program: HF-TMP-3
Inputs thermocouples R, S, B, J, K, T, E,
according to DIN EN 60584-1,
temperature limits between -270 °C...+1820 °C,
or low voltage input -100 mV...+100 mV,
individual parameterizable by function block,
Front cable plug
Block diagram
F 6220
TTTTTTTT PT100
9
µC1µC2
µC3
GND-Analog
Z 7062 / 6220
measuring point
point of
connection
equalizing
conductor
reference
point
PT100
z32 d32 z2 z4 z8 z10 z14 z16 z20 z22 d2 d4
z6 d2 d6 z30 z2
+ 5 V L-GND L+
d30
d8 d10 d14 d16 d20 d22
I
/O
bus
