F 7130A (0507)
All rights reserved. Equipment subject to change without notice: 343
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 7130A
F 7130A: Power supply module
Input voltage 24 VDC, output voltage 5 VDC
for PES H41q

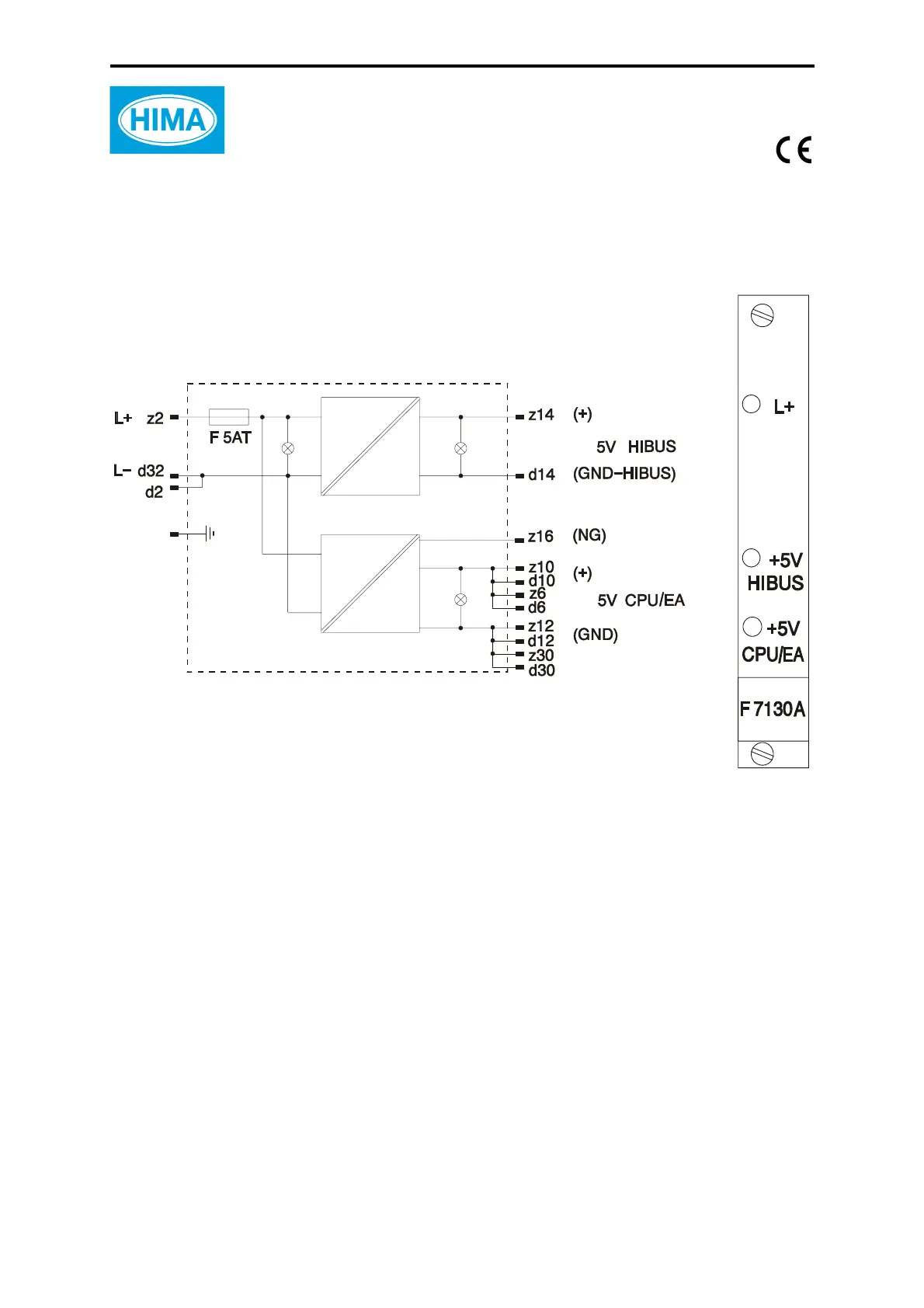

Figure 1: F 7130 A power supply module
The module supplies PES H41q with 5 VDC from a main supply of 24 VDC. It is a DC/DC con-
verter with electrical isolation between input and output voltage. The module is equipped with
overvoltage protection and current limitation. The outputs are short-circuit proof. The supply
connections are separated for the central device/IO modules and HIBUS interface.
The present input voltage (L+) and the output voltages are indicated with LEDs on the front
plate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates only
slightly.
The power supply for the monitoring of the central device is fed separately via pin z16 (NG).
Operating data 24 VDC, -15...+20 %, r
pp
< 15 %
Primary fuse 5 A gL
Outputs for
central device/IO-modules 5 VDC,
± 0.25 V / 10 A
HIBUS 5 VDC,
± 0.25 V / 1 A
Efficiency rate
≥ 70 %
Space requirement 4 SU
d4PE
