HIMA H41q - F 6217: 8-Channel Analog Input Module

F 6217 (0606)
All rights reserved. Equipment subject to change without notice: 289
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 6217
F 6217: 8-channel analog input module
safety-related, applicable up to SIL 3 according to IEC 61508
• for current inputs 0/4...20 mA, voltage inputs 0...5/10 V
• with safe isolation
• resolution: 12 bits

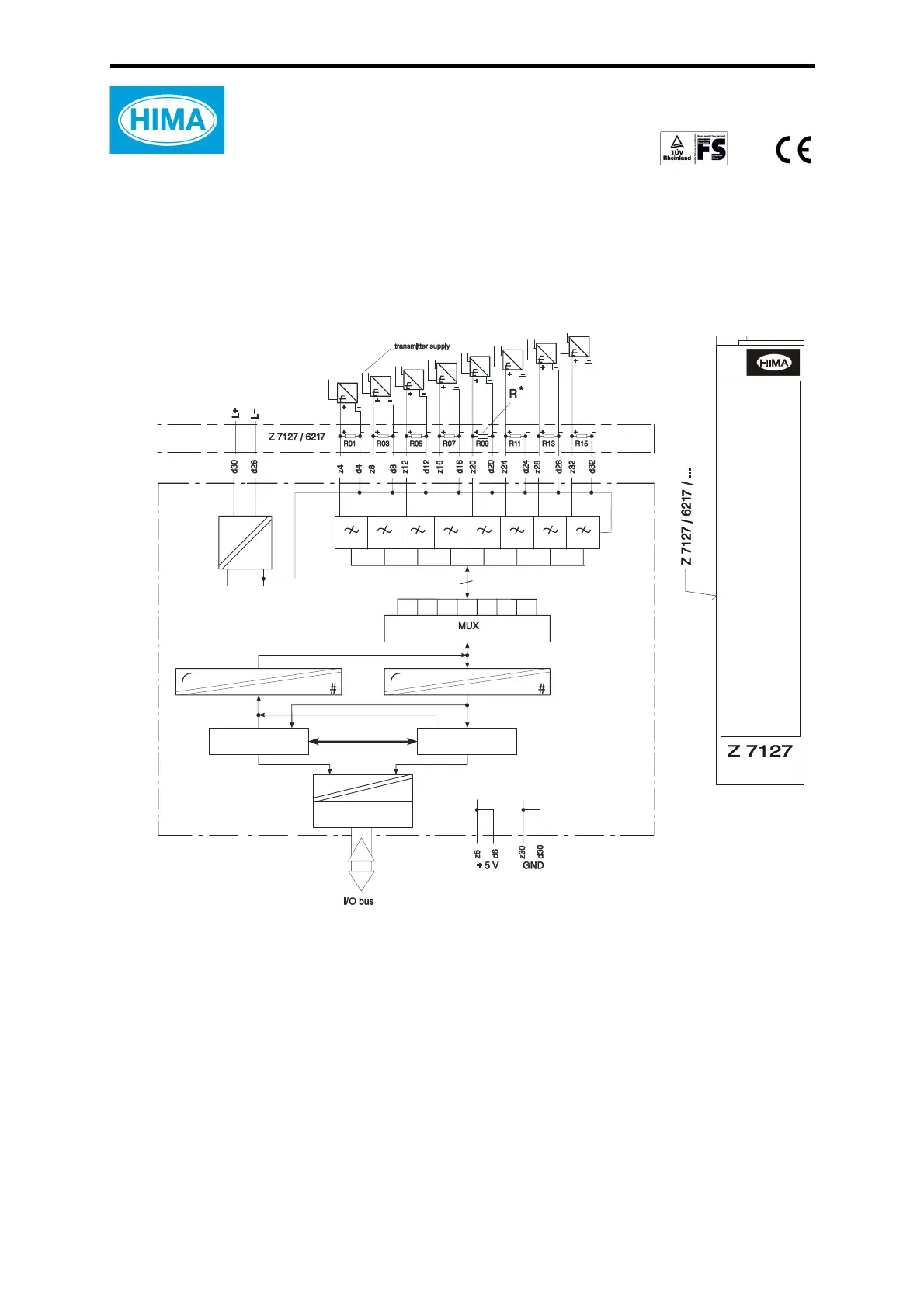

Figure 1: Block diagram and front cable plug
Interpretation of channel bit faults for each channel to project in ELOP II.
Input voltage 0...5.5 V
max. input voltage 7.5 V
Input current 0...22 mA (via shunt), 22 mA = 4095
max. input current 30 mA
R*: Shunt with 250
Ω; 0.05 %; 0.25 W;
current input T<10 ppm/K; part-no: 00 0710251
Resolution 12 bit, 0 mV = 0, 5.5 V = 4095
Measurand update 50 ms
Safety time < 450 ms
Input resistance 100 k
Ω
F 6217
TTTTTTTT
8
µC1µC2
µC3
V-Analog GND-Analog
Front cable plug
Note: see also
information about
cable plug Z 7128
Block diagram
