HIMA H41q User Manual

F 7132 (0507)
All rights reserved. Equipment subject to change without notice: 347
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 7132
F 7132: 4-channel power distribution
to distribute L+ (or EL+) and L-
for PES H41q/H51q

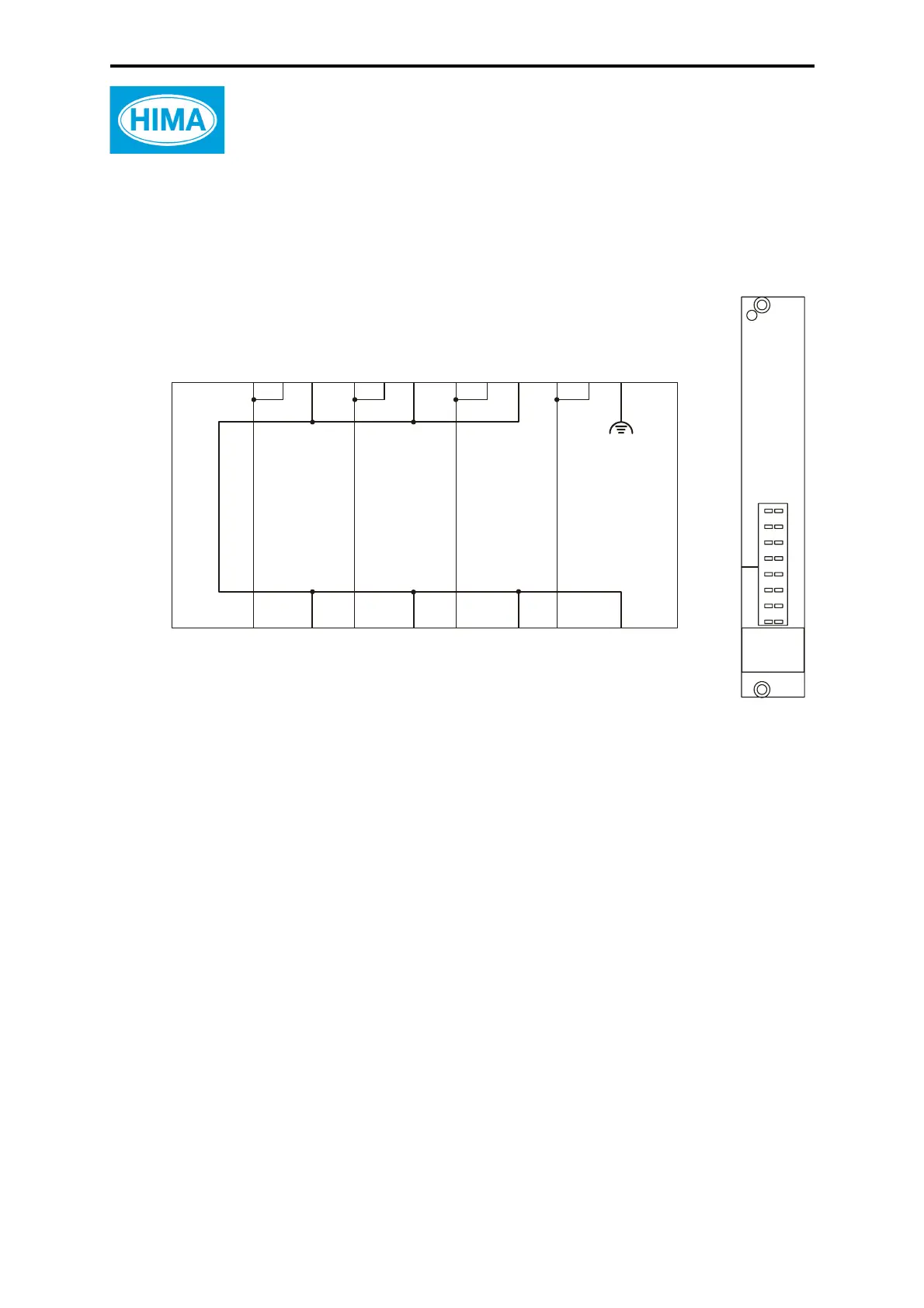

Figure 1: F 7132 4-channel power distribution
The contact pins 1, 2, 3, 4 and L- on the front side serve to connect L+ or EL+ and L- to the
individual circuits.
The contacts d6, d10, d14, d18 serves as rear terminals for loads or current distributors.
Loadability of the contacts max. 4 A
Space requirement 4 SU
z4 d6 d26 z8 d10 d30 z12 d14 z28 z16 d18 z32
1L–2L–
3
L– 4 L–
Rear
Front
1
2
3
4
L-
H I M A
F 7132
Block diagram Front view
