BV 7043 (0508)
All rights reserved. Equipment subject to change without notice: 155
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
BV 7043
BV 7043: Data connecting cable
Direct connection of personal computer to the interface in
the H41q/H51q systems (also redundant)
without additional power supply
Standard lengths: 5 m, 15 m

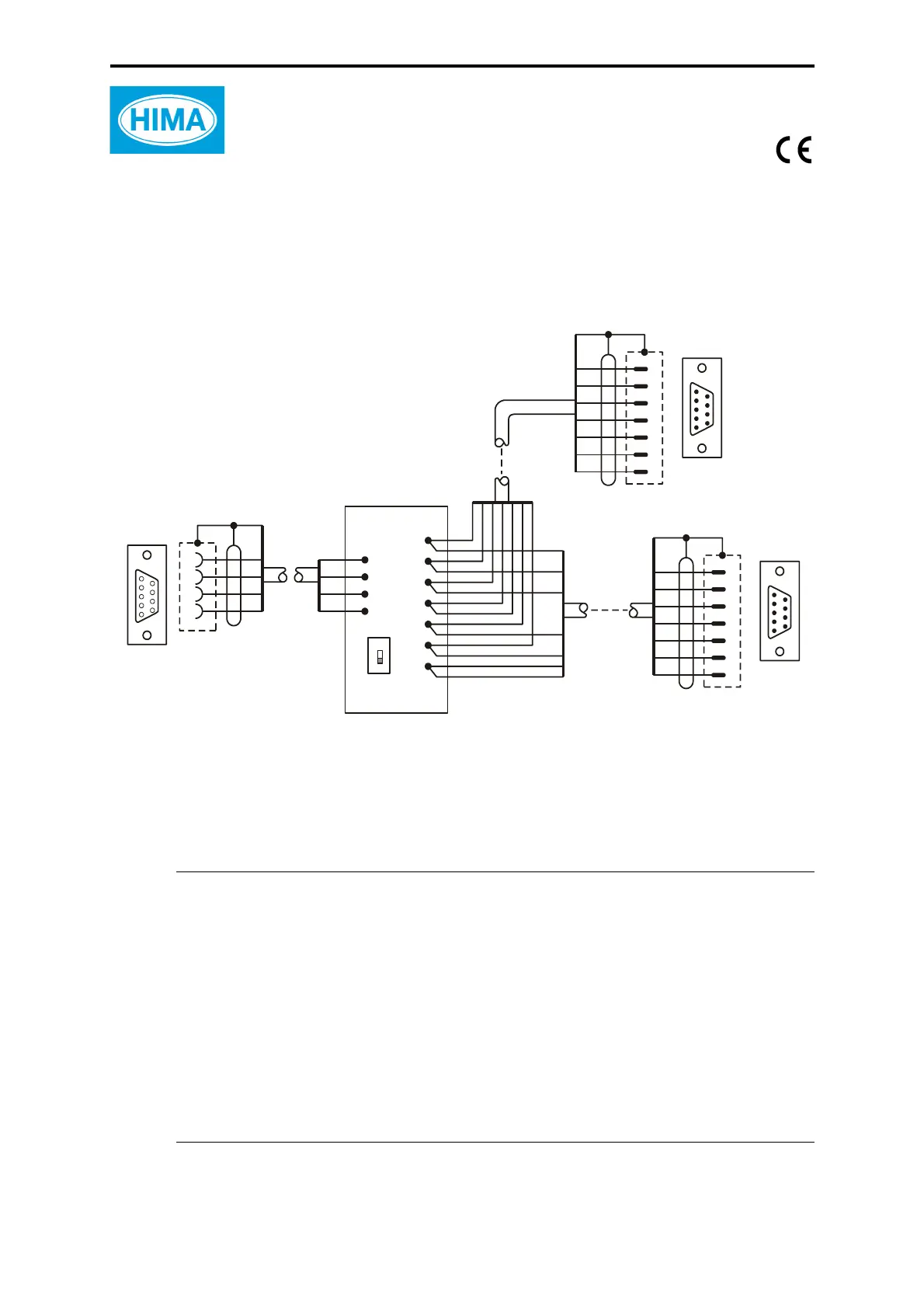

Figure 1: Wiring
Notes • It is not possible to build up a serial connection of several cables
BV 7043 for extension.
• Usable for service and set up, not for continuous operation (in this
case use interface converter H 7505 and appertaining cables).
• Together with the MIN-D 9 pole adapter socket/socket (part no.
52 0009389) the BV 7043 is also usable as a branch to connect a PC
with the system software HIMA communication analyzer HIKA.
• If the cable is used together with a system software which does not
support the status line of an interface RS 232 C, the DIP switch on
the board within the box Z 6004 has to be set from position 2 "Bus" to
position 1 "RS 232":
Position 1: Operation with ELOP II or Wizcon
Position 2: Operation with ELOP or HIKA
MIN-D socket, 9-poles
9
1
5
6
2
3
4
5
WH
BN
GN
YE
2
3
4
5
X2
X1
3
4
5
6-1
8
9
6-2
WH
BN
GN
YE
BU
GY
PK
WH
BN
GN
YE
BU
GY
PK
Z 6004
MIN-D plug, 9-poles
9
1
5
6
3
4
5
6
WH
BN
GN
YE
8
GY
9
PK
2
BU
MIN-D plug, 9-poles
9
1
5
6
3
4
5
6
WH
BN
GN
YE
8
GY
9
PK
2
BU
LiYCY
7 x 0 25 mm
.
2
l = 0.35 m
LiYCY
7 x 0 25 mm
.
2
l = 0.5 m
Box
l = 100 mm
b = 50 mm (width)
h = 2
5
mm
LiYCY
4 x 0 25 mm
.
2
WH
BN
GN
YE
BUS
RS232
12
