B 4235 / H41q-MS (0605)
All rights reserved. Equipment subject to change without notice: 63
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
B 4235 / H41q-MS
B 4235: Assembly Kit / H41q-MS: System
System H41q-MS in K 1409 system subrack, 5 HU, 19 inches with single channel central mod-
ule, power supply 24/5 V, I/O level, communication module (optional), coprocessor module
(optional) and four fans
TÃœV certified, applicable up to SIL 3 according to IEC 61508

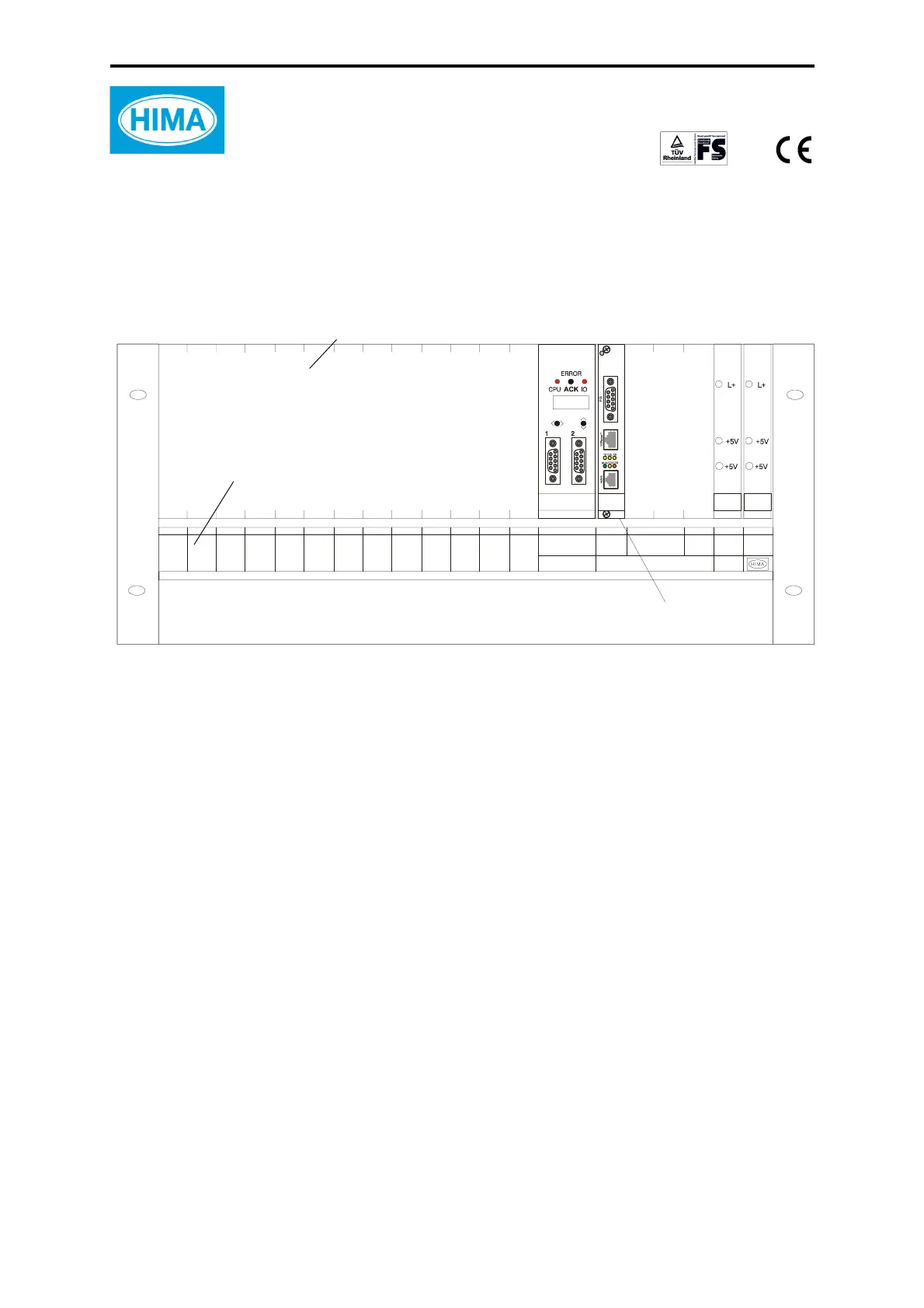

Figure 1: Front view
1 Parts of the B 4235 assembly kit /
H41q-MS system
• 1 x K 1409 system subrack, 5 HU, 19 inch, with cable tray with four fan modules
K 9212, hinged receptacle for the label and backplane Z 1009.
On the rear buffer batteries (G1, G2)
• additional modules on the rear
• 2 x Z 6011 decoupling and fusing to feed the power supply modules
• 1 x Z 6018 fan run monitoring and fuse monitoring
• 2 x Z 6013 decoupling and fusing for the supply voltage of the WD signal
• 1 x Z 6007 jumper plug (combination of the separated I/O buses, single channel
system H41q-MS)
include the modules:
• 1 x F 8652X central module (CU1)
• 2 x F 7130A power supply 24/5 VDC (PS1, PS2)
The 5 V outputs of both power supplies are switched in parallel.
Modules for option (separate order):
• 1 x F 8621A coprocessor module (CM1)
• 1 x communication module (CM1),
e.g. F 8627X (Ethernet) or F 8628X (Profibus DP)
• max.13 I/O modules (slots1 to 13)
F8652X F8627X
F7130A
15 16 17 18 19 20 211234 56 78 91011121314
HIMA
F8627X
ZB1/CU1 KB1/CM1
NG1/PS1
H41q-MS
B 4235
Option
HIMA
F8652X
CPU/EA
HIBUS
HIMA
F7130A
HIMA
F8627X
CPU/EA
HIBUS
HIMA
F7130A
F7130A
NG2/PS2
13 Slots for I/O modules
Earth bar (covered),
1 x Faston 6.3 x 0.8 mm for each slot
K 1409
CU1
PS1CM1 PS2
