HIMA H41q - F 6215: 8-Channel Analog Input Module

F 6215 (0507)
All rights reserved. Equipment subject to change without notice: 279
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 6215
F 6215: 8-channel analog input module
• for voltage inputs 0...1/5/10 V, Pt 100 inputs
• current inputs 0/4...20 mA
• with safe isolation to the plant and electric isolation between the inputs
• Resolution: 12 bits

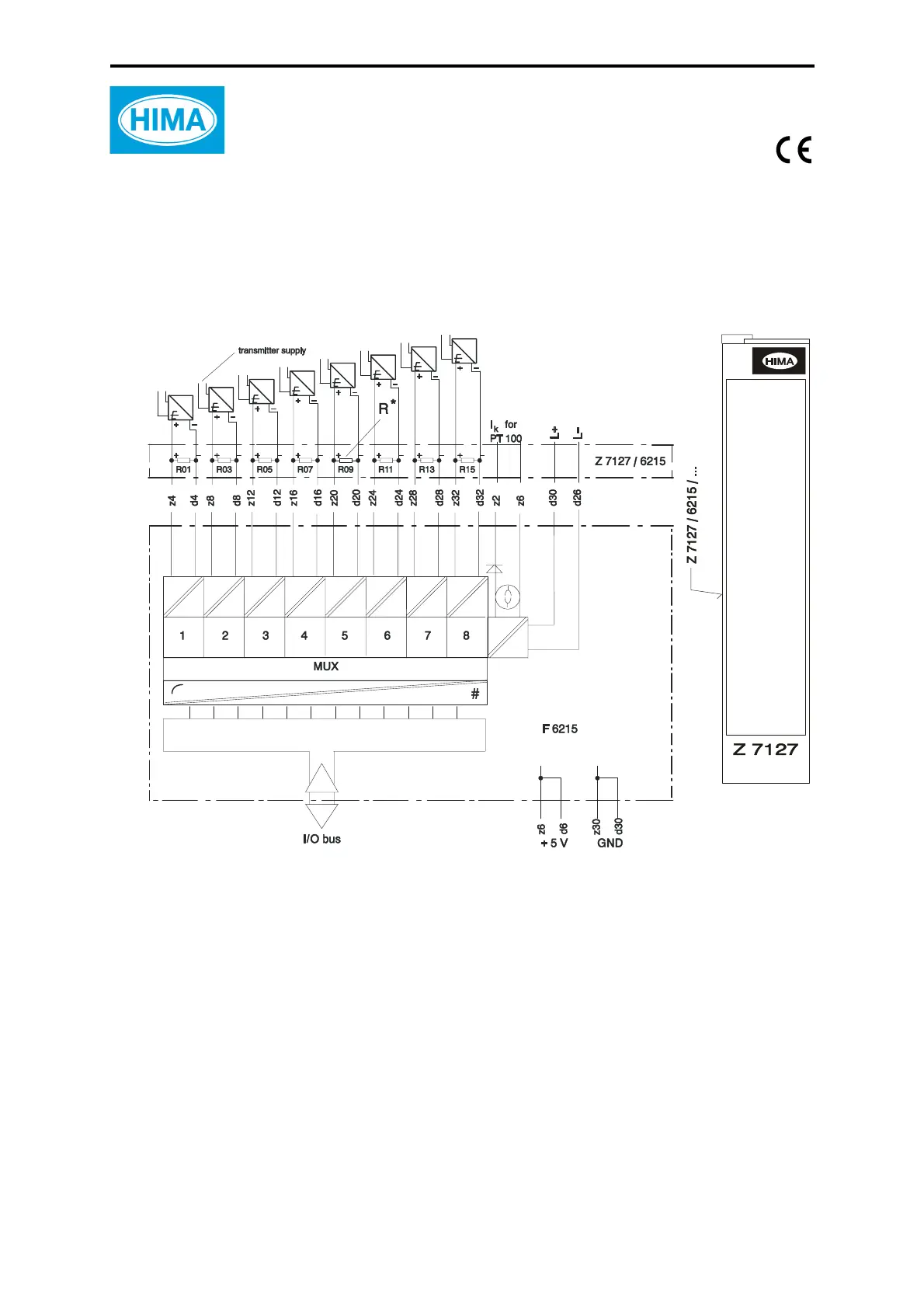

Figure 1: Block diagram and front cable plug
Input voltage 0...1.06 V (appr. 6 % overflow)
Digital values 0 mV = 0,
1 V = 3840, 21.3 mA = 4095
R*: Shunt with 50
Ω; 0.05 %; 0.125 W;
current input T<10 ppm/K; part-no: 00 0710500
Input resistance min. 1 M
Ω
Time const. input filter approx. 2.2 ms
Conversion time max. 4 ms for 8 channels
Basis error 0.1 % at 25 °C
Operating error 0.3 % at 0...+60 °C
Electric strength 200 V against Analog GND
I
k
for PT 100 2.5 mA
Space requirement 4 SU
Operating data 5 VDC / 100 mA,
24 VDC / 140 mA
Front cable plug
Block diagram
