HIMA H41q User Manual

F 6706 (0507)
All rights reserved. Equipment subject to change without notice: 337
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 6706
F 6706: 2-channel converter digital/analog
• Outputs: 0/4...20 mA, individual electrical isolation
• with safe isolation
• for source or sink mode
1Overview

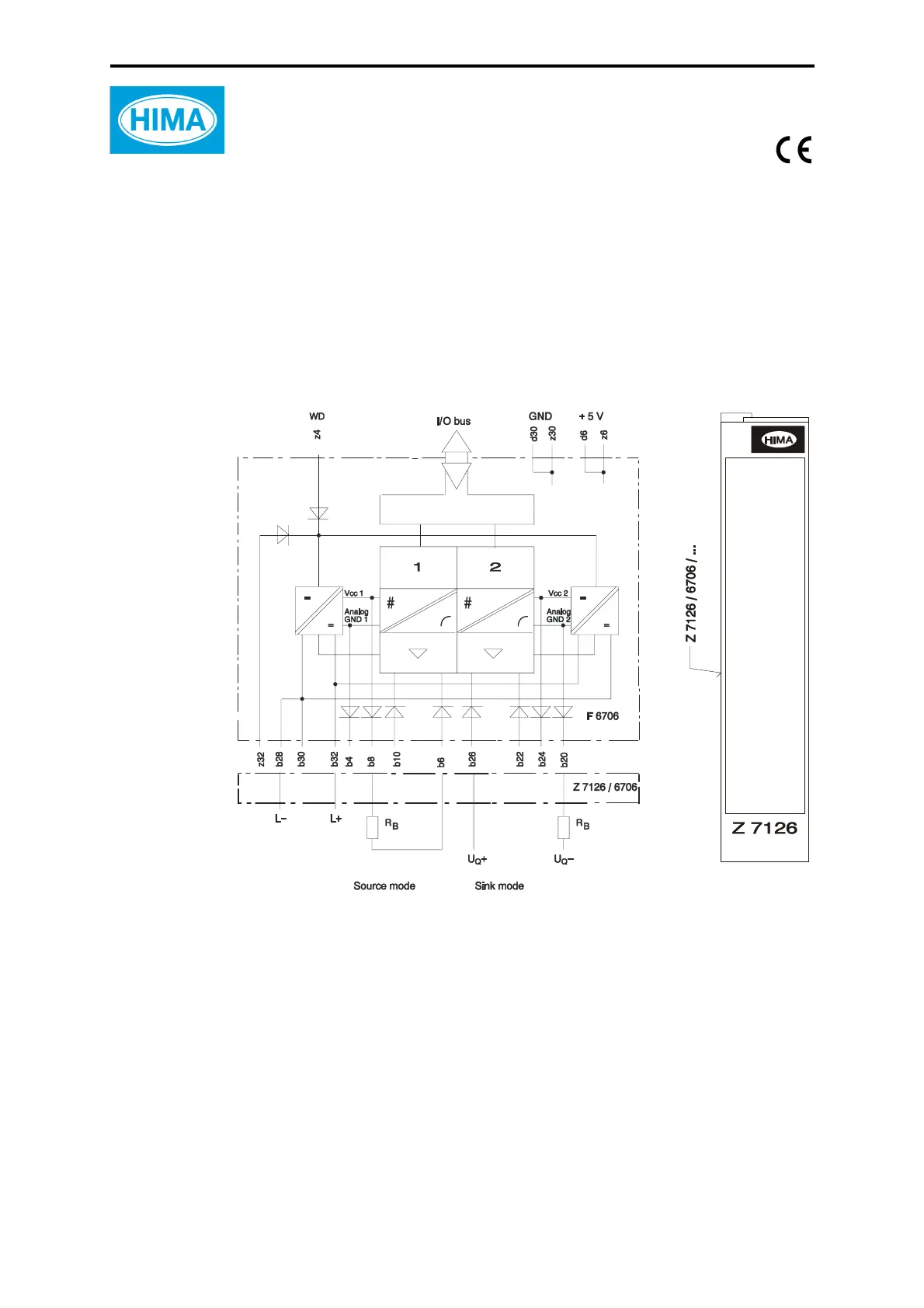

Figure 1: Block diagram and front cable plug
Resolution 12 bits (4095 steps)
0 = 0 mA, 3840 = 20 mA, 4095 = 21.3 mA
Burden R
B
source mode ≤ 750 Ω incl. line resistance to the burden
pins b8-b6 or b24-b26
sink mode
≤ (U
Q
- 5 V) / 21.3 mA
U
Q
= source voltage
pins b4-b6 or b20-b26
Basis error
≤ 0.1 % (20 μA) at 25 °C
Operating error
≤ 0.4 % at 0...+60 °C
Front cable plug
Block diagram
