HIMA H41q - F 3222: 8-Channel Input Module

F 3222 (0524)
All rights reserved. Equipment subject to change without notice: 183
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 3222
F 3222: 8-channel input module
• for proximity switches according to EN 60947-5-6 (NAMUR)
• with safety isolation
• with feeding of the proximity switches

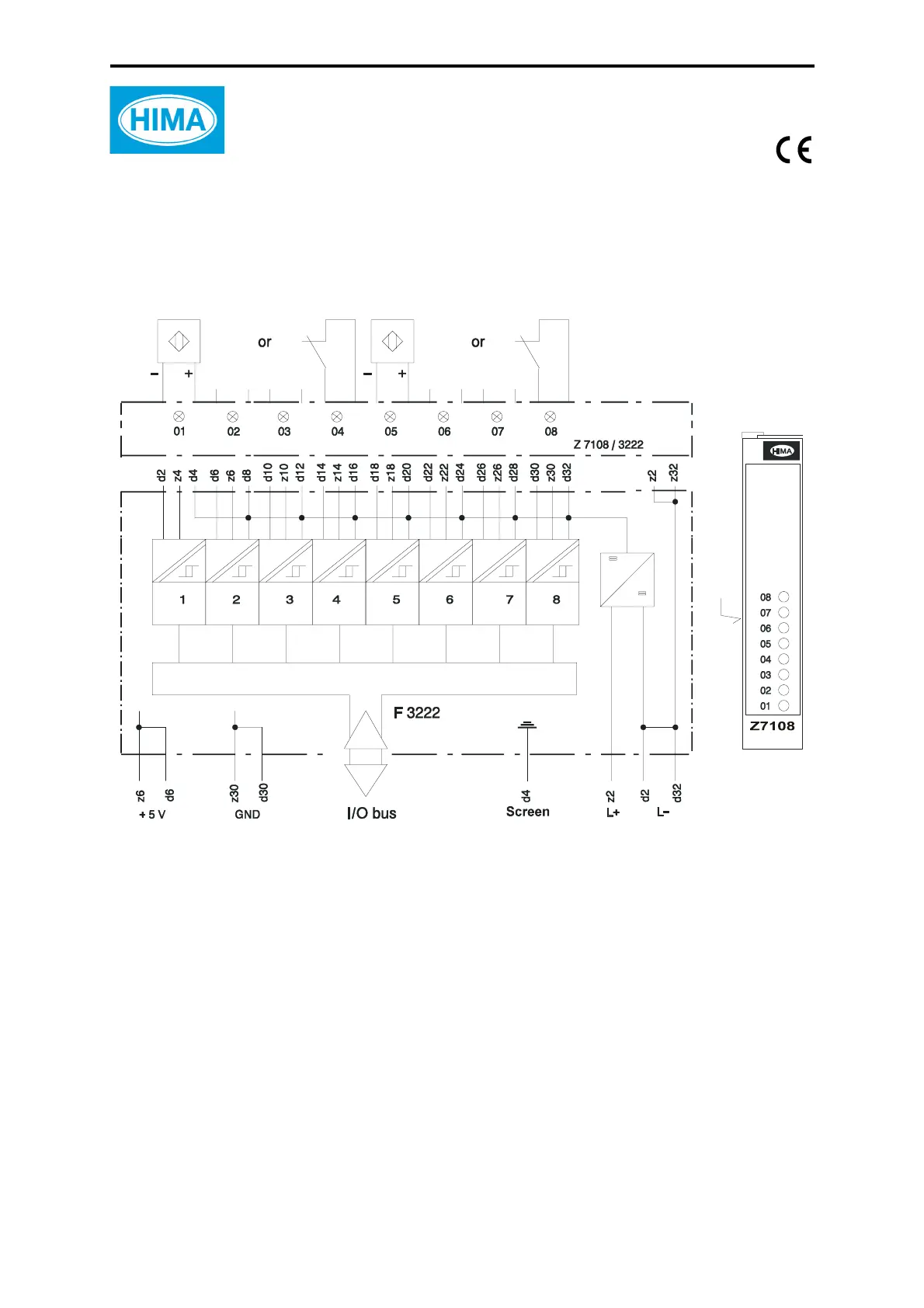

Figure 1: Block diagram and front cable plug
Switching point 1.65 mA ± 0.2 mA
Switching current difference approx. 0.3 mA
Switching time approx. 10 ms
Sensor supply 7.7...9 V
Space requirement 4 SU
Operating data 5 VDC / 40 mA
24 VDC / 75 mA
