F 6216A (0541)
All rights reserved. Equipment subject to change without notice: 285
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 6216A
F 6216A: 8-channel analog input module
with transmitter supply
• for transmitters in two-wire technique 4...20 mA
• Pt 100 inputs, current inputs 0/4...20 mA
• with safety isolation to the plant and electrical isolation between the inputs
• resolution: 12 bits
• transmitter supply with safety isolation

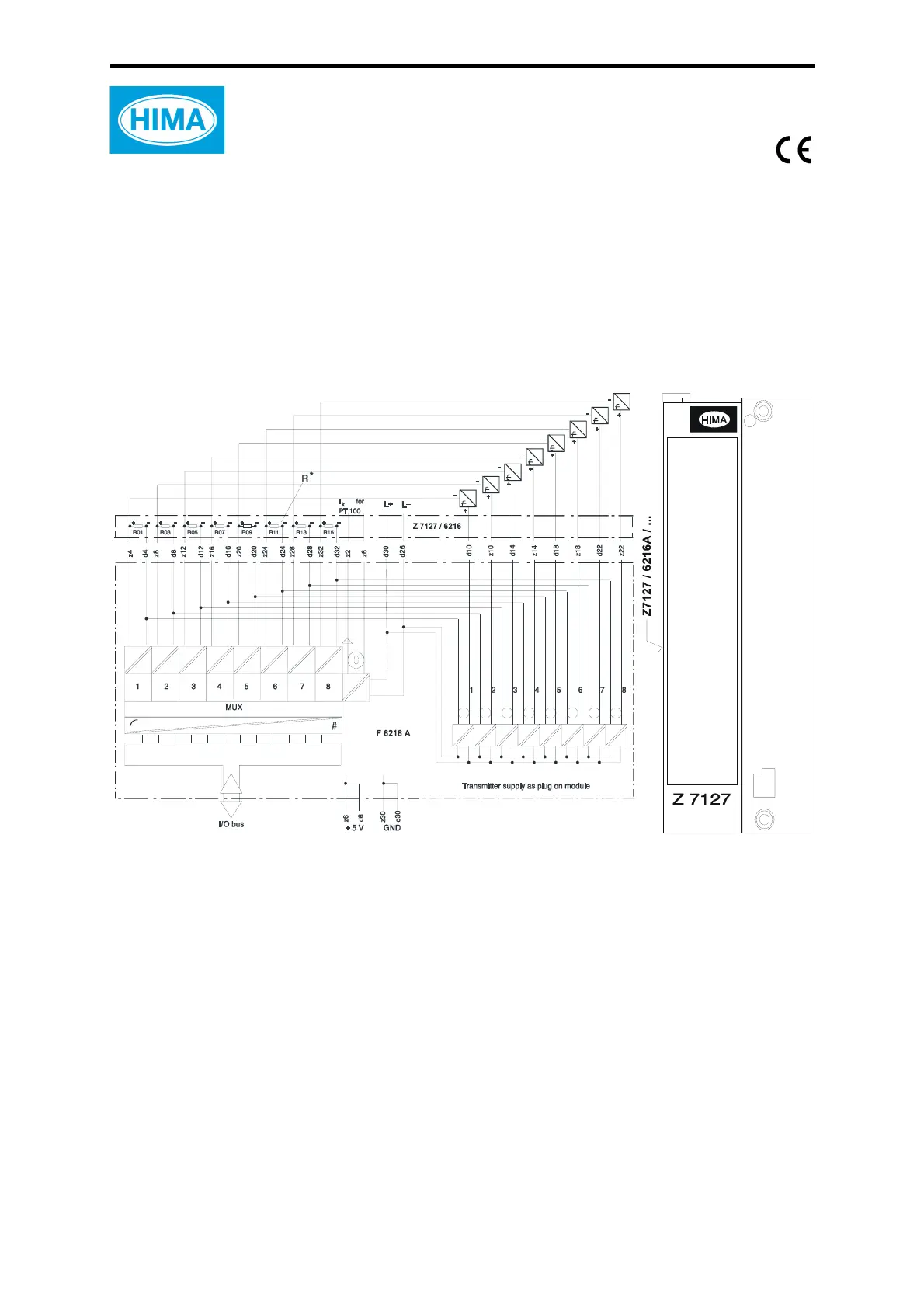

Figure 1: Block diagram and front cable plug
Analog input module:
Input voltage 0...1.06 V (approx. 6 % overflow)
Digital values 0 mA = 0, 20 mA = 3840, 21.3 mA = 4095
R*: Shunt with 50
Ω; 0.05 %; 0.125 W;
current input T<10 ppm/K; part-no: 00 0710500
Input resistance min. 1 M
Ω
Time const. input filter approx. 2.2 ms
Conversion time max. 4 ms for 8 channels
Basis error 0.2 % at 25 °C (of upper range value)
Operating error 0.4 % at 0...+60 °C (of upper range value)
Electric strength 200 V against Analog GND
I
k
for PT 100 2.5 mA
Space requirement 8 SU
Operating data 5 VDC / 100 mA, 24 VDC / 590 mA
Block diagram
Front cable plug
