B 9302 (0507)
All rights reserved. Equipment subject to change without notice: 135
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
B 9302
B 9302: Assembly kit
I/O subrack, 4 units high

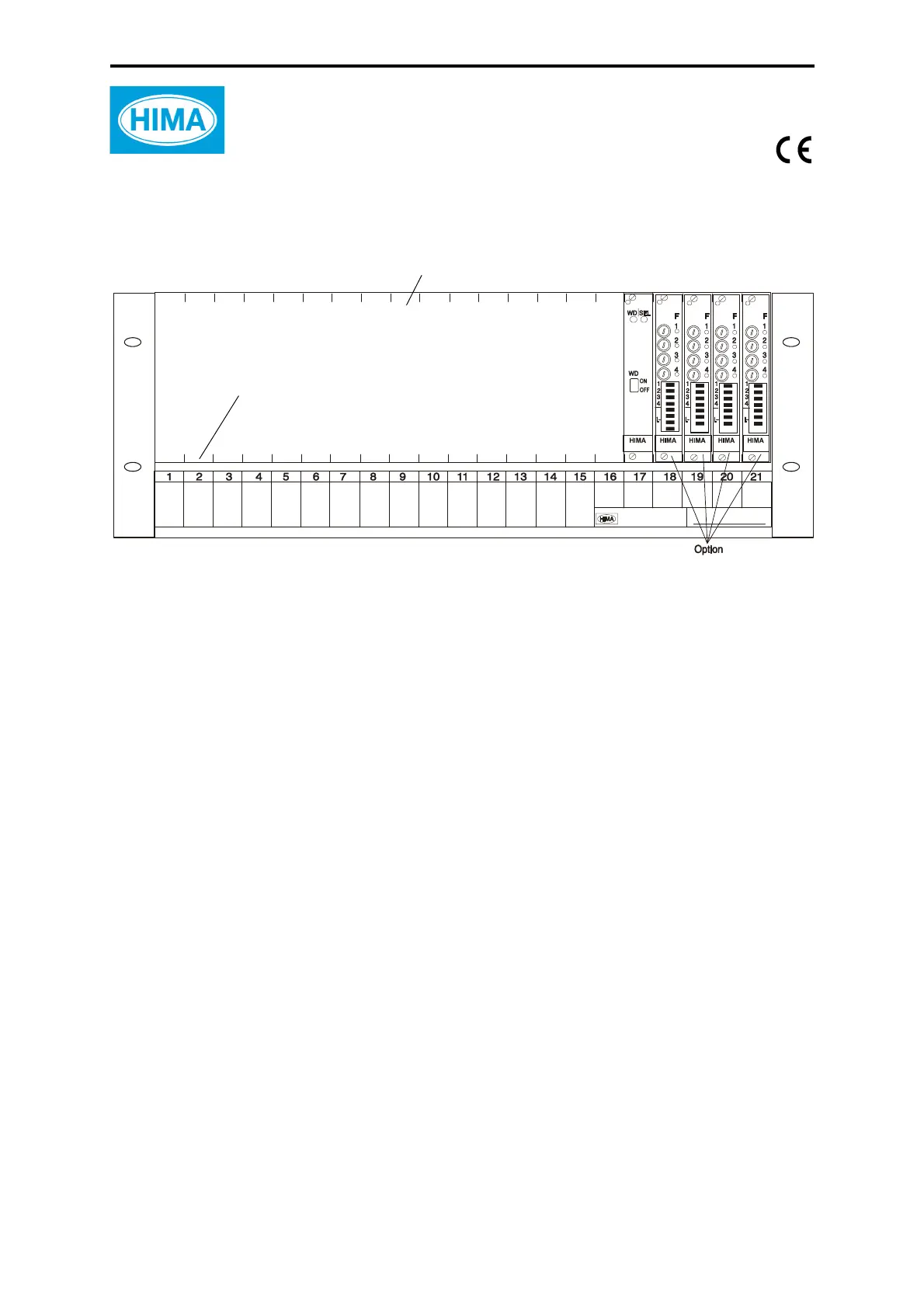

Figure 1: Side view
1 Parts of the B 9302 assembly kit
• 1 x K 1406 I/O subrack, 4 units high, 19 inch, with integrated cable tray, with a hinged
receptacle for the lable
• 1 x F 7553 coupling module (in slot 17)
• 1 x BV 7032 flat cable, length is depending on the order. The standards are B 9302 with
0.5 m cable. Assembly kit B 9302 with choosable cable length on demand. Total bus
length is maximum 12 m.
The slots 1 through 16 of the rack K 1406 are reserved for I/O modules.
Modules for option (separate order):
• 1...4 x F 7133 4-channel power distribution with fuses (slots 18...21) to fuse and distri-
bute L+ (EL+) and L-.
The fuse monitoring on the current distribution modules are internally switched in series. A cor-
responding fault signal is served via a neutral contact. The fault contact of a not installed cur-
rent distribution module is bypassed by a jumper.
F7553
F7553
F7133
F7133
F7133
F7133
F7133
F7133
F7133
F7133
B9302
16 I/O modules
Earth bar (covered),
1 x Faston 6.3 x 0.8 mm for each slot
K 1406
