HIMA H41q User Manual

F 3221 (0524)
All rights reserved. Equipment subject to change without notice: 181
HIMA Paul Hildebrandt GmbH + Co KG, P.O. Box 1261, 68777 Brühl
F 3221
F 3221: 16-channel input module
• for sensors or 1-signals with safety isolation
• non-interacting

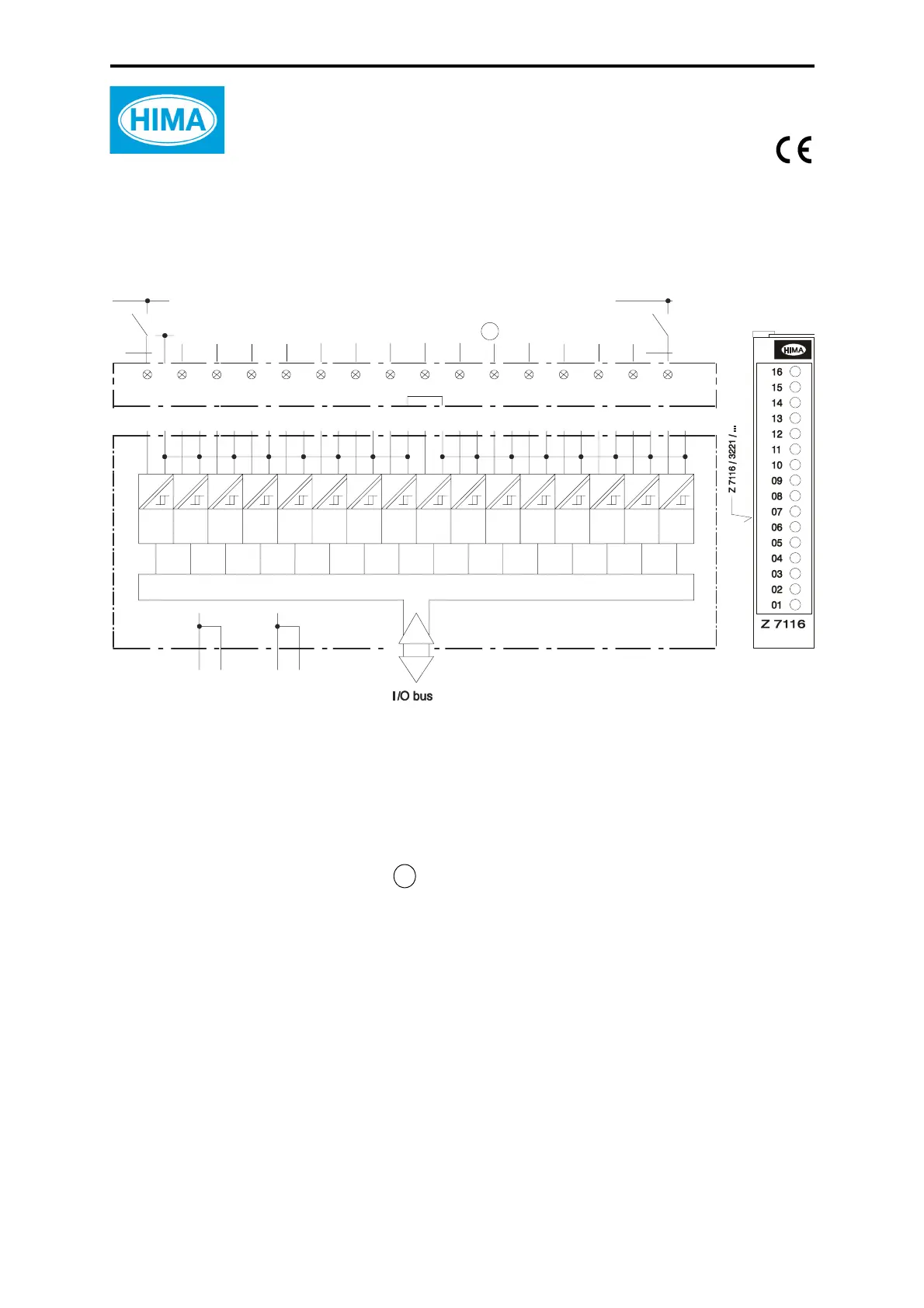

Figure 1: Block diagram and front cable plug
Inputs 1-signal, 8 mA (incl. cable plug)
or mechanical contact 24 V
R non-interacting
Switching time typ.10 ms
Space requirement 4 SU
Operating data 5 VDC / 70 mA
24 VDC / 130 mA
L+
4F
Z7116 / 3221
14
1006
02
13
0905
01
16
1208
04
15
1107
03
R
L+
L-
4F
d2 d4 d6 d8 d10 d12 d14 d16 d18 d20 d22 d24 d26 d28 d30 d32 z18 z20 z22 z24 z26 z28 z30 z32 z2 z4 z6 z8 z10 z12 z14 z16
123456 78 9101112 151613 14
F 3221
z6
d6
z30
d30
+5 V GND
Front
cable plug
