F 3333 (0602)
236

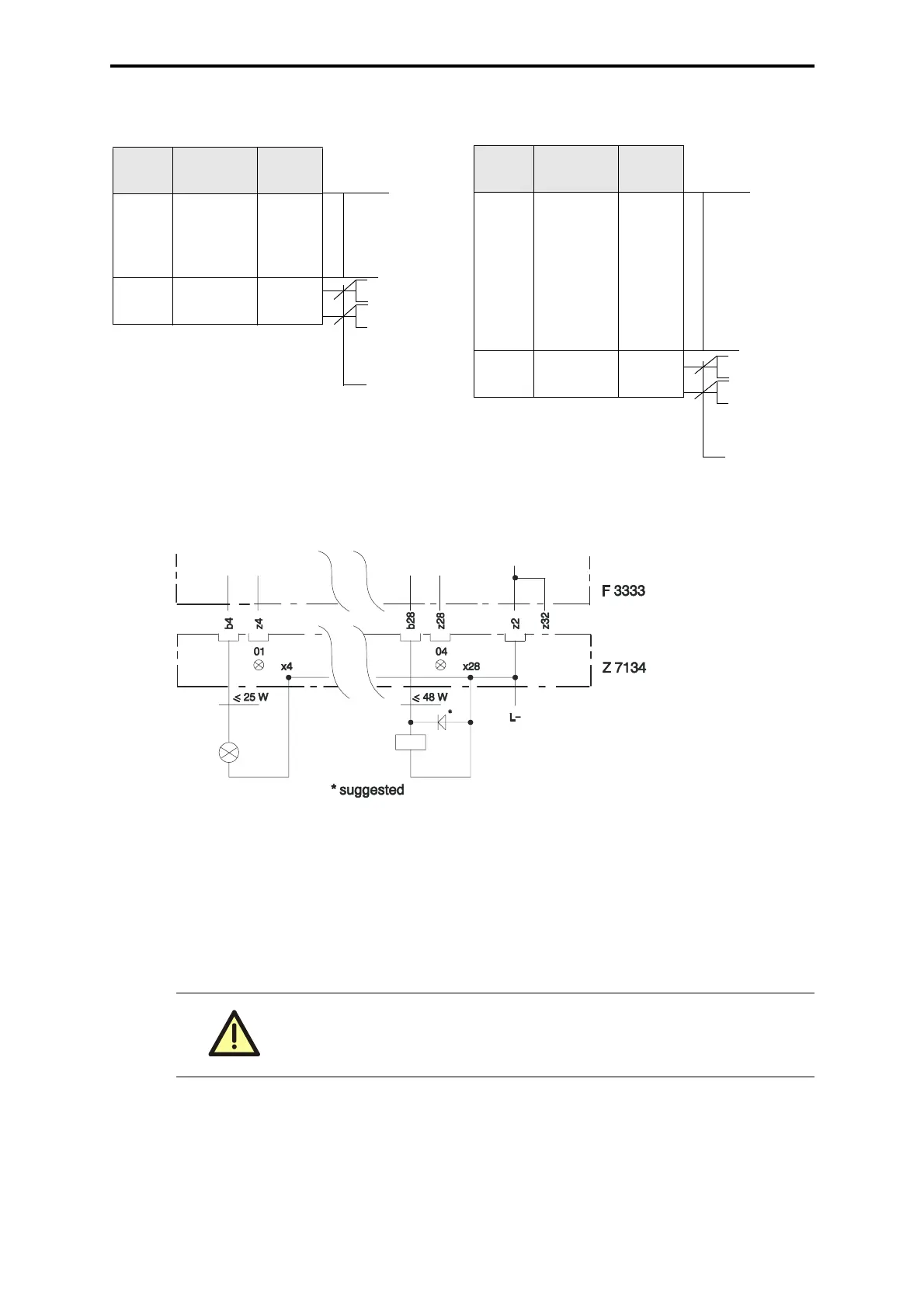

Figure 2: Lead markings of the cable plugs
Figure 3: 2-pole connection
Planning notes
– at the same time only 2 channels may be operated with the max. load (2 A). If the load is
up to max. 1 A, all channels may be operated at the same time
– max. 10 output modules with nominal load may be used in one I/O subrack
– can be used in parallel without external diodes
The connection of capacitive loads is not permitted. A length of the
connection line up to 3 km is possible. The line capacity, however, is
limited to a maximum of 1
μF.
Lead marking of the cable plug
Z 7134 / 3333 / C..
Chan-
nel
Connec-
tion
Color
1
2
3
4
b4
b8
b24
b28
WH
BN
GN
YE
L–
L+
z2
z12
BK
RD
Cable
LiYY 4 x
1.5 mm
2
Flat pin
plug
2.8 x
0.8 mm
2
q = 1 mm
2
l = 750 mm
Lead marking of the cable plug
Z 7134 / 3333 / C.. / P2
2-pole connection
Chan-
nel
Connec-
tion
Color
1
2
3
4
b4
x4
b8
x8
b24
x24
b28
x28
BN
WH
YE
GN
PK
GY
RD
BK
L–
L+
z2
z12
BK
RD
Cable
LiYY 8 x
1.5 mm
2
Flat pin
plug
2.8 x
0.8 mm
2
q = 1 mm
2
l = 750 mm
