F 6221 (0625)

311

2.1.3 Variant A1: Mono supply, mono current measuring, wiring via cable

• Mono operation with transmitter supply for channels 1 to 6

• For channels 7 and 8 see note below

• Cable type: Z 7063/6221/ExCn/ITI + Z 7025/3325/ExCx

part number 93 6221 101

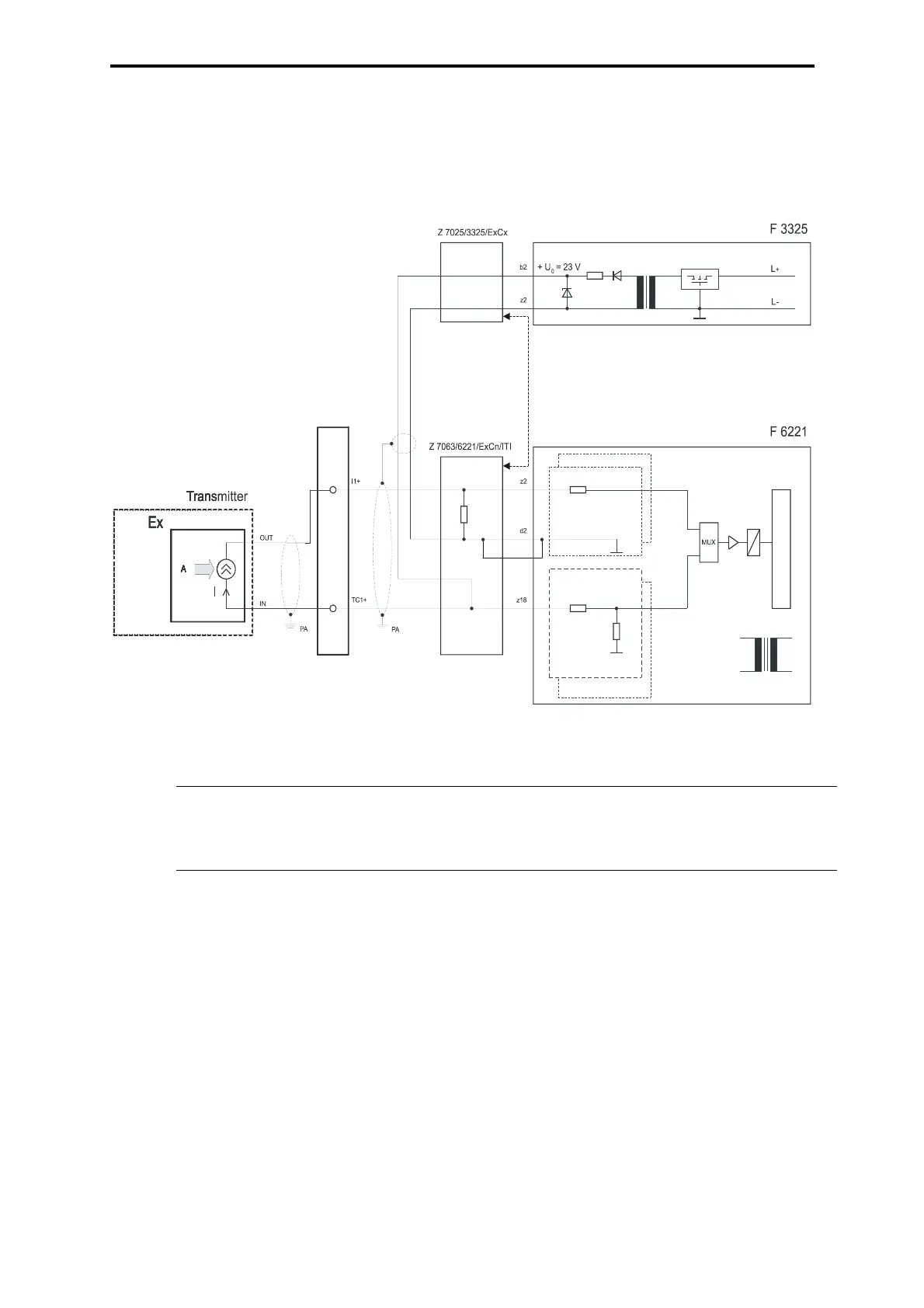

Figure 2: Mono supply, mono current measuring, wiring via cable

Note In this wiring variant, the first six channels of the F 3325 module are

always used for passive transmitters. Channels 7 and 8 are used for

active transmitters (see Variant A2).

93 6221 101

d18



TC1+

I1+

TC6+

I6+

I-

I f(A)

max. length

10 m

Terminal

Cable plug

transm.

Supply module

Not safety-related EEX transmitter supply module

Safety-related EEX measuring module

Cable plug

measuring module

physical

variable
