F 8628X (0650)
422

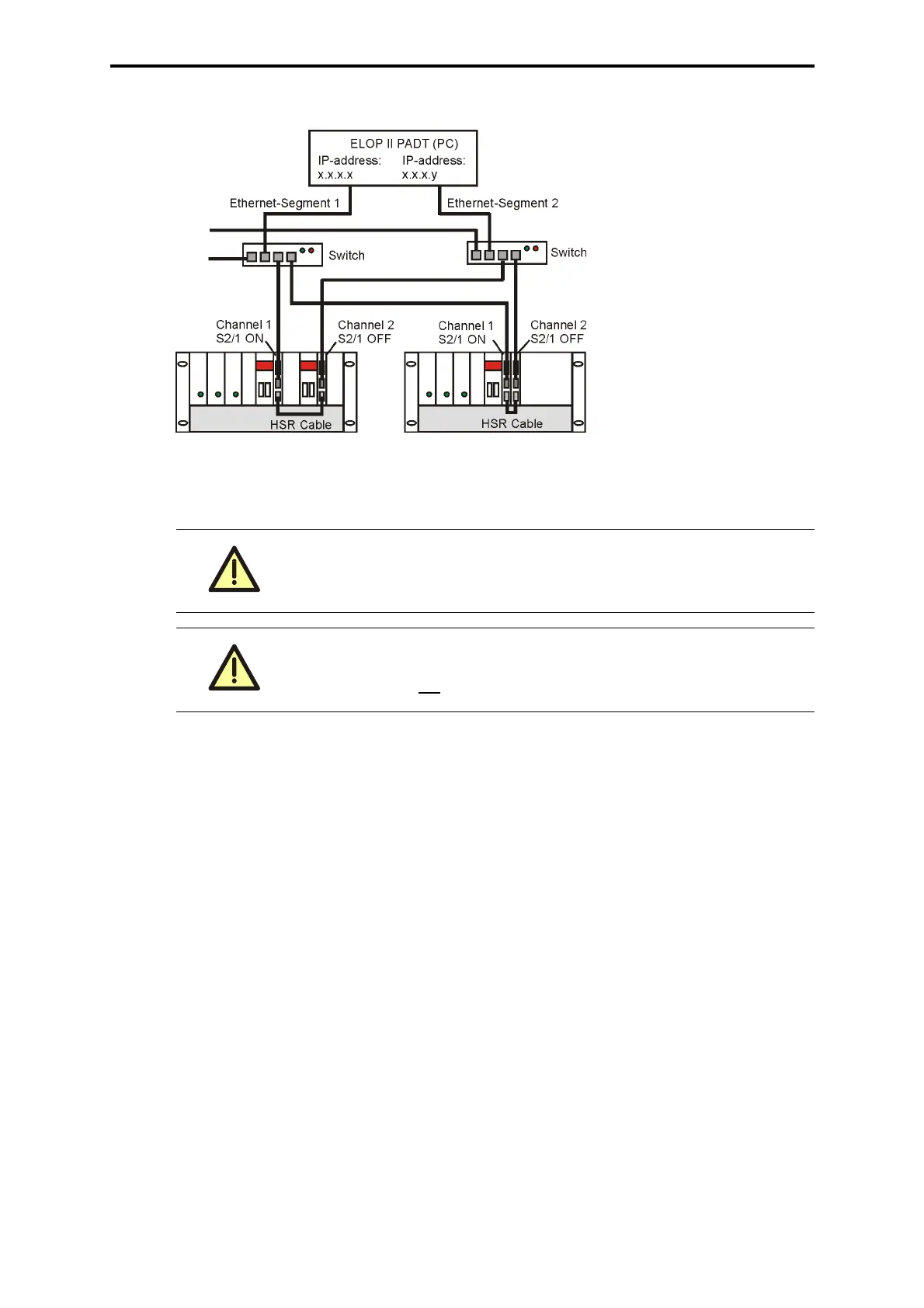

5.2.5.3 ELOP II TCP connections to H41q/H51q controllers via a redundant network
The PADT can establish a connection to the H41q/H51q systems via ethernet segment 1 or
ethernet segment 2.
A routing entry for each ethernet module of the PADT is required (see also chapter 5.2.6).
Others possibilities of the ELOP II TCP wiring shown above are
not authorized and can cause problems!
Only communication modules of the same type may be connected to
one another using the HSR cable (the connection between F 8627X
and F 8628X is not
permitted).
