HIMA H41q User Manual

F 8628X (0650)
428
7.3.2 Example 2
In this example the BOOL variables in the export area 0 (on the F865x) start with the BUSCOM
address 0 and mapped to the memory area EV (on the F 8628X) with the identity number 0.
The identity numbers of the BOOL variables in memory area EV are in ascending order up to
the last BOOL variable (identity number 100) from export area 0.
In this example, the
BOOL variables in export area 1 (on the F 865x) start with BUSCOM ad-
dress 4096 and are mapped to memory area EV (on the F 8628X) beginning with identity num-
ber 101, which follows the last identity number of the BOOL variables (i.e. 100).
The identity numbers of the BOOL variables in memory area EV are in ascending order up to
the last BOOL variable 4196 from export area 1.

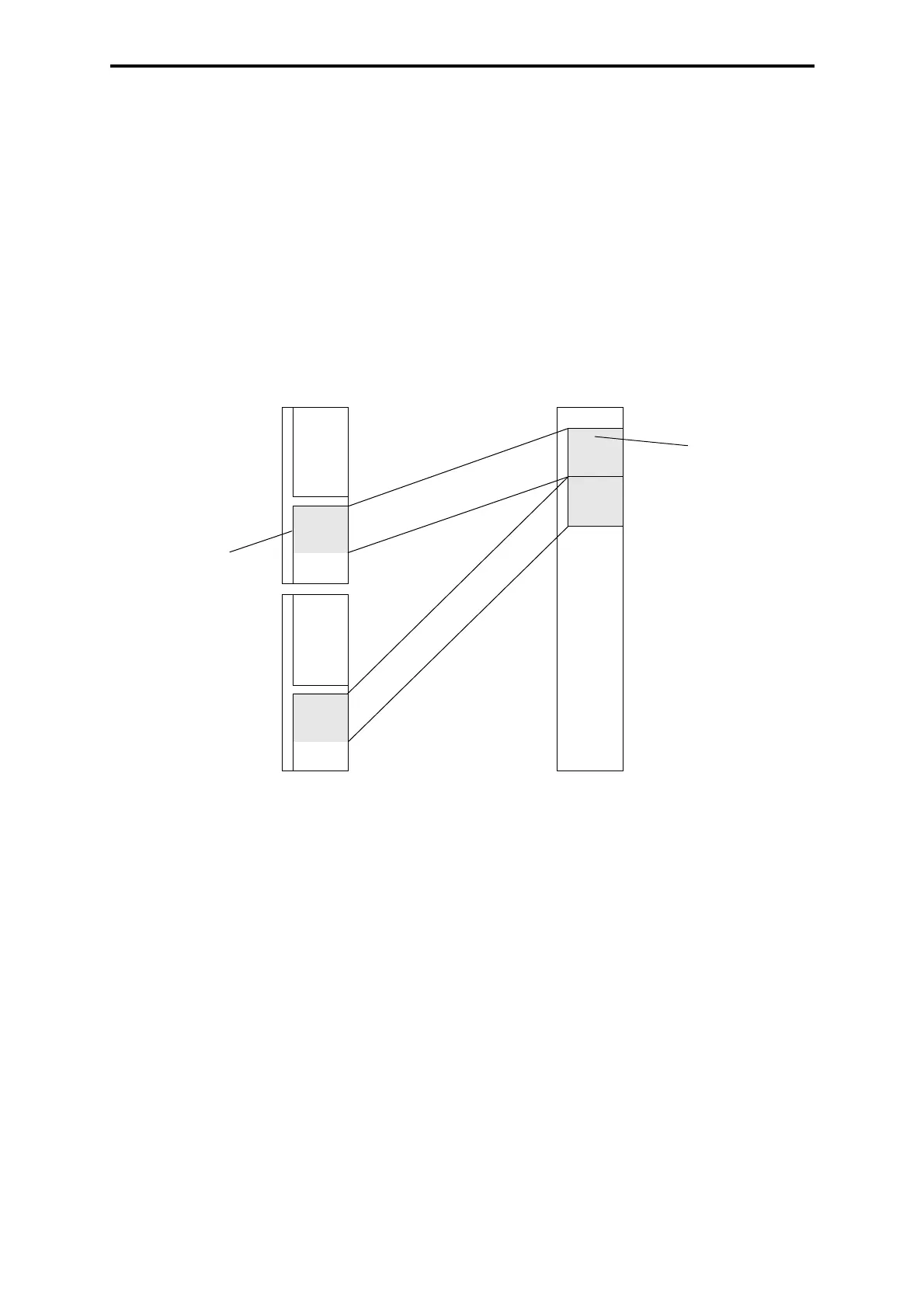

Figure 6: Mapping of the BOOL-variables from the export areas 0 and 1
0000
0100
4096
4196
bool
bool
BUSCOM address
EV-0000
EV-4096
bool
101
201
Identity number
ER-4096
ER-8191
ER-0000
ER-2047
100
bool
0
area 1
area 0
ER-0000
ER-2047
ER-4096
ER-8191
F865x
BUSCOM areas
Export area (EA)
memory area EV
for Export variables (EV)
F 8628X
