F 8628X (0650)
435
• 2nd window: start of the variables beginning with identity no. 200 (200 dec = 00C8
hex); number of variables: 150 (150 dec = 0096 hex).
From identity no. 200 to 349 there are Boolean variables which can be compressed
into bytes (150 / 8 = 18.75). A user data length of 19 bytes is generated. (offset by 1st
window, bytes 40 to 58)

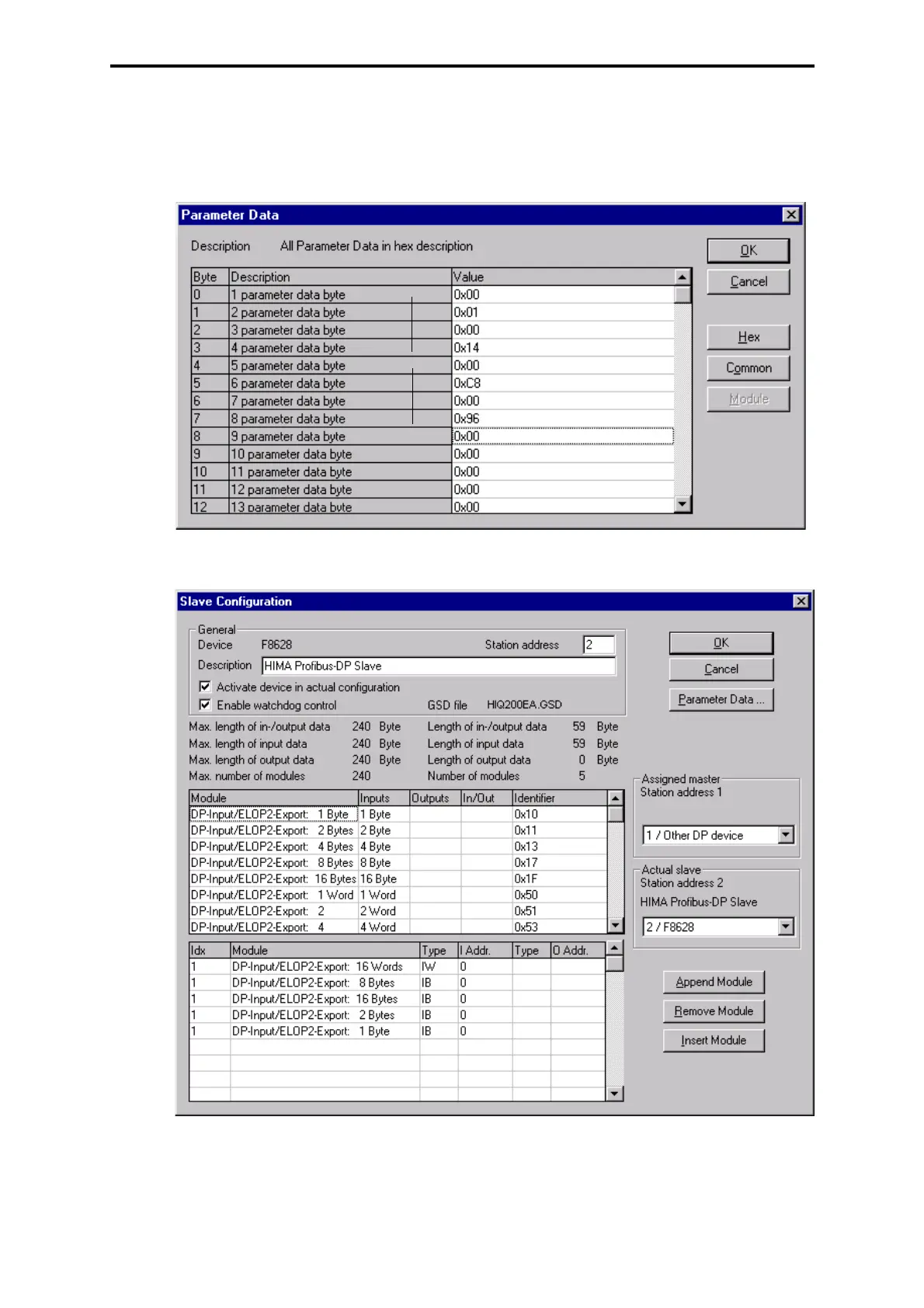

Figure 12:Example of address mapping for the export parameter data in the PROFIBUS-DP
master
Figure 13:Example of address mapping for the PROFIBUS-DP input telegram, user data length
of 59 bytes in 5 modules
begin of the Word variables in
hex data format 0x0001 = 1 dec
number of Word variables 20
0x0014 = 20 dec
1. window
2. window
begin of the Boolean variables in
hex data format 0x00C8 = 200 dec
number of Boolean variables 150
0x0096 = 150 dec
