HIMA H41q User Manual

H 7015A (0524)
478
Sockets and terminals on the Terminal Module H 7015A
Table 1: Sockets and terminals H 7015A

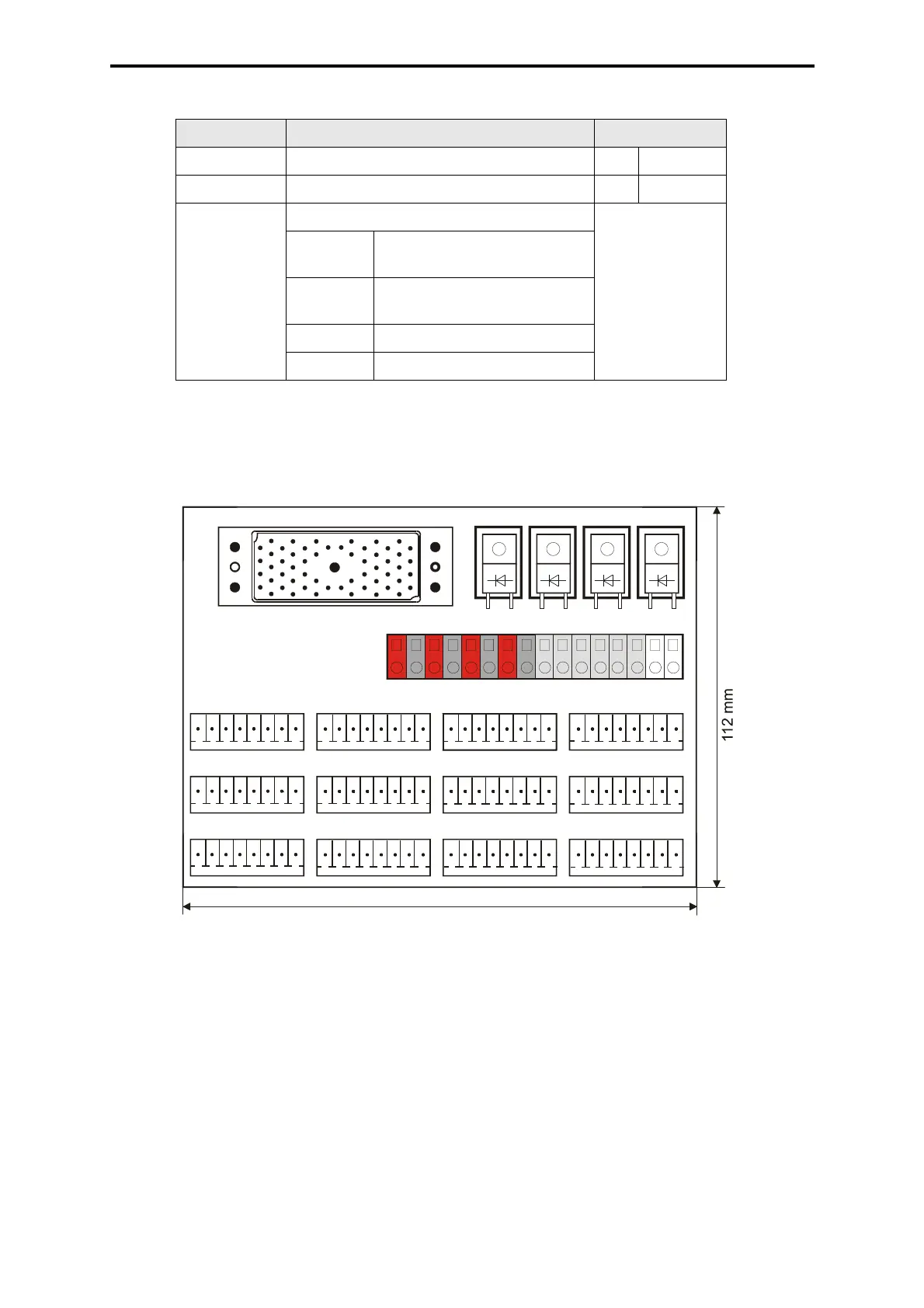

Mechanical design and dimensions of Terminal Module H 7015A
Figure 2: Mechanical design and dimensions of Terminal Module H 7015A
Designator Type Contact
E Vario-plug ELCO 8016 (Code 1-1) 1x 56-pin
A1...C32 Phoenix Headers *) 12x 8-pin
D Wago 739 1x 16-pin
1, 3, 5, 7 Supply contacts,
decoupled (red)
2, 4, 6, 8 Supply contacts,
not decoupled (black)
9 up to 14 Floating contacts (gray)
15, 16 Shield Y (white)
*) Accessories: Phoenix Combicon Connector FK-MCP 1,5/8-ST-3,81
Depth 105 mm with Vario-plug ELCO 8016
Mounting on 35 mm DIN-rail
Installation orientation horizontally or vertically
Installation clearance not necessary
146 mm
D1
D2 D3 D4
E
D
C1 9
17
25 C32
B1
9
17
25 B32
A1
9
17
25
A
32
12
356
7
8
4
9
11
10
12
13
14 YY
A
B
C
D
