H 7018 (0508)
490
Sockets and terminals on the Terminal Module H 7018
Table 1: Sockets and terminals H 7018
Mechanical design and dimensions of Terminal Module H 7018

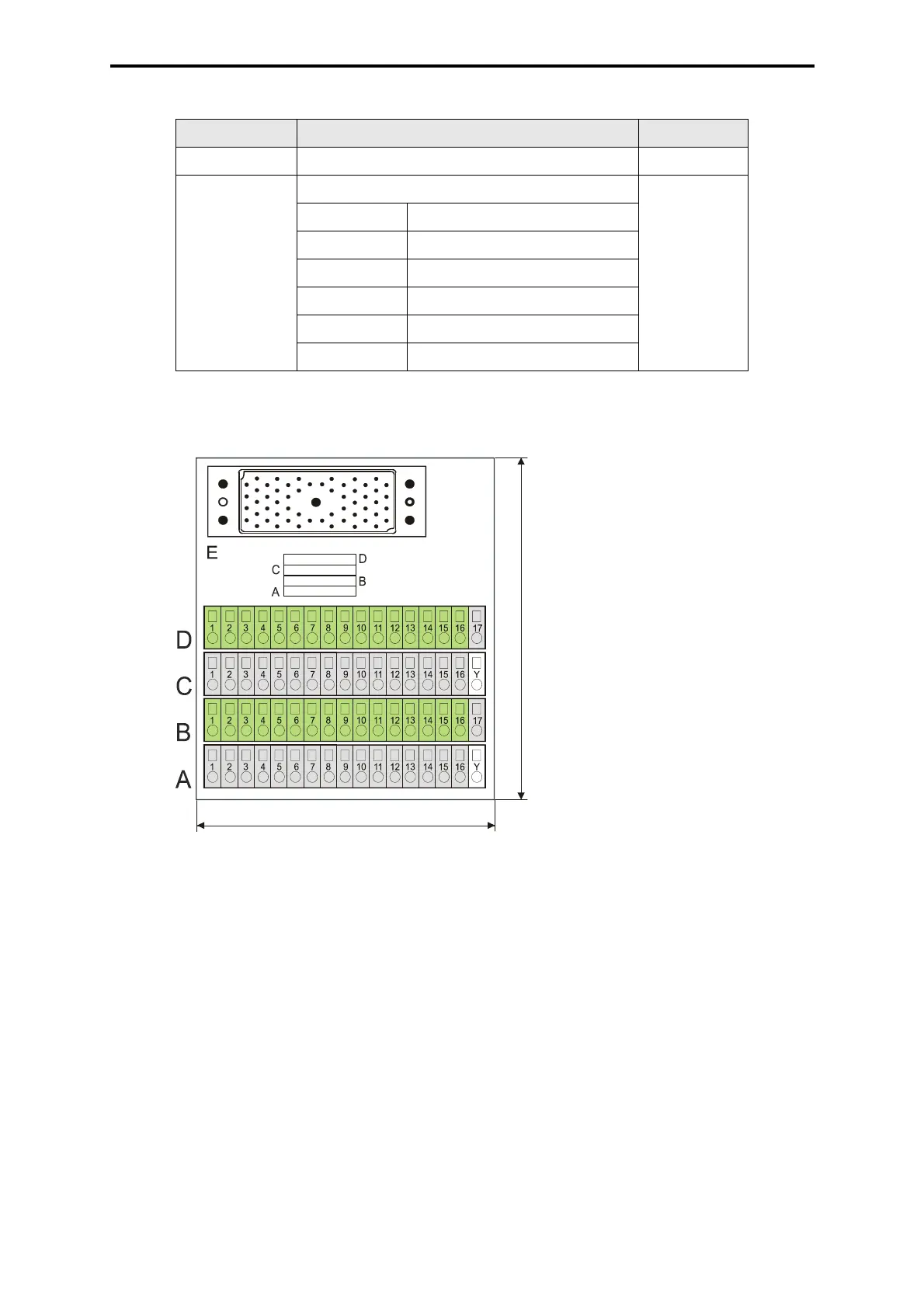

Figure 2: Mechanical design and dimensions of Terminal Module H 7018
Designator Type Contact
E Vario-ELCO 8016 (Code 1-1) 1x 56-pole
A, B, C, D WAGO 739 4x 17-pole
A1 up to A16 I/O channels to field (gray)
B1 up to B16 Reference potential (green)
C1 up to C16 I/O channels to field (gray)
D1 up to D16 Reference potential (green)
A 17, C 17 Shield Y (white)
B 17, D 17 Floating contacts (gray)
Depth 105 mm with Vario-plug ELCO 8016
Mounting on 35 mm DIN-rail
Installation orientation horizontally or vertically
Installation clearance dependent on cable routing from ELCO 8016
112 mm
92 mm
