4-48
MAN0448_Issue 13_01-2010 5704 Control System
005704-M-5001 A03249
CHAPTER 4 - INSTALLATION INSTRUCTIONS

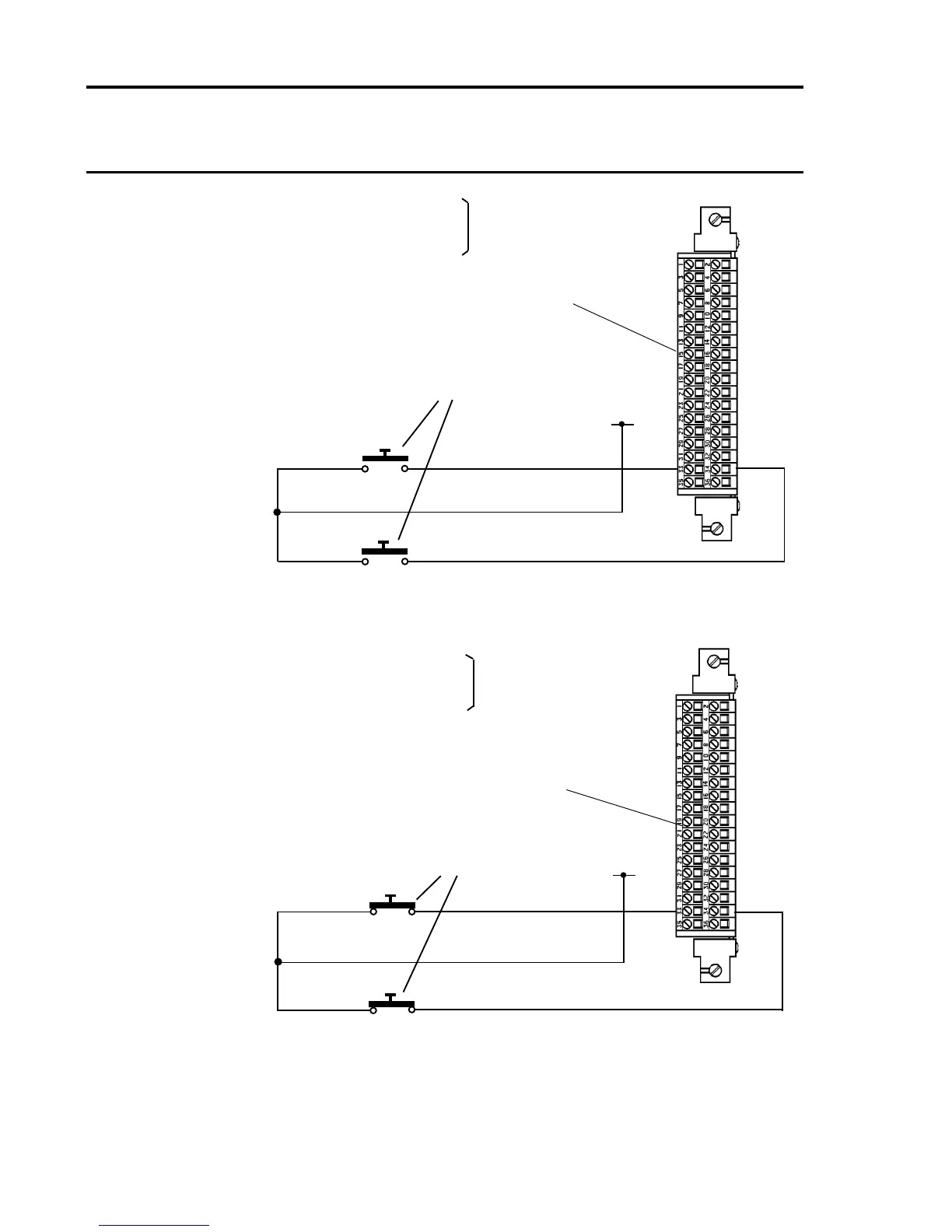

Active High Remote Input Connected via Normally Open Voltage
Free Contact to +24V
Remote Reset
+24V
Remote Inhibit
INHIBIT
RESET
Normally Closed Contact
Congured for active
low remote inputs
Quad Relay Interface Card
05704-A-0121
Four Channel Control Card
05704-A-0145 4 - 20mA
05704-A-0144 Catalytic
33
Active Low Remote Input Connected via Normally Closed
Voltage Free Contact to +24V
34
+24V
(18V to 32V)
Remote Reset
+24V
Remote Inhibit
Congured for active
high remote inputs
Quad Relay Interface Card
05704-A-0121
Normally Open Contact
INHIBIT
RESET
Four Channel Control Card
05704-A-0145 4 - 20mA
05704-A-0144 Catalytic
33
+24V
(18V to 32V)
34
