CHAPTER 8 - SPECIFICATION
Hinged: Left hand side.
Lock: Right hand side.
Colour: RAL 7015 slate grey.
Mounting Bracket Holes: 10mm (0.4'') diameter.
Rack Mounting: Universal19inchprole.
19 inch width and half 19 inch width.
Earthing Points: Main cabinet M6.
Door M5.
Mounting Plate: Galvanised steel.
7. RACK ASSEMBLIES
Rack Assemblies Contains: Engineering Card.
DC Input Card.
Interconnect Cable (front access rack
only).
Material: Galvanised steel.
Earthing Point: M5 stud.
Mounting: Universal 19 inch and half width (19
inch mounting).
Power Consumption: 1.5W.
Supply Voltage: 18 to 32V dc.

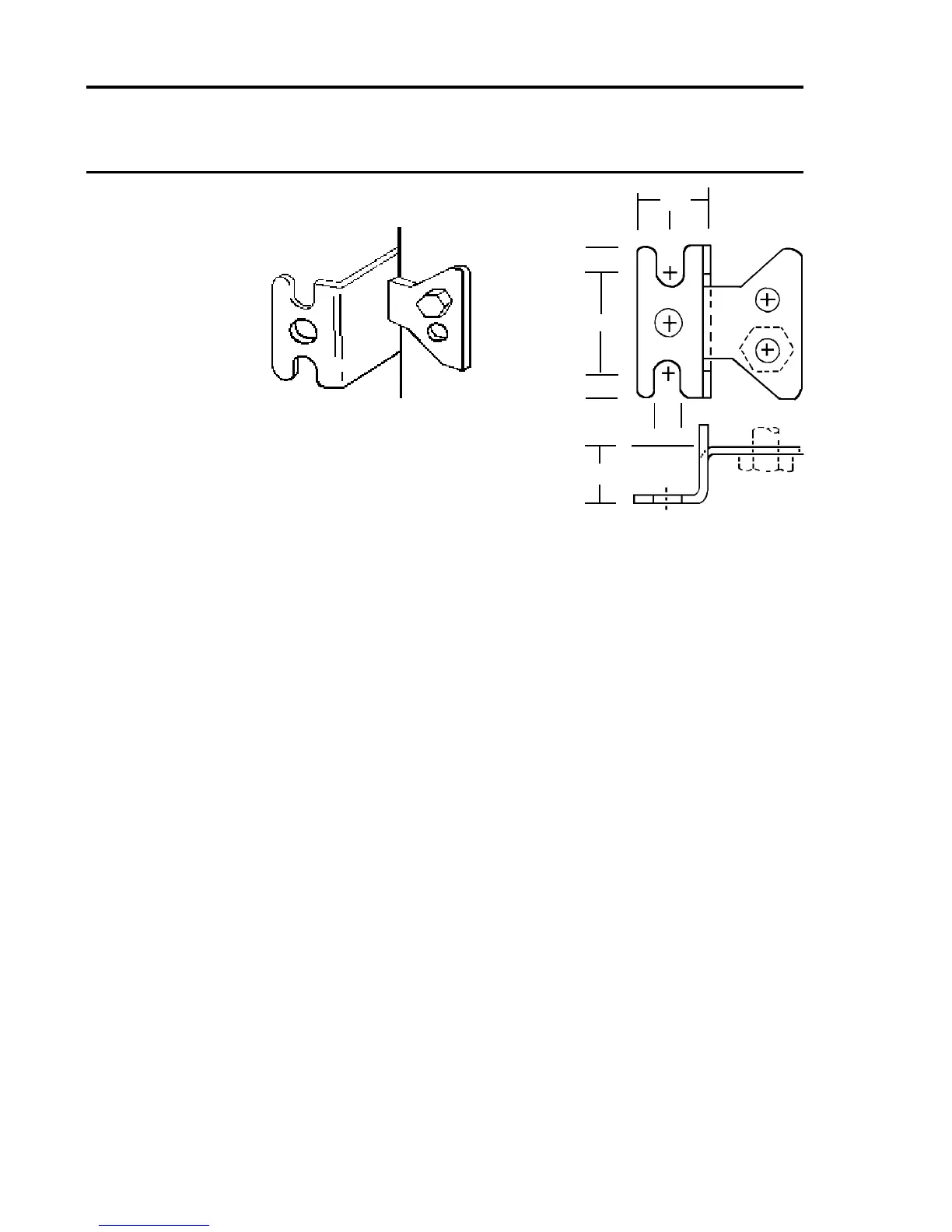

Cabinet Mounting Brackets
All dimension shown in mm.
9
10.2
36
9
27
15
10

Honeywell 5704 Specifications

General

Brand	Honeywell
Model	5704
Category	Control Systems
Language	English
