CHAPTER 8 - SPECIFICATION
6. CABINET ASSEMBLIES
Material: Mild steel.
Weight: 8-way: 10.0kg
16-way: 13.5kg.
Gland Entries: Knock-out.
8-way 2 x M25 6 x PG11
8 x M20 2 x PG16
16-way 3 x M25 10 x PG11
16 x M20 4 x PG16

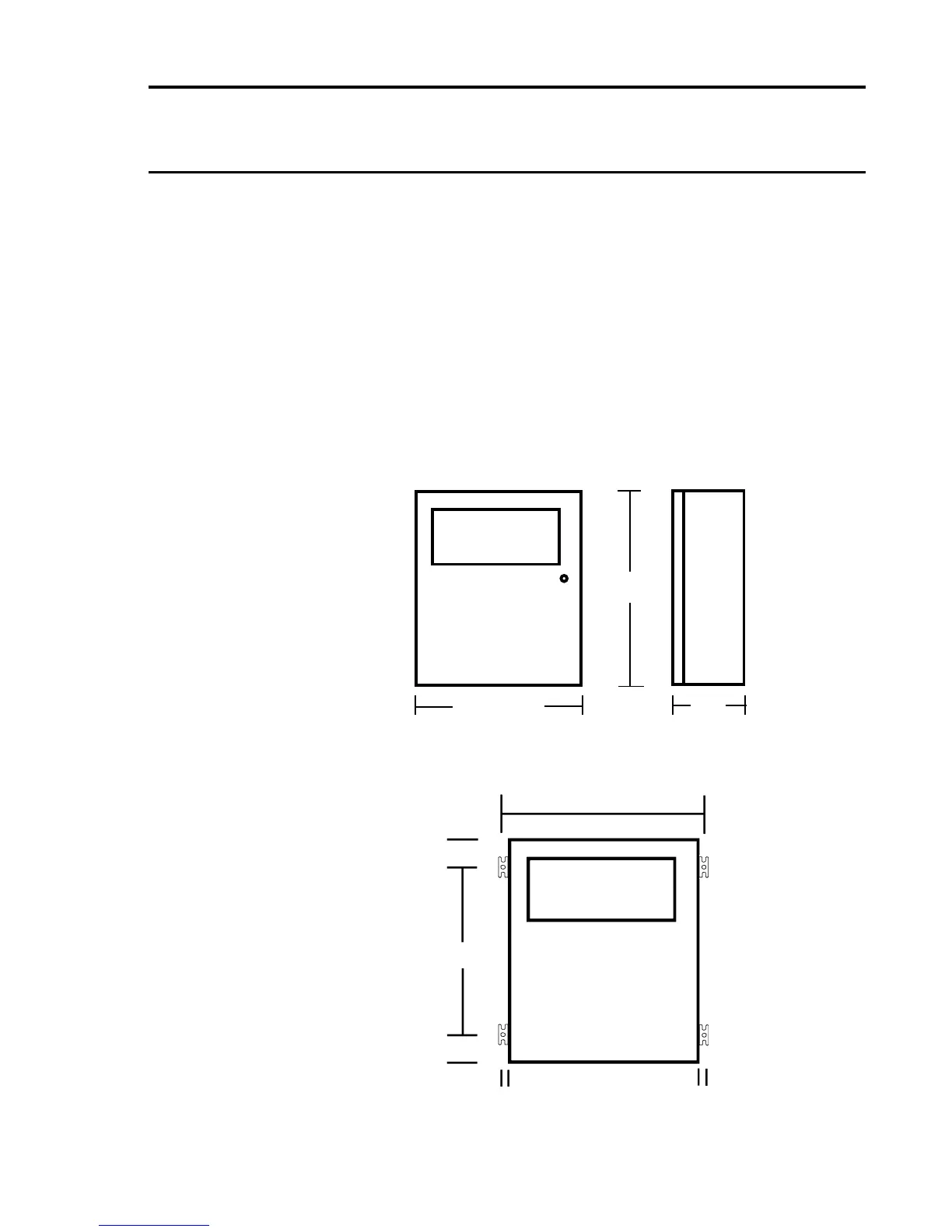

Cabinet Dimensions:
100
15
100
430
8 way 367mm
16 way 570mm
15
All dimension
shown in mm.
Wall Mounting Bracket Hole Locations
630
8 way 337
16 way 540
All dimension
shown in mm.
268
